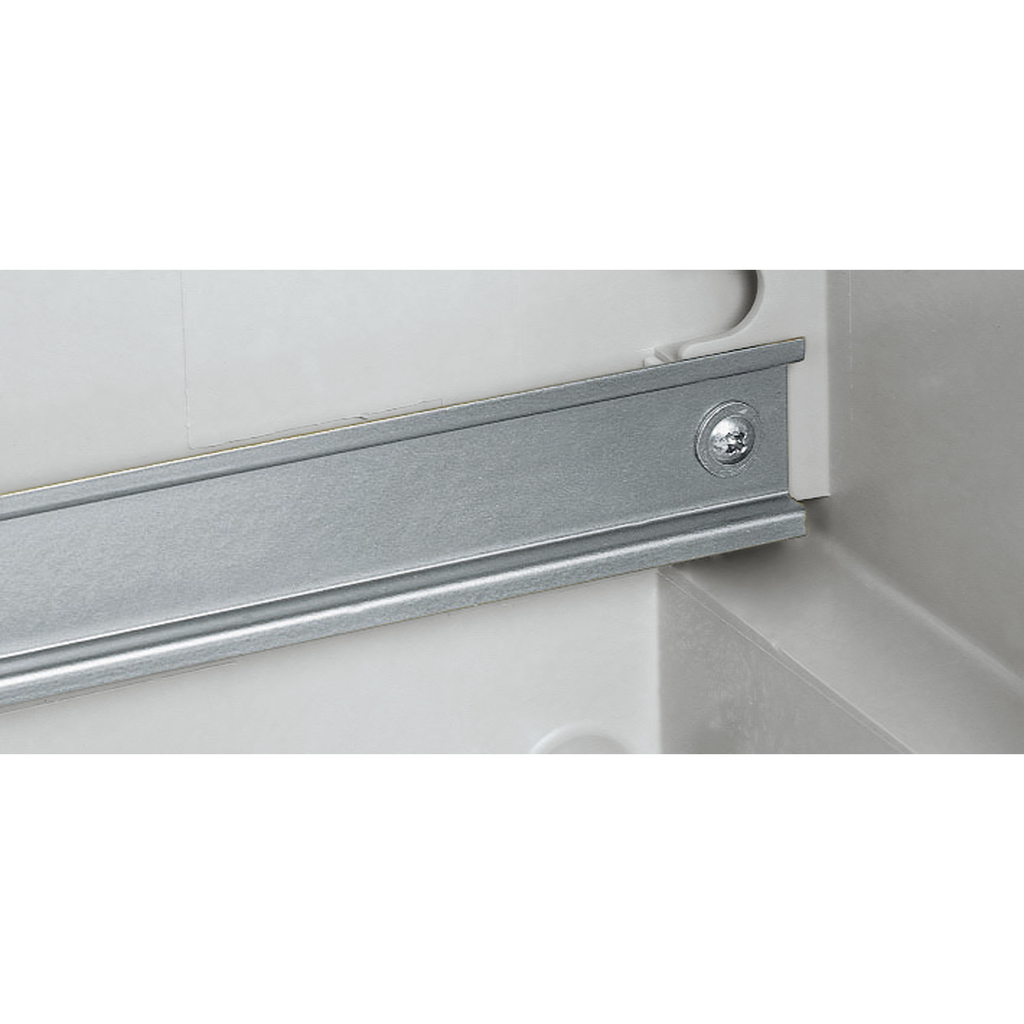

NSYCS500PLM
35mm symetrical DIN rail -L 480mm for using with NSYTCSxx in PLM75
Specifications
| Country of Origin | Spain |
|---|---|
| Enclosure Nominal Dimensions | - |
| Mounting Support | plastic nut |
| Range Compatibility | Thalassa Thalassa PLM |
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | rail |
| Device Composition | 1 rail |
| Range | PanelSeT |
| Type Of Rail | symmetrical DIN |
| Quantity Per Set | set of 2 |
| Device Application | multi-purpose |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202003EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Adjustment | DIN rail adjustment in height, pitch 25 mm |
| Surface Finish | zinc coated |
| Thickness | 1 mm |
| Fixing Mode | by fixing element - rear of enclosure |
| Length | 510 mm |
| Width | 7.2 mm |
| Height | 35 mm |
| Material | steel |
| Warranty | 18 months |
