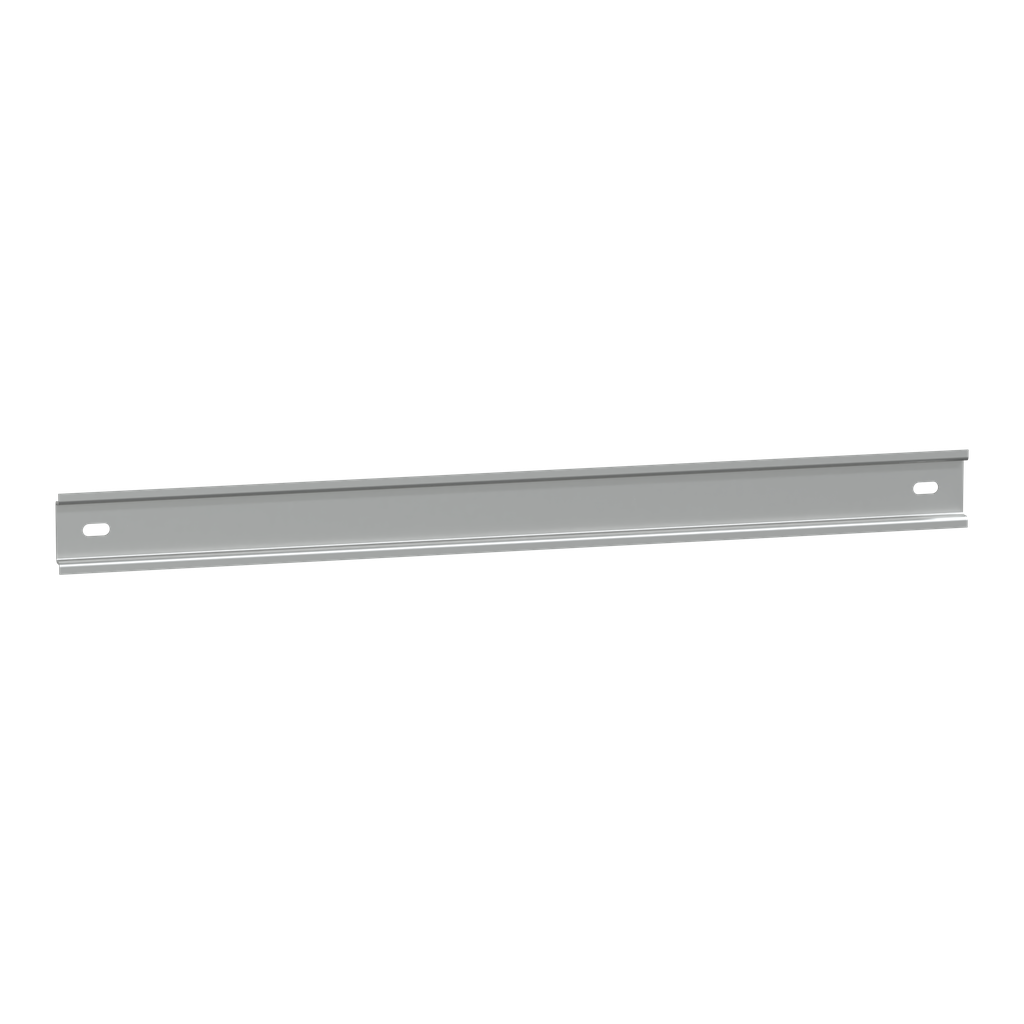

NSYCS400PLM
35mm symetrical DIN rail -L 380mm for using with NSYTCSxx in PLM54 and 64
Thalassa PLM 35mm symetrical DIN rail. L is 280 mm. For using with NSYTCSxx in PLM43. Fixing by element rear of enclosure. Plastic nut mounting support. DIN rail adjustment in height, pitch 25 mm. Steel made, zinc coated surface finish.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Spain |
|---|---|
| Enclosure Nominal Dimensions | - |
| Mounting Support | plastic nut |
| Range Compatibility | Thalassa Thalassa PLM |
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | rail |
| Device Composition | 1 rail |
| Range | PanelSeT |
| Type Of Rail | symmetrical DIN |
| Quantity Per Set | set of 2 |
| Device Application | multi-purpose |
| Adjustment | DIN rail adjustment in height, pitch 25 mm |
| Surface Finish | zinc coated |
| Thickness | 1 mm |
| Fixing Mode | by fixing element - rear of enclosure |
| Length | 410 mm |
| Width | 7.2 mm |
| Height | 35 mm |
| Material | steel |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202003EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
