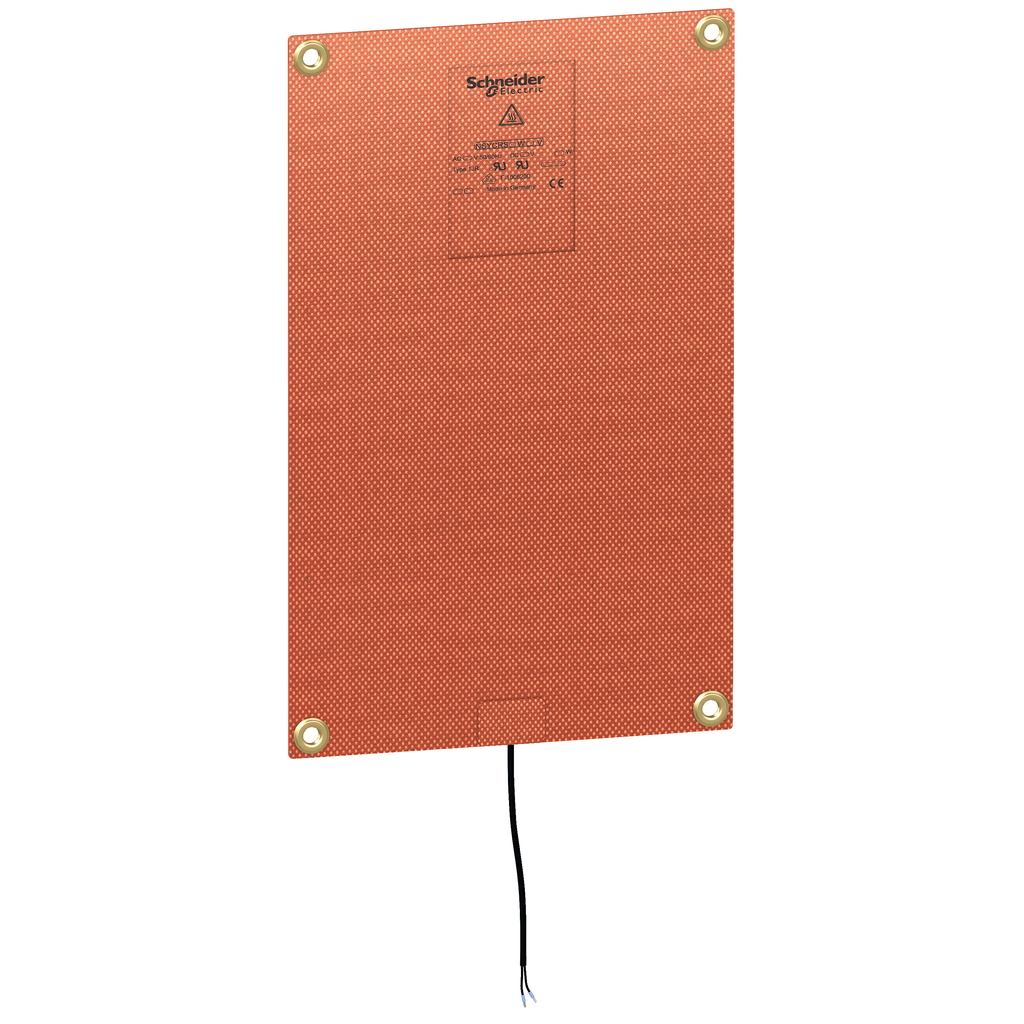

NSYCRS50W240V - Climasys Ultra thin resistance heater low starting current 50W 240V 200x320mm

NSYCRS50W240V

Add to Quote Catalogue

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2103012EN
Sustainable Offer Status	Green Premium product
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Country of Origin	Spain
Electrical Connection	cable 2 m
Power Range	50 W
Product Or Component Type	ultra thin resistance heater
Product Name	ClimaSys CR
Range	ClimaSys
Input Voltage	240 V AC 50/60 Hz
Ambient Air Temperature For Operation	-60-70 °C
Mounting Support	Telequick mounting plate DIN rail adhesive Velcro standard mounting plate
Fixing Mode	by 4 screws
Condition Of Use	heaters must be installed with a thermal controller electrical protection is needed air sealed enclosure
Device Composition	6 self-adhesive Velcro pads 6 plastic spacers 4 Telequick nuts 4 clip-on nuts fixing accessories
Depth	external : 1.6 mm
Width	external: 320 mm
Height	external: 200 mm
Material	silicone rubber
Operating Position	vertical horizontal
Temperature Setting Range	-40-70 °C
Warranty	18 months
