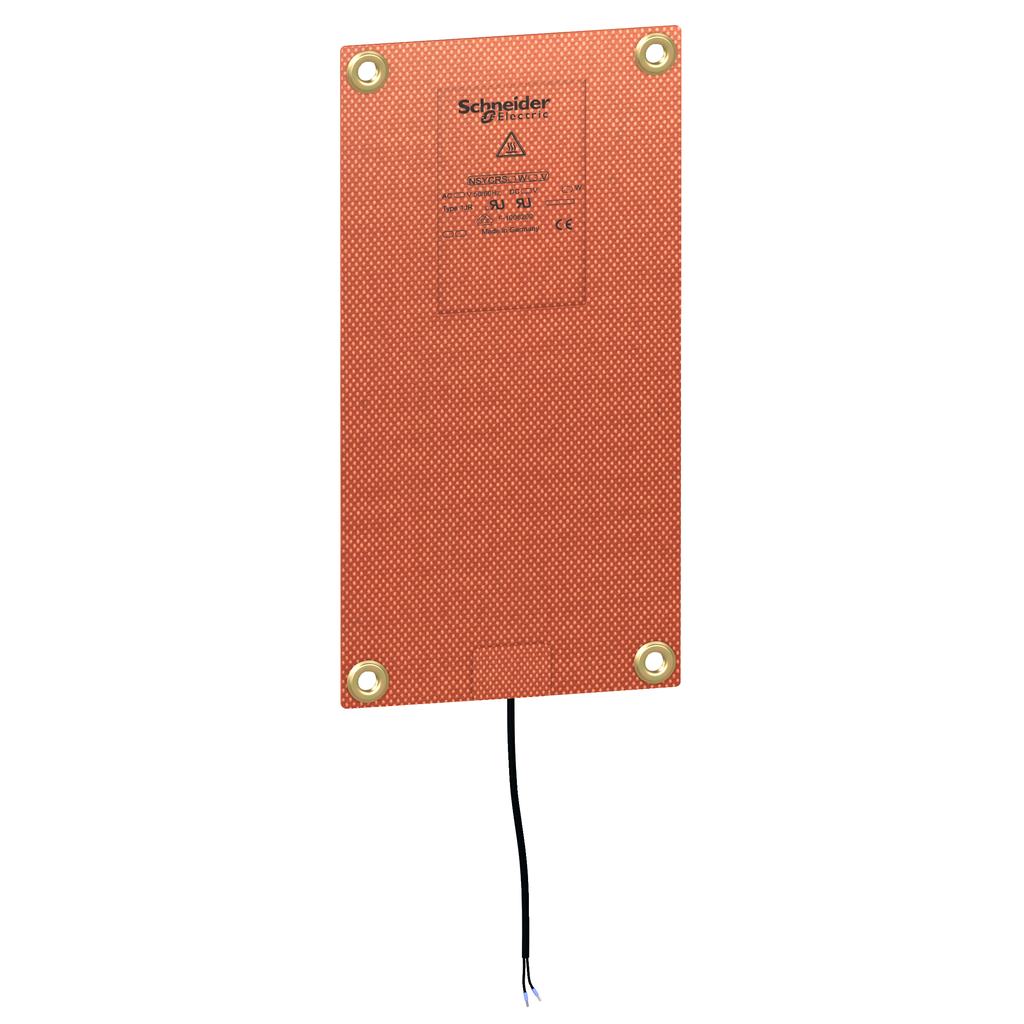

NSYCRS25W240V
Climasys Ultra thin resistance heater low starting current 20W 240V 130x250mm
Climasys CR Ultra thin resistance heater. Low starting current 25 W. 240 V AC 50/60Hz. Vertical or horizontal operating position. Material: Silicone rubber. Cable length: 2 m. Fixing mode by 4 screws. 110 x 230 x 1.6 mm.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2103012EN |
| Sustainable Offer Status | Green Premium product |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Ambient Air Temperature For Operation | -60-70 °C |
| Mounting Support |
|
| Fixing Mode | by 4 screws |
| Condition Of Use |
|
| Device Composition |
|
| Depth | external : 1.6 mm |
| Width | external: 230 mm |
| Height | external: 110 mm |
| Material | silicone rubber |
| Operating Position |
|
| Temperature Setting Range | -40-70 °C |
| Country of Origin | Germany |
| Electrical Connection | cable 2 m |
| Power Range | 25 W |
| Product Or Component Type | ultra thin resistance heater |
| Product Name | ClimaSys CR |
| Range | ClimaSys |
| Input Voltage | 240 V AC 50/60 Hz |
| Warranty | 18 months |
Documents
- Ultra Thin Resistance Heater - Instruction Sheet - HHH7365760001-05 (pdf)
- Spec Sheet
- Universal Enclosures - Quick Selection Guide (2024 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide - UEMKG001EN_(web) (pdf)
- Industrial Control Panel Solutions Catalog - 8800CT1801 (pdf)
