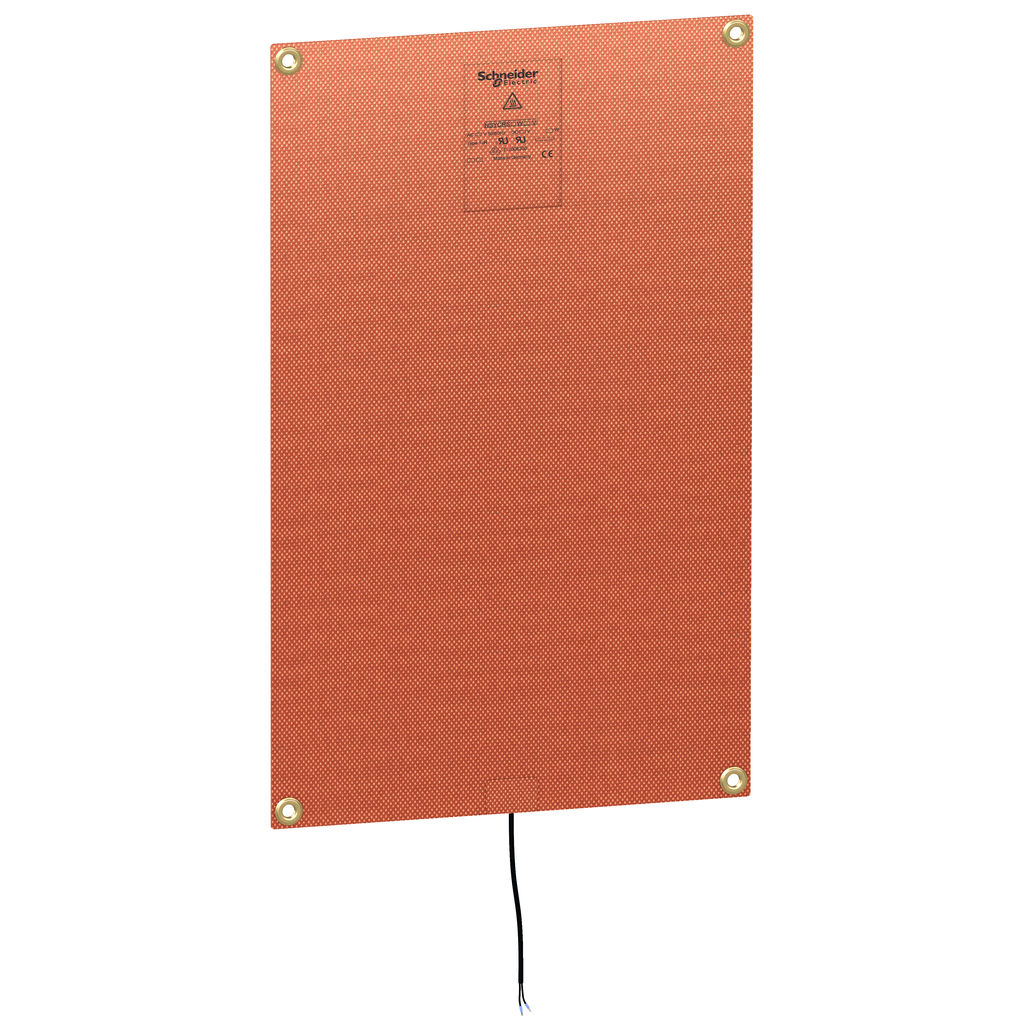

NSYCRS100W240V – Climasys Ultra thin resistance heater low starting current 90W 240V 280x450mm
NSYCRS100W240V
Climasys Ultra thin resistance heater low starting current 90W 240V 280x450mm
Specifications
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2103011EN
Sustainable Offer Status Green Premium product
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile N/A
Eu Rohs Directive Compliant with Exemptions
Country of Origin Germany
Electrical Connection cable 2 m
Power Range 90 W
Product Or Component Type ultra thin resistance heater
Product Name ClimaSys CR
Range ClimaSys
Input Voltage 240 V AC 50/60 Hz
Ambient Air Temperature For Operation -60-70 °C
Mounting Support
  • DIN rail
  • Telequick mounting plate
  • adhesive Velcro
  • standard mounting plate
Fixing Mode by 4 screws
Condition Of Use
  • air sealed enclosure
  • electrical protection is needed
  • heaters must be installed with a thermal controller
Device Composition
  • 6 self-adhesive Velcro pads
  • 6 plastic spacers
  • 4 Telequick nuts
  • 4 clip-on nuts
  • fixing accessories
Depth external : 1.6 mm
Width external: 440 mm
Height external: 260 mm
Material silicone rubber
Operating Position
  • horizontal
  • vertical
Temperature Setting Range -40-70 °C
Warranty 18 months
