NSYCRP1W230VTVC

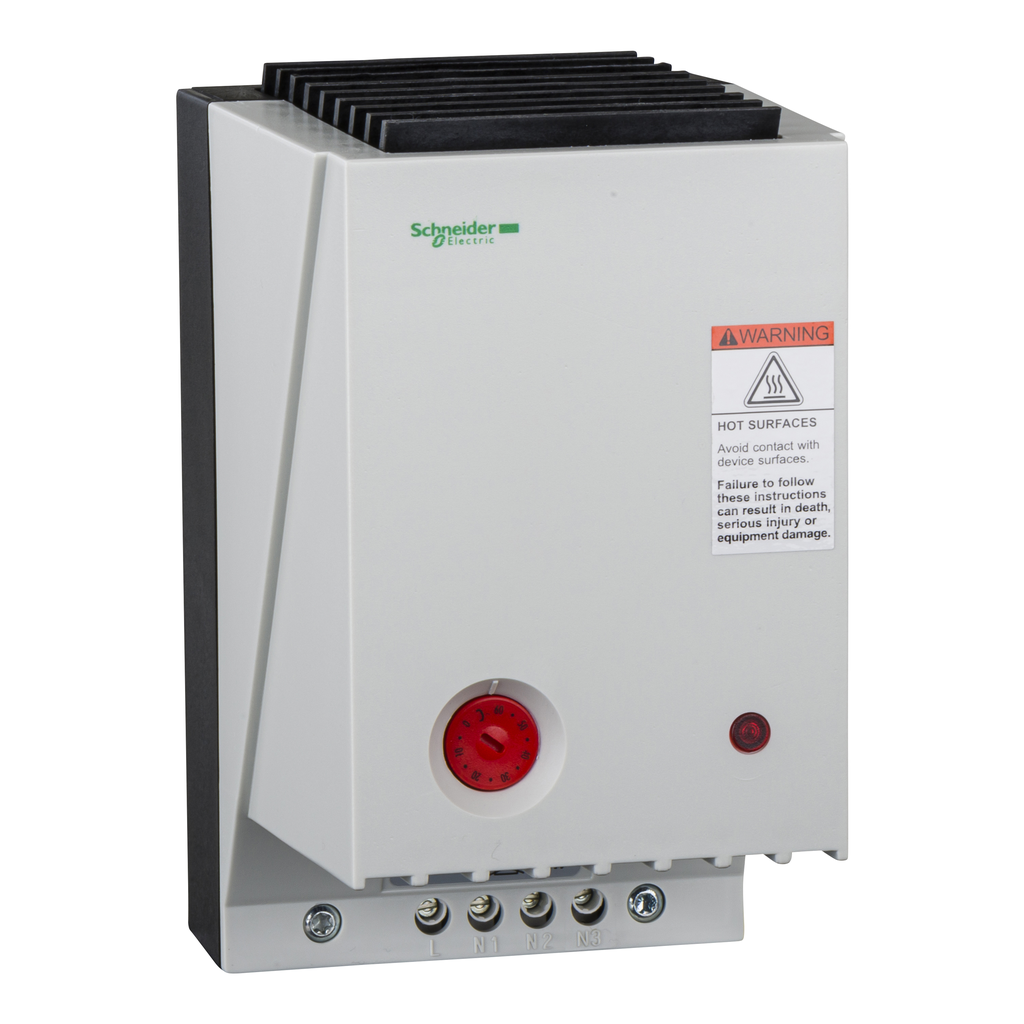

ClimaSys PTC heating resistance 350-500W, 230V insulate thermoventilator
ClimaSys PTC heating resistance insulate thermoventilator. 350-550W, 230V AC, 50/60 Hz. (-40 to 70)°C temp for operation. Electrical connection is 2 screw terminals 2.5 mm². 35 mm DIN rail mounting support. Fixing mode by clips. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Germany |
|---|---|
| Electrical Connection | 2 screw terminals 2.5 mm² |
| Power Range |
|
| Product Or Component Type | resistance heater with fan and thermostat |
| Product Name | ClimaSys CR |
| Range | ClimaSys |
| Input Voltage | 230 V AC 50/60 Hz |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-70 °C |
| Mounting Support | 35 mm DIN rail |
| Fixing Mode | by clips |
| Condition Of Use |
|
| Depth | 215 mm |
| Width | 155 mm |
| Height | 150 mm |
| Operating Position | vertical |
| Temperature Setting Range | 0-60 °C |
| Ip Degree Of Protection | IP20 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2103011EN |
| Sustainable Offer Status | Green Premium product |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Warranty | 18 months |
