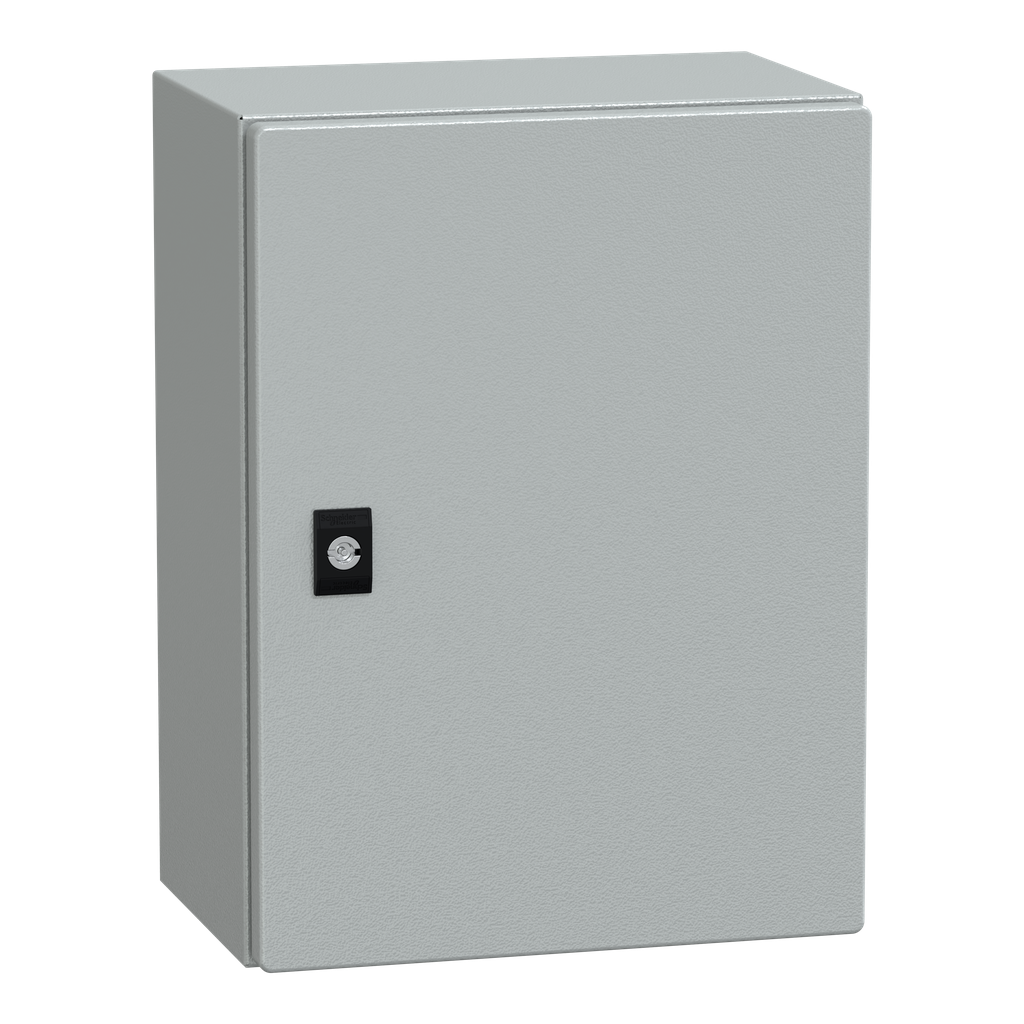

PanelSeT CRN plain door with mount.plate. H400xW300xD200 IP66 IK10 RAL7035..
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate. The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 300 mm x (H) 400 mm x (D) 200 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ik Degree Of Protection | IK10 IEC 62262 |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Accessibility For Operation | front |
| Removable Parts |
|
| Type Of Gland Plate | standard |
| Standards | IEC 62208 |
| Variant Particularity |
|
| Lock Type | 3 mm double-bar lock |
| Net Weight | 6.946 kg |
| Door Opening Side | reversible 120 °) |
| Number Of Doors | front face 1 |
| Material |
|
| Surface Finish | enclosure epoxy-polyester powder |
| Color | enclosure Gray RAL 7035) |
| Country of Origin | Spain |
| Width | 300 mm |
| Height | 400 mm |
| Weight | 6.946 kg |
| Installation Accessory Type | wall-mounting |
| Product Or Component Type | compact enclosure |
| Product Name | PanelSeT CRN |
| Device Composition |
|
| Enclosure Nominal Height | 400 mm |
| Range | PanelSeT |
| Door Type | Solid |
| Enclosure Nominal Depth | 200 mm |
| Device Application | multi-purpose |
| Enclosure Nominal Width | 300 mm |
| Mounting Plate Description | plain |
