NSYCRN126300T

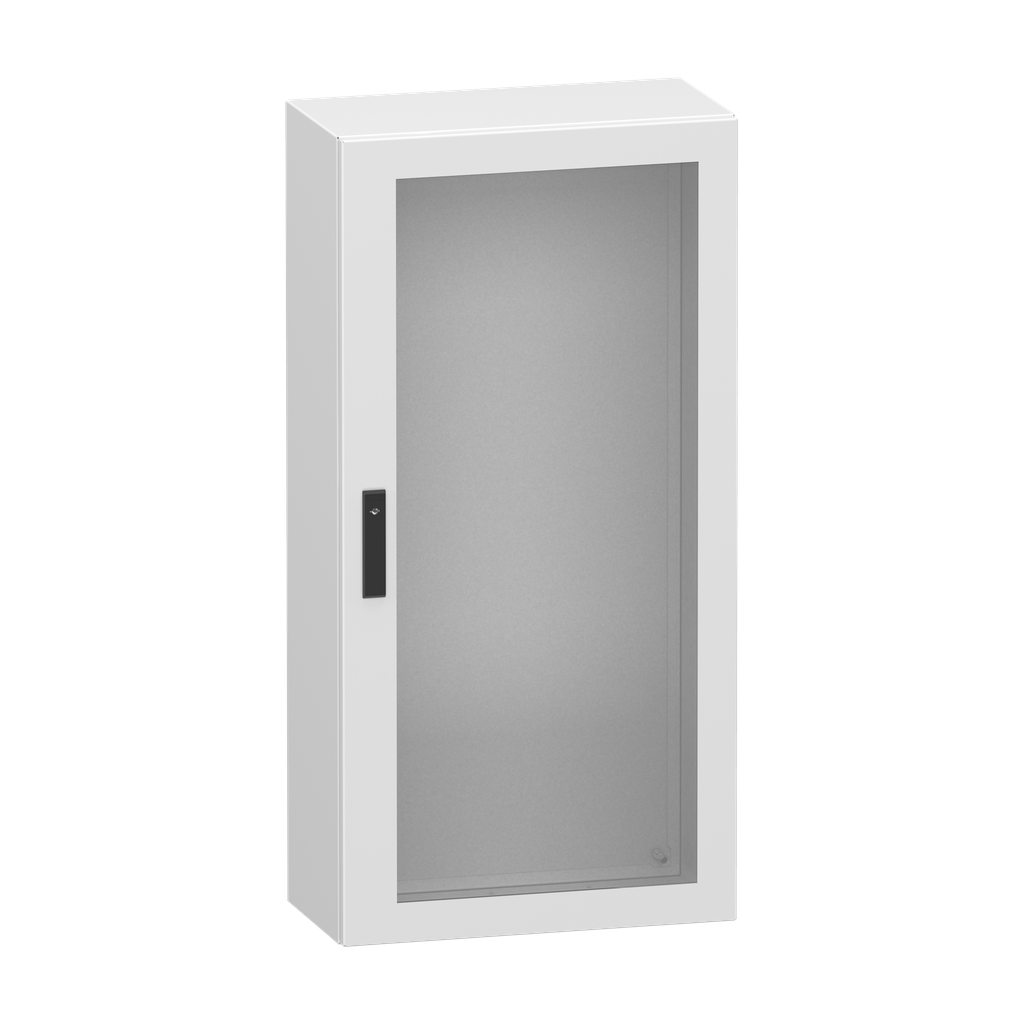

Glazed steel door, PanelSeT CRN, without mounting plate, 1200x600x300mm, IP66, IK08, RAL7035
Specifications
| Ik Degree Of Protection | IK08 IEC 62262 |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Accessibility For Operation | front |
| Removable Parts |
|
| Type Of Gland Plate | standard |
| Standards | IEC 62208 |
| Variant Particularity | single piece body |
| Lock Type | 3 points lock, 5 mm double-bar |
| Net Weight | 35 kg |
| Door Opening Side | reversible 120 °) |
| Number Of Doors | front face 1 |
| Material |
|
| Surface Finish | epoxy-polyester powder |
| Color | Gray RAL 7035) |
| Country of Origin | Spain |
| Width | 600 mm |
| Height | 1200 mm |
| Weight | 35 kg |
| Installation Accessory Type | wall-mounting |
| Product Or Component Type | compact enclosure |
| Product Name | PanelSeT CRN |
| Device Composition |
|
| Enclosure Nominal Height | 1200 mm |
| Range | PanelSeT |
| Door Type | Glass |
| Enclosure Nominal Depth | 300 mm |
| Device Application | multi-purpose |
| Enclosure Nominal Width | 600 mm |
| Mounting Plate Description | without mounting plate |
