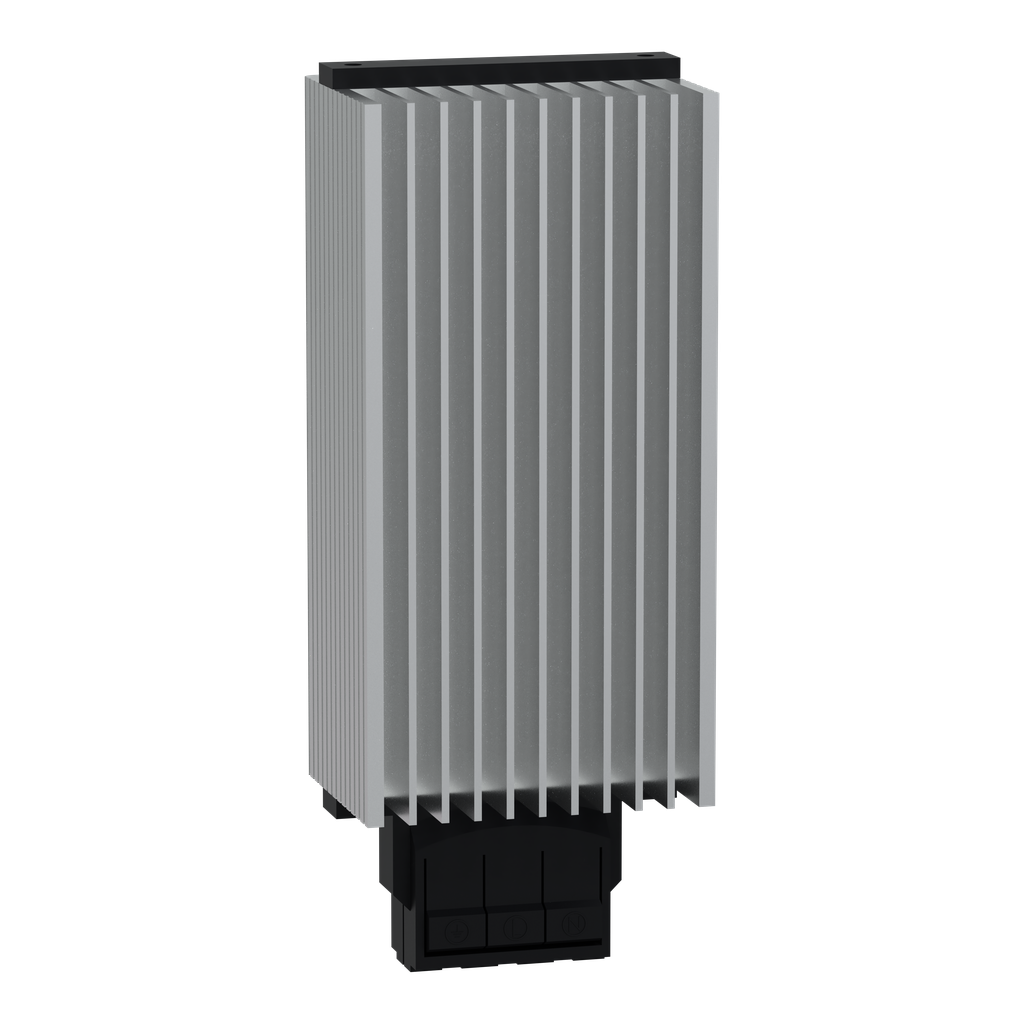

NSYCR55WU2 - ClimaSys PTC heating resistance 55W, 110-250V

NSYCR55WU2

ClimaSys PTC heating resistance 55W, 110-250V

ClimaSys PTC heating resistance. 50W, 110-250V AC, 50/60 Hz. (-40 to 70)°C temp for operation. Electrical connection is cable 2 x 0.75 mm² length is 300 mm. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller. Prisma P/G compatible.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Compatibility	Prisma (P) Prisma (G)
Power Range	55 W
Product Or Component Type	resistance heater
Product Name	ClimaSys CR
Range	ClimaSys
Input Voltage	110...250 V AC 50/60 Hz
Warranty	18 months
Product Certifications	UL VDE
Ambient Air Temperature For Operation	-40-70 °C
Mounting Support	35 mm DIN rail
Fixing Mode	by clips
Condition Of Use	air sealed enclosure heaters must be installed with a thermal controller electrical protection is needed
Depth	70 mm
Width	85 mm
Height	200 mm
Material	body extruded aluminium
Operating Position	vertical
Ip Degree Of Protection	IP20
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2103011EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant
