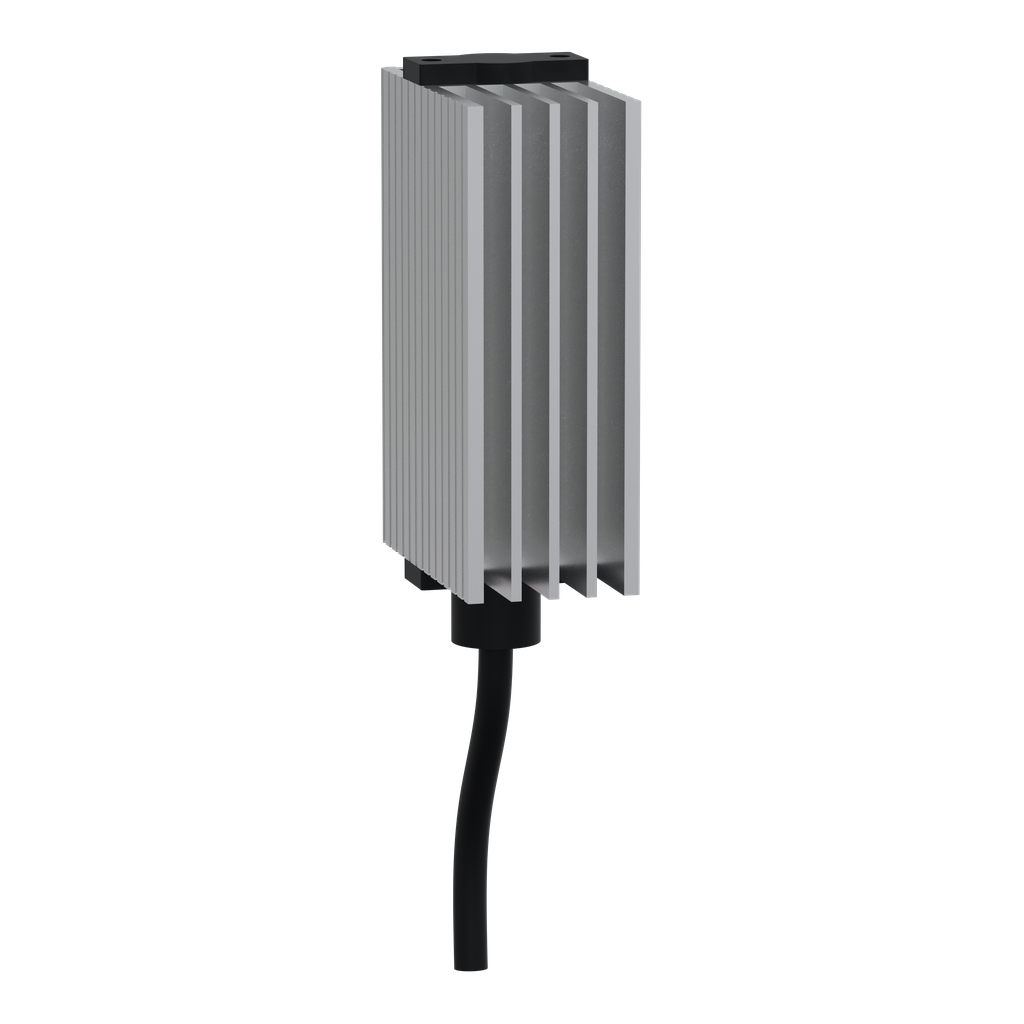

NSYCR20WU2 - ClimaSys PTC heating resistance 20W, 110-250V

NSYCR20WU2

ClimaSys PTC heating resistance 20W, 110-250V

ClimaSys PTC heating resistance. 20W, 110-250V AC, 50/60 Hz. (-40 to 70)°C temp for operation. Electrical connection is cable 2 x 0.75 mm² length is 300 mm. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Electrical Connection	cable 2 x 0.75 mm² 300 mm
Power Range	20 W
Product Or Component Type	resistance heater
Product Name	ClimaSys CR
Range	ClimaSys
Input Voltage	110...250 V AC 50/60 Hz
Warranty	18 months
Product Certifications	UL VDE
Ambient Air Temperature For Operation	-40-70 °C
Mounting Support	35 mm DIN rail
Fixing Mode	by clips
Condition Of Use	air sealed enclosure heaters must be installed with a thermal controller electrical protection is needed
Depth	external 57 mm
Width	external 25 mm
Height	external 85 mm
Material	body extruded aluminium
Operating Position	vertical
Ip Degree Of Protection	IP20
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2103011EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant
