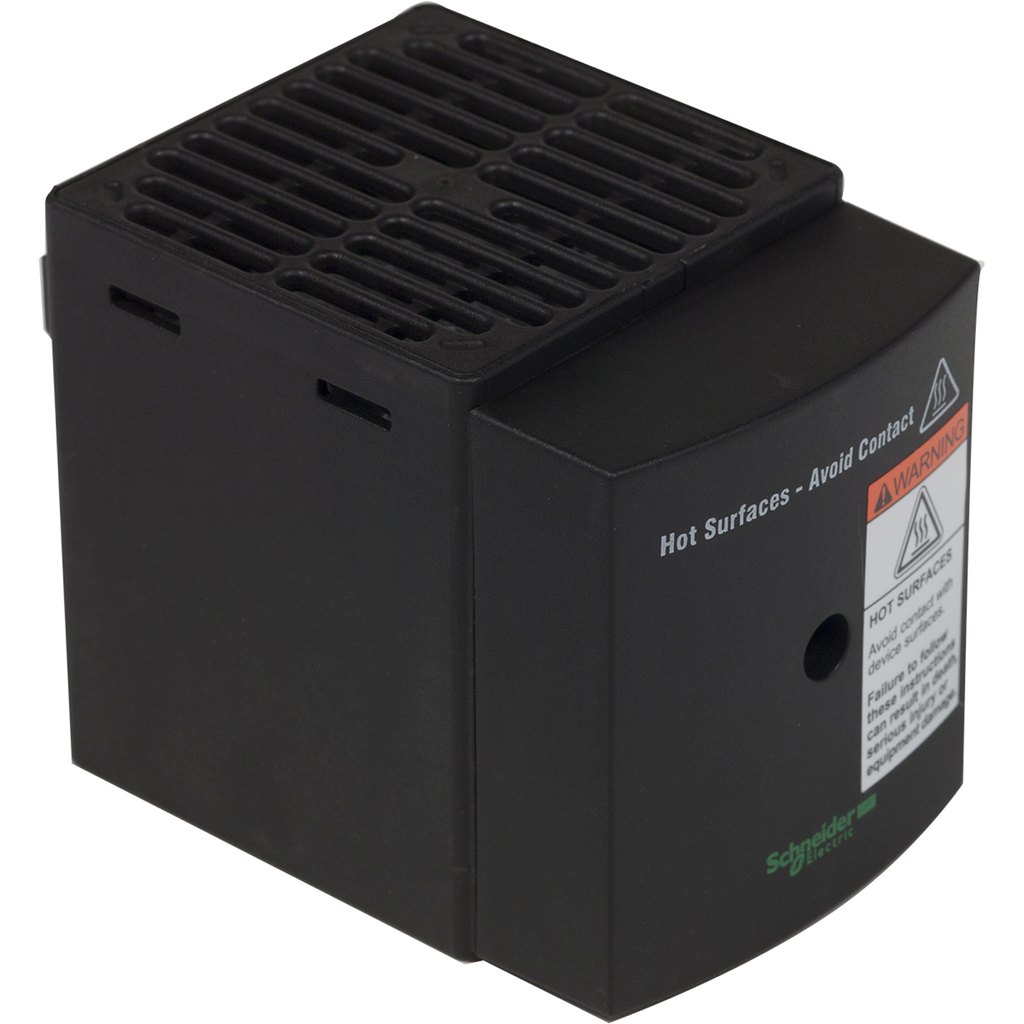

NSYCR170W230VVC - ClimaSys PTC heating resistance 177W 230V with ventilator insulate

NSYCR170W230VVC

Add to Quote Catalogue

Input Voltage	230 V AC 50/60 Hz
Electrical Connection	2 screw terminals 2.5 mm²
Power Range	177 W
Product Or Component Type	resistance heater with fan
Product Name	ClimaSys CR
Range	ClimaSys
Warranty	18 months
Product Certifications	VDE UL
Electrical Insulation Class	class II
Ambient Air Temperature For Operation	-40-70 °C
Width	external 65 mm
Height	external 75 mm
Mounting Support	35 mm DIN rail
Fixing Mode	by clips
Material	body extruded aluminium Cover plastic
Operating Position	vertical
Condition Of Use	electrical protection is needed heaters must be installed with a thermal controller air sealed enclosure
Ip Degree Of Protection	IP20
Depth	external 90 mm
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2103011EN
Sustainable Offer Status	Green Premium product
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
