NSYCR10WU1C

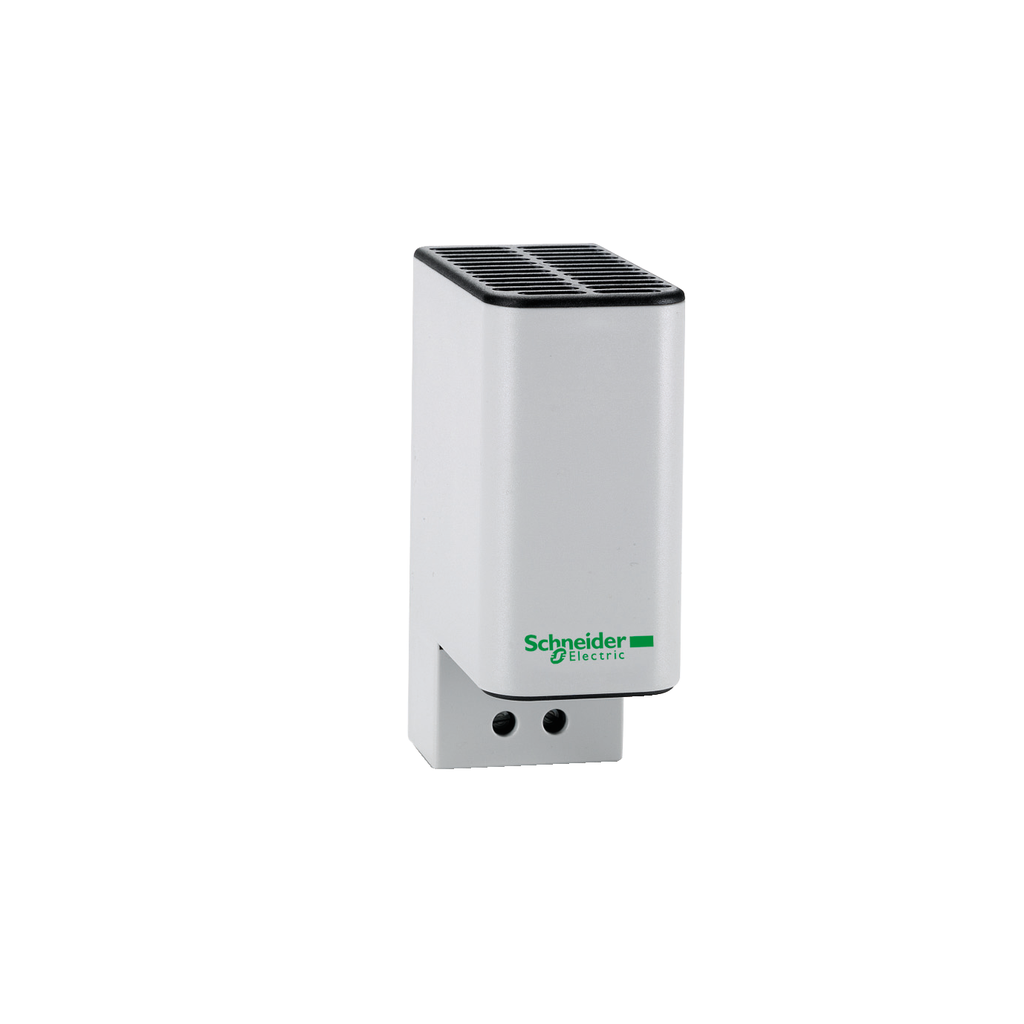

ClimaSys PTC heating resistance 10W, 12-24V insulate
ClimaSys PTC heating resistance insulate. 10W, 12-24V DC. (-40 to 70)°C temp for operation. Electrical connection is 2 screw terminals 2.5 mm². 35 mm DIN rail mounting support. Extruded aluminium body. IP20, Insulation Class II. Electrical protection needed, must be installed with a thermal controller.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | VDE |
|---|---|
| Ambient Air Temperature For Operation | -40-70 °C |
| Mounting Support | 35 mm DIN rail |
| Fixing Mode | by clips |
| Condition Of Use |
|
| Depth | external : 75 mm |
| Electrical Insulation Class | class II |
| Width | external: 38 mm |
| Height | external: 98 mm |
| Material |
|
| Operating Position | vertical |
| Ip Degree Of Protection | IP20 |
| Country of Origin | Germany |
| Electrical Connection | 2 screw terminals 2.5 mm² |
| Power Range | 10 W |
| Product Or Component Type | resistance heater |
| Product Name | ClimaSys CR |
| Range | ClimaSys |
| Input Voltage | 12...24 V AC/DC 50/60 Hz |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2103011EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Warranty | 18 months |
