NSYCR10WU1

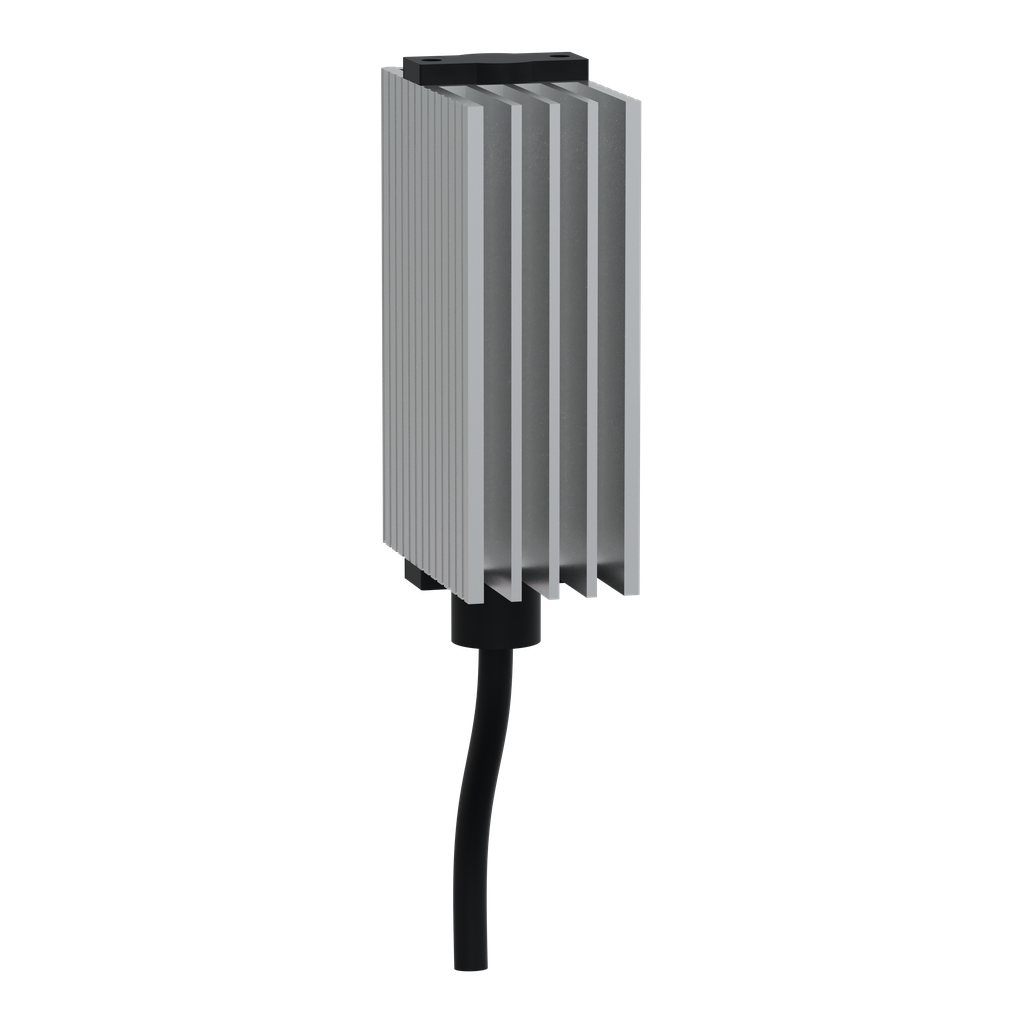

ClimaSys PTC heating resistance 10W, 12-24V
ClimaSys PTC heating resistance. 10W, 12-24V DC. (-40 to 70)°C temp for operation. Electrical connection is cable 2 x 0.75 mm² length is 300 mm. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -40-70 °C |
| Mounting Support | 35 mm DIN rail |
| Fixing Mode | by clips |
| Condition Of Use |
|
| Depth | external : 57 mm |
| Width | external: 25 mm |
| Height | external: 85 mm |
| Material | body extruded aluminium |
| Operating Position | vertical |
| Ip Degree Of Protection | IP20 |
| Country of Origin | Germany |
| Electrical Connection | cable 2 x 0.75 mm² 300 mm |
| Power Range | 10 W |
| Product Or Component Type | resistance heater |
| Product Name | ClimaSys CR |
| Range | ClimaSys |
| Input Voltage | 12...24 V DC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2103011EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Warranty | 18 months |
