NSYCMUTC50

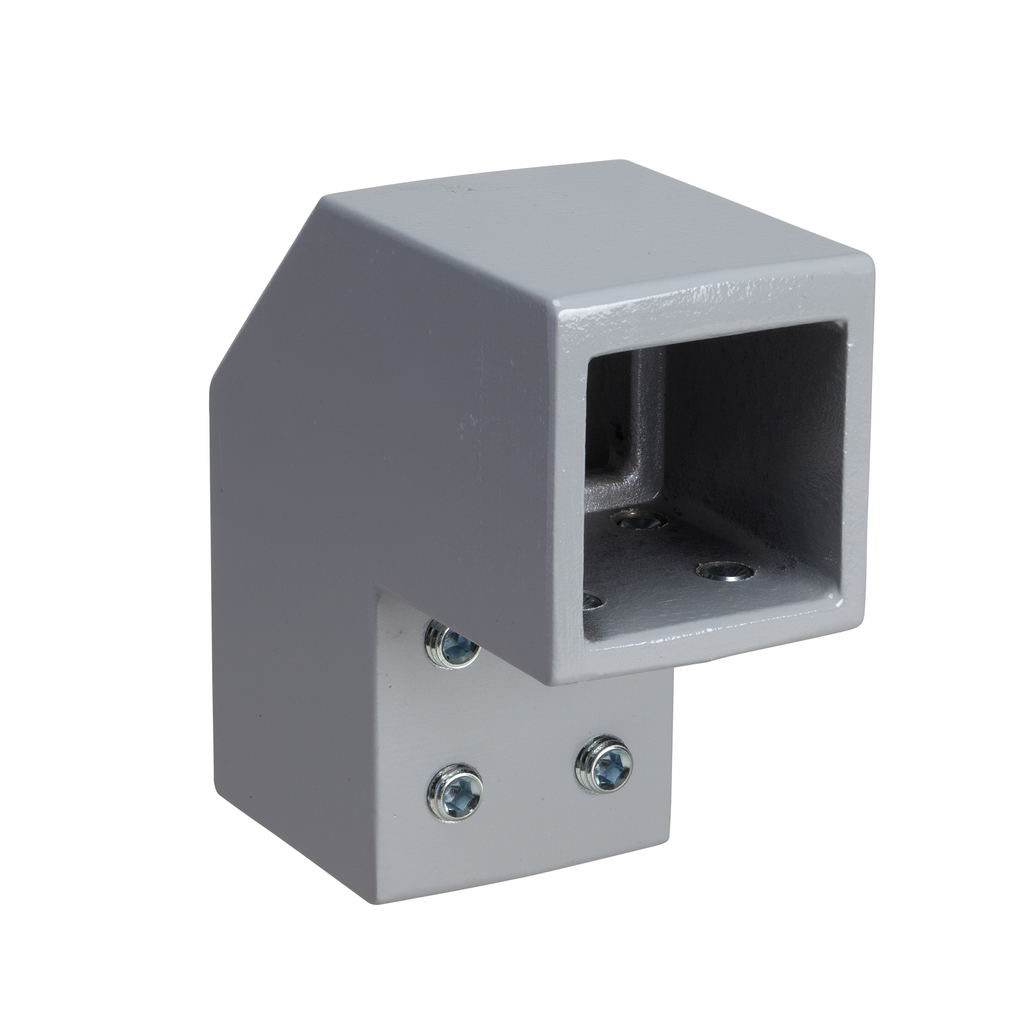

Fixed bracket, square 50 mm RAL 7040. For PanelSeT S3CM HMI encl.
Spacial S3CM HMI Fixed bracket, square 50mm. H: 144 x 155 x 144 mm. Tube adaptor. Mounting between horizontal tube and a vertical tube . Permanent permissible load: 1.35 kg. Aluminium, epoxy-polyester powder finish. Grey RAL 7040. set of 1.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Surface Finish | epoxy-polyester powder |
|---|---|
| Net Weight | 1.43 kg |
| Depth | 144 mm |
| Fixing Mode | by fixing element M12 - fixing the tube |
| Permanent Permissible Load | 1.35 kg |
| Width | 155 mm |
| Height | 144 mm |
| Material | aluminium |
| Color | Gray RAL 7040) |
| Country of Origin | Germany |
| Weight | 1.43 kg |
| Enclosure Nominal Dimensions | - |
| Mounting Support |
|
| Range Compatibility | PanelSeT PanelSeT S3CM |
| Accessory / Separate Part Category | cable management accessory |
| Product Or Component Type | tube adaptor |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location | between horizontal tube and a vertical tube |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
