NSYCMUMR50

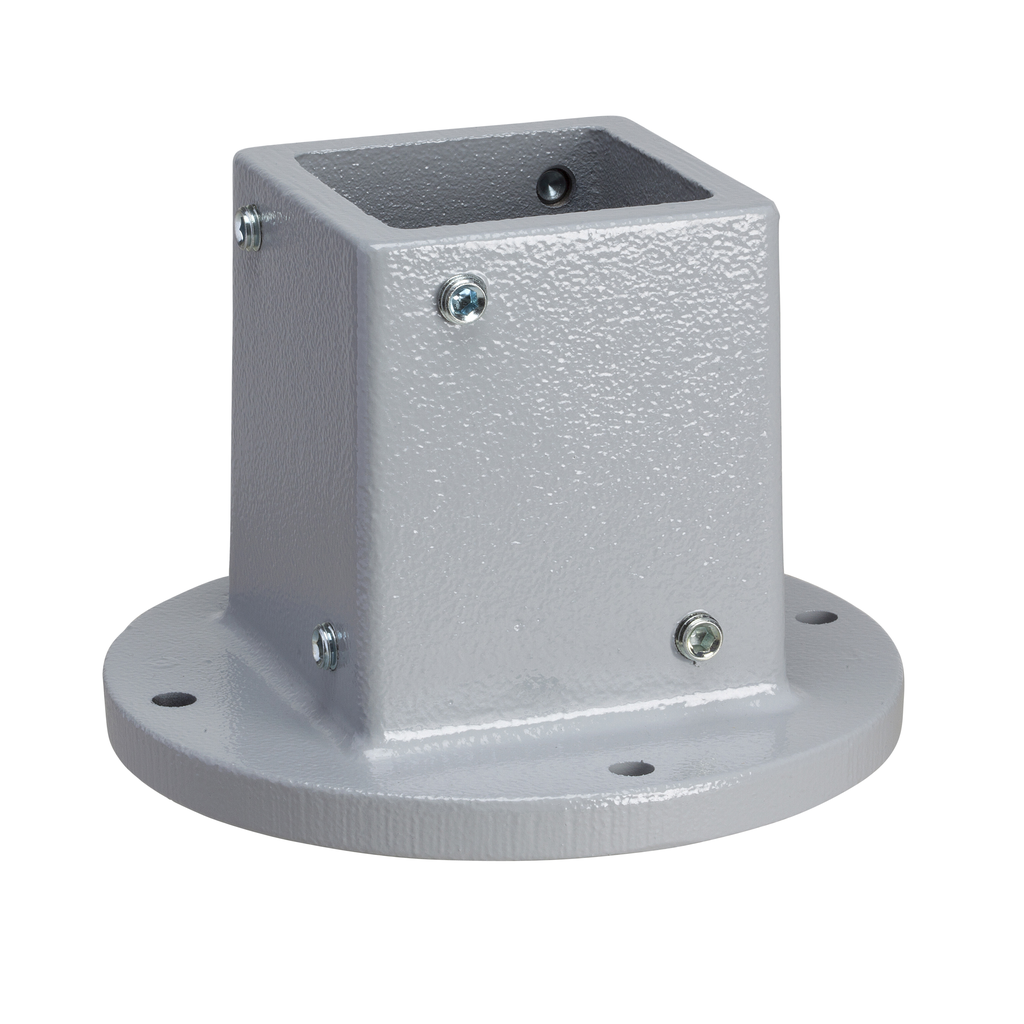

Fixed subbase, square 50 mm, for PanelSeT S3CM HMI encl. RAL 7040.
Specifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Spain |
| Weight | 3.5 kg |
| Enclosure Nominal Dimensions | - |
| Mounting Support |
|
| Range Compatibility | PanelSeT PanelSeT S3CM |
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | fixing on support |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location | between tube and support |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Diameter | 152 mm |
| Surface Finish | epoxy-polyester powder |
| Net Weight | 3.5 kg |
| Depth | 152 mm |
| Fixing Mode | by screw M12 - fixed base |
| Permanent Permissible Load | 3.25 kg |
| Width | 152 mm |
| Height | 110 mm |
| Material | moulded steel |
| Color | Gray RAL 7040) |
| Warranty | 18 months |
