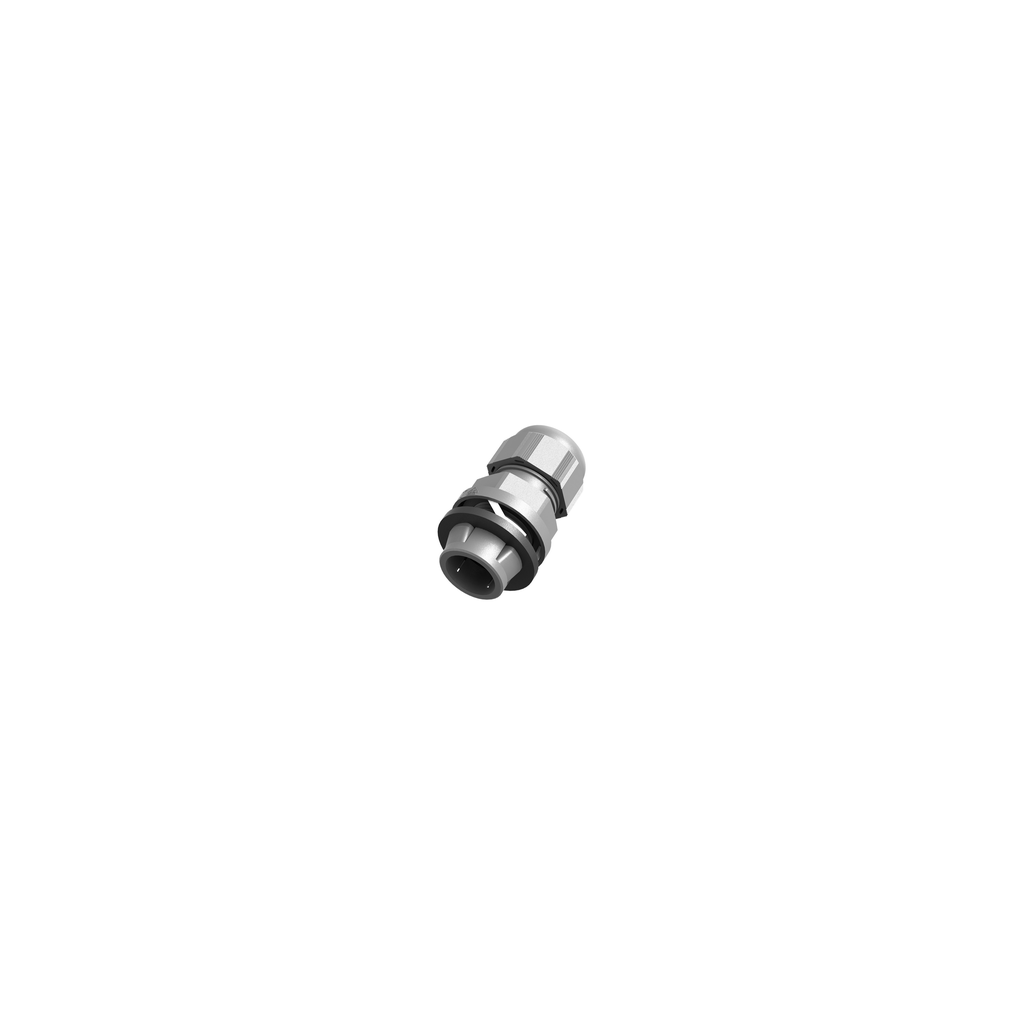

NSYCGSP25
Cable gland SNAP-IN quick fixing M25, polyamide IP68 UL approved UV resistant
Specifications
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Free Of Svhc | Yes |
| Country of Origin | Turkey |
| Weight | 0.022 kg |
| Range Compatibility |
|
| Material |
|
| Accessory / Separate Part Category | cable management accessory |
| Quantity Per Set | set of 10 |
| Product Or Component Type | cable gland |
| Cable Entry | cable gland M25 |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location |
|
| Product Certifications |
|
| Flame Retardance | V2 conforming to UL 94 |
| Environmental Characteristic | UV resistant |
| Ip Degree Of Protection | IP68 IEC 60529 5 bar, 30 min |
| Ambient Air Temperature For Operation |
|
| Color | Gray RAL 7035) |
| Net Weight | 0.022 kg |
| Fixing Mode | push and turn clockwise |
