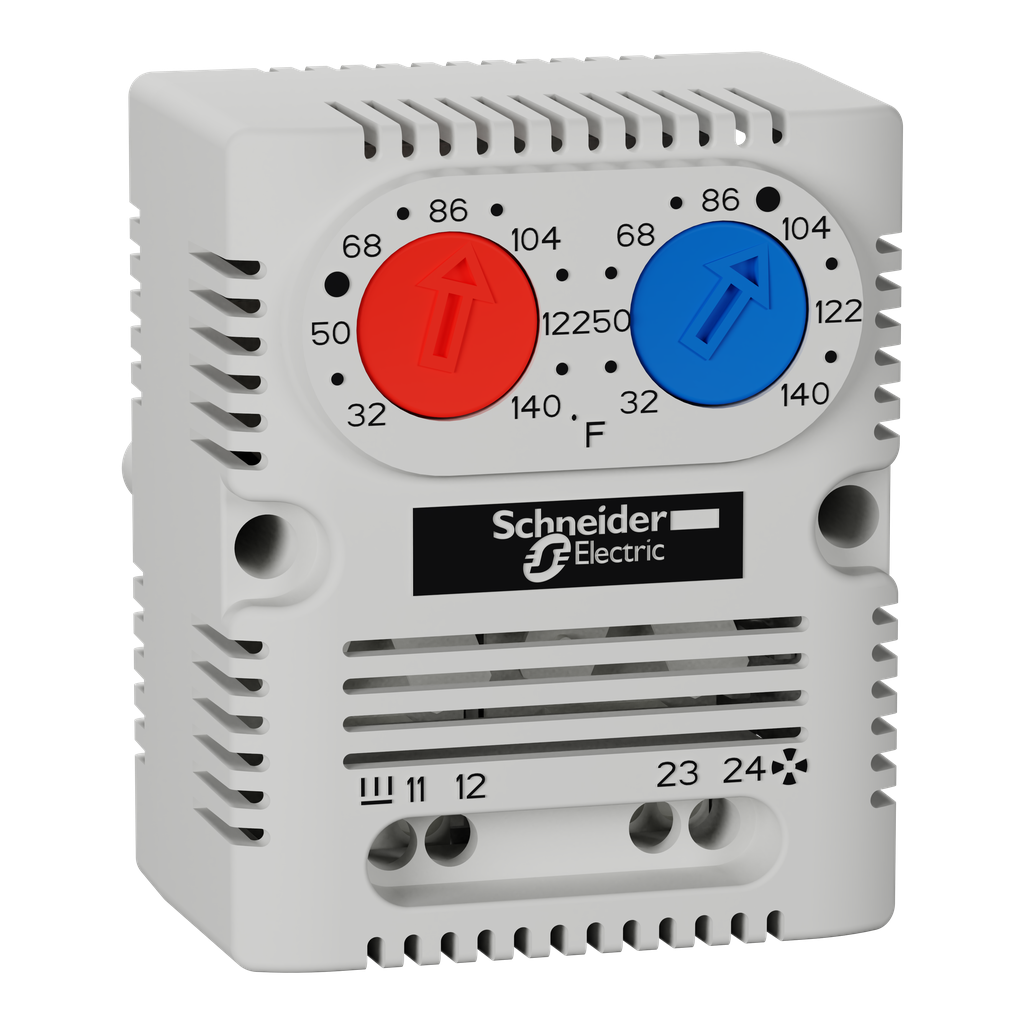

NSYCCOTHDF - ClimaSys CC - double thermostat 250V - range of temperature 0…60°C - 1NO/NC - °F

NSYCCOTHDF

Add to Quote Catalogue

Information Displayed	temperature in °F
Product Or Component Type	double thermostat
Temperature Setting Range	0-60 °C
Product Name	ClimaSys CC
Range	ClimaSys
Warranty	18 months
Maximum Switching Capacity	2 A 120...250 V AC inductive 0.6 10 A 250 V AC resistive 15 A 120 V AC resistive 30 W DC
Product Certifications	UL
Input Voltage	250 V
Electrical Connection	4 terminals 2.5 mm²
Hysteresis	7 %
Hysteresis	7 K +/- 0.4K
Flame Retardance	self-extinguishing conforming to UL94 (material V0)
Contacts Type And Composition	1 NO/NC
Ambient Air Temperature For Operation	-20-80 °C
Mounting Mode	clipped
Color	Light gray
Width	external 56 mm
Number Of Outputs	1 heating function 1 ventilation function
Height	external 68 mm
Sensor Type	bimetal
Service Life In Cycles	100000 cycles
Material	PC
Net Weight	40 g
Ip Degree Of Protection	IP20
Depth	external 44 mm
Mounting Location	on mounting plate 35 mm DIN rail Spacial upright cross rails
Contact Resistance	10 mOhm
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2103012EN
Sustainable Offer Status	Green Premium product
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
