NSYCCOTHCF

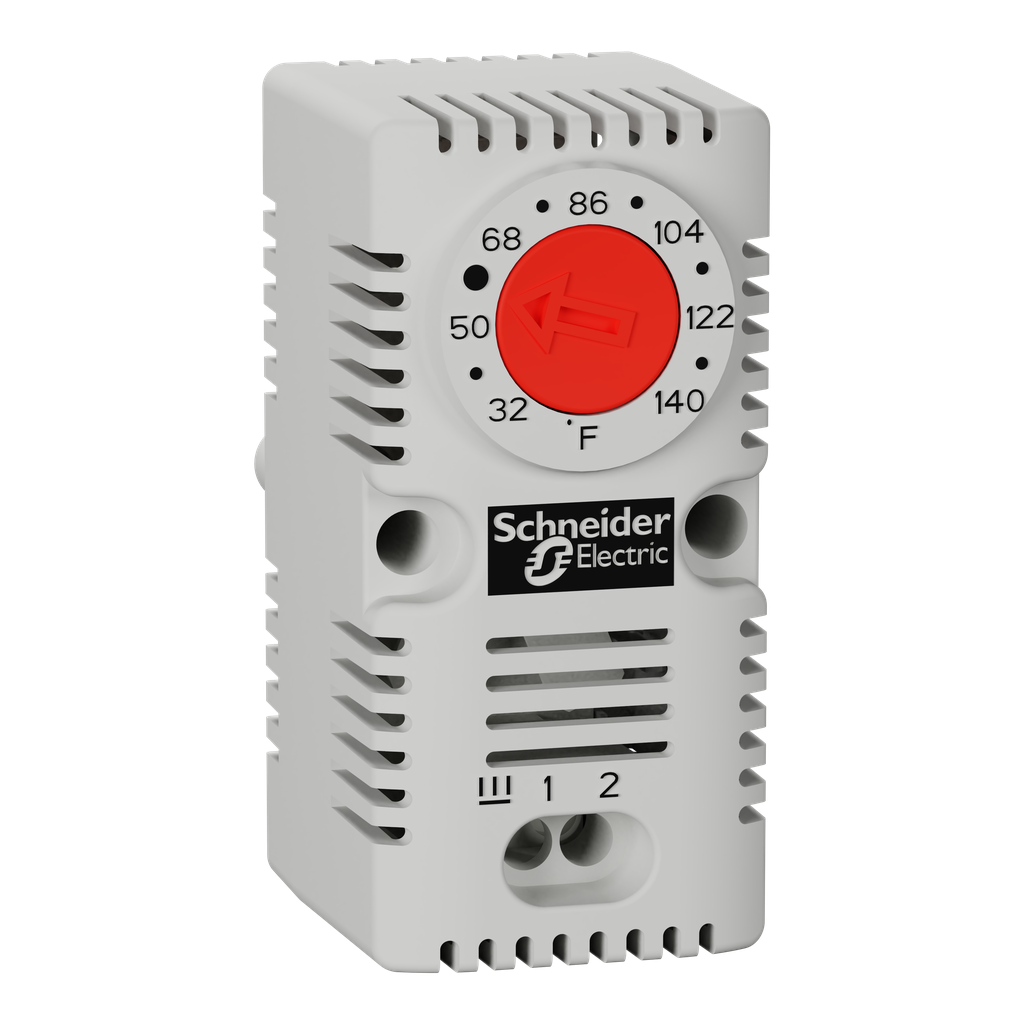

ClimaSys CC - simple thermostat 250V - range of temperature 0…60°C - NC - °F
Specifications
| Country of Origin | United States |
|---|---|
| Weight | 40 g |
| Information Displayed | temperature in °F |
| Product Or Component Type | simple thermostat |
| Product Name | ClimaSys CC |
| Range | ClimaSys |
| Temperature Setting Range | 0-60 °C |
| Maximum Switching Capacity |
|
| Product Certifications | UL |
| Ambient Air Temperature For Operation | -20-80 °C |
| Number Of Outputs | 1 heating function |
| Service Life In Cycles | 100000 cycles |
| Material | PC |
| Net Weight | 40 g |
| Depth | external : 44 mm |
| Mounting Location |
|
| Input Voltage | 250 V |
| Electrical Connection | 4 terminals 2.5 mm² |
| Hysteresis | 7 % |
| Flame Retardance | self-extinguishing conforming to UL94 (material V0) |
| Contacts Type And Composition | NC |
| Mounting Mode | clipped |
| Color | Light gray |
| Width | external: 33 mm |
| Height | external: 68 mm |
| Sensor Type | bimetal |
| Ip Degree Of Protection | IP20 |
| Contact Resistance | 10 mOhm |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2103012EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
