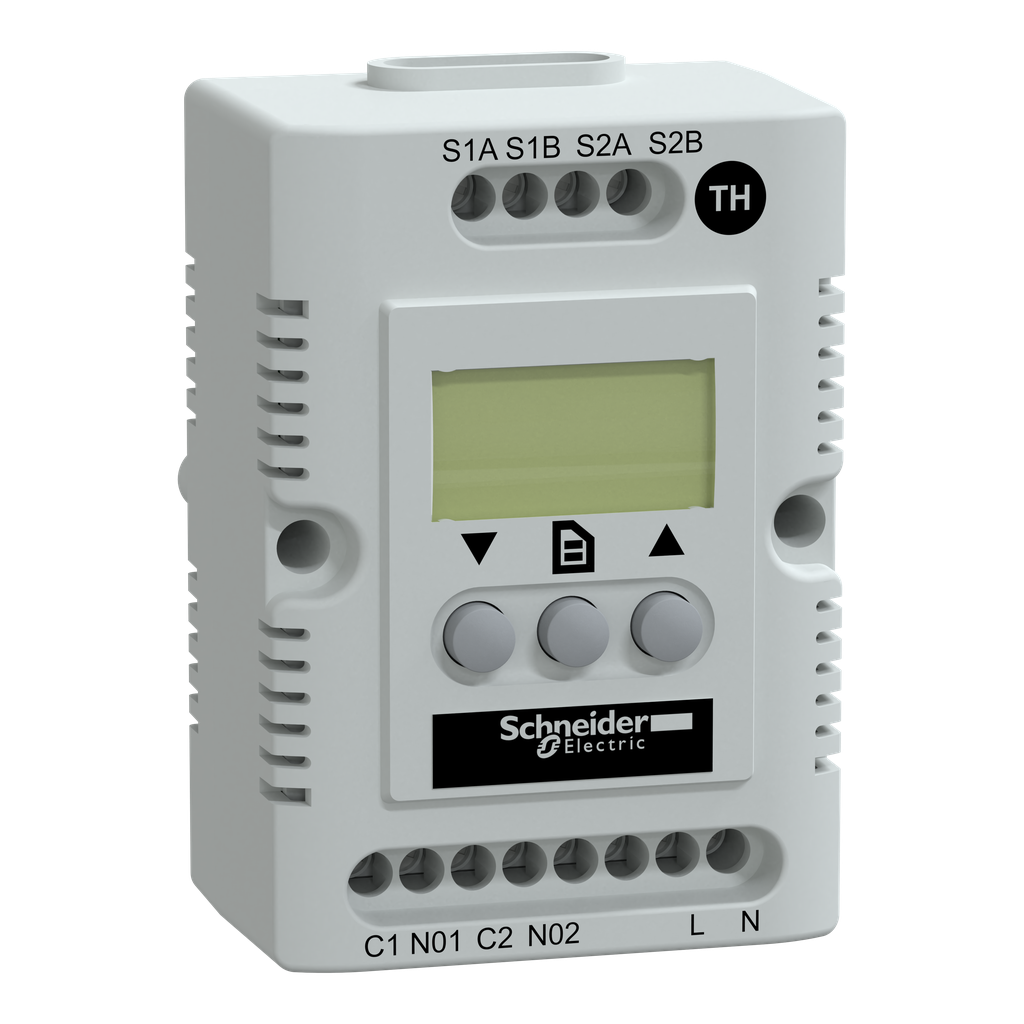

NSYCCOTH230VID - Climasys CC - Electronical thermostat 200..240V - range of temperature -40â€¦80Â°C

NSYCCOTH230VID

Add to Quote Catalogue

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2103012EN
Sustainable Offer Status	Green Premium product
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Maximum Switching Capacity	4 A 230 V AC
Product Certifications	UR
Hysteresis	2 K programmed value
Ambient Air Temperature For Operation	-40-80 °C
Number Of Outputs	2 ventilation/heating function
Material	PC
Depth	external : 44 mm
Mounting Location	cross rails on mounting plate Spacial upright 35 mm DIN rail
Input Voltage	200...240 V AC
Electrical Connection	10 terminals 2.5 mm²
Flame Retardance	self-extinguishing conforming to UL94 (material V0)
Mounting Mode	clipped by screws
Color	Light gray
Width	external: 56 mm
Height	external: 85 mm
Sensor Type	optional NTC external sensor
Country of Origin	China
Information Displayed	temperature in °F temperature in °C
Product Or Component Type	electronical thermostat
Product Name	ClimaSys CC
Range	ClimaSys
Temperature Setting Range	-40-80 °C
Display Type	OLED screen
Warranty	18 months
