NSYCCOHYT30VID

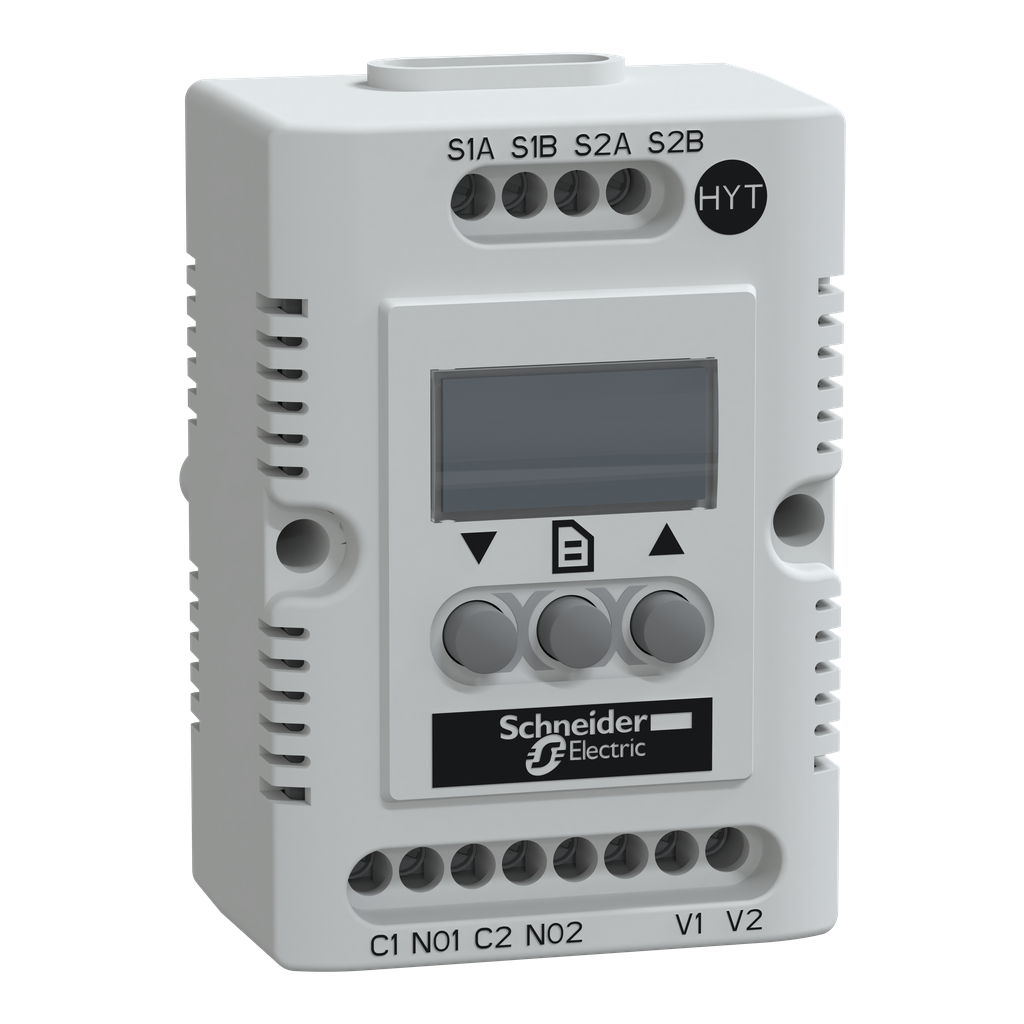

Climasys CC - electronic hygrotherm - 9 -30V - temp -40…80°C - Hr 20…80%
Specifications
| Information Displayed |
|
|---|---|
| Humidity Setting Range | 20-80 % |
| Product Or Component Type | electronic hygrotherm |
| Temperature Setting Range | -40-80 °C |
| Display Type | OLED screen |
| Product Name | ClimaSys CC |
| Range | ClimaSys |
| Warranty | 18 months |
| Product Certifications | UR |
| Maximum Switching Capacity | 4 A 30 V AC/DC |
| Input Voltage | 9...30 V AC/DC |
| Electrical Connection | 8 connectors 2.5 mm² |
| Hysteresis | 3 % |
| Hysteresis | 2 K programmed value |
| Flame Retardance | self-extinguishing conforming to UL94 (material V0) |
| Ambient Air Temperature For Operation | -40-80 °C |
| Mounting Mode |
|
| Color | Light gray |
| Width | external 56 mm |
| Number Of Outputs | 2 ventilation/heating function |
| Height | external 85 mm |
| Sensor Type | optional NTC external sensor |
| Material | PC |
| Depth | external 44 mm |
| Mounting Location |
|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2103012EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
