NSYCCOHYT230VID
Climasys CC - electronic hygrotherm - 200…240 V - temp -40…80 C - Hr 20…80%

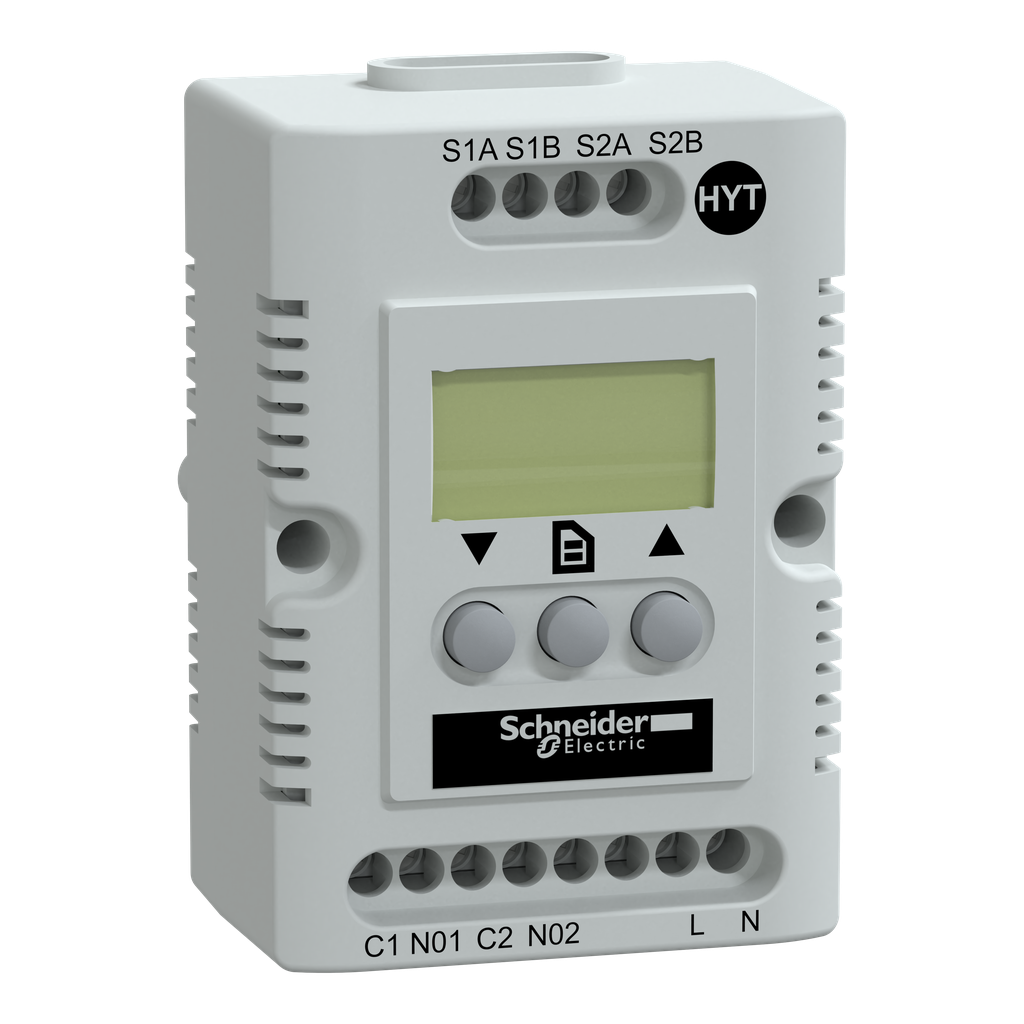

ClimaSys CC Electronic hygrotherm. Display type by OLED screen. 200V AC to 240 V AC. 85 x 56 x 44 mm. Optional NTC external sensor. Electrical connection by 8 connectors 2.5mm². Mounting mode by screws or clipped. 2 ventilation/heating function. Made in PC. Light grey. Self-extinguishing UL94 (material V0), Protection IP20.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Warranty | 18 months |
|---|---|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2103012EN |
| Sustainable Offer Status | Green Premium product |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Product Certifications | UR |
| Maximum Switching Capacity | 4 A 230 V AC |
| Ambient Air Temperature For Operation | -40-80 °C |
| Number Of Outputs | 2 ventilation/heating function |
| Material | PC |
| Depth | external : 44 mm |
| Mounting Location |
|
| Input Voltage | 200...240 V AC |
| Electrical Connection | 8 connectors 2.5 mm² |
| Hysteresis | 3 % |
| Flame Retardance | self-extinguishing conforming to UL94 (material V0) |
| Mounting Mode |
|
| Color | Light gray |
| Width | external: 56 mm |
| Height | external: 85 mm |
| Sensor Type | optional NTC external sensor |
| Lead Time | Usually Ships within 4 Weeks |
| Country of Origin | Spain |
| Information Displayed |
|
| Product Or Component Type | electronic hygrotherm |
| Product Name | ClimaSys CC |
| Range | ClimaSys |
| Humidity Setting Range | 20-80 % |
| Temperature Setting Range | -40-80 °C |
| Display Type | OLED screen |
