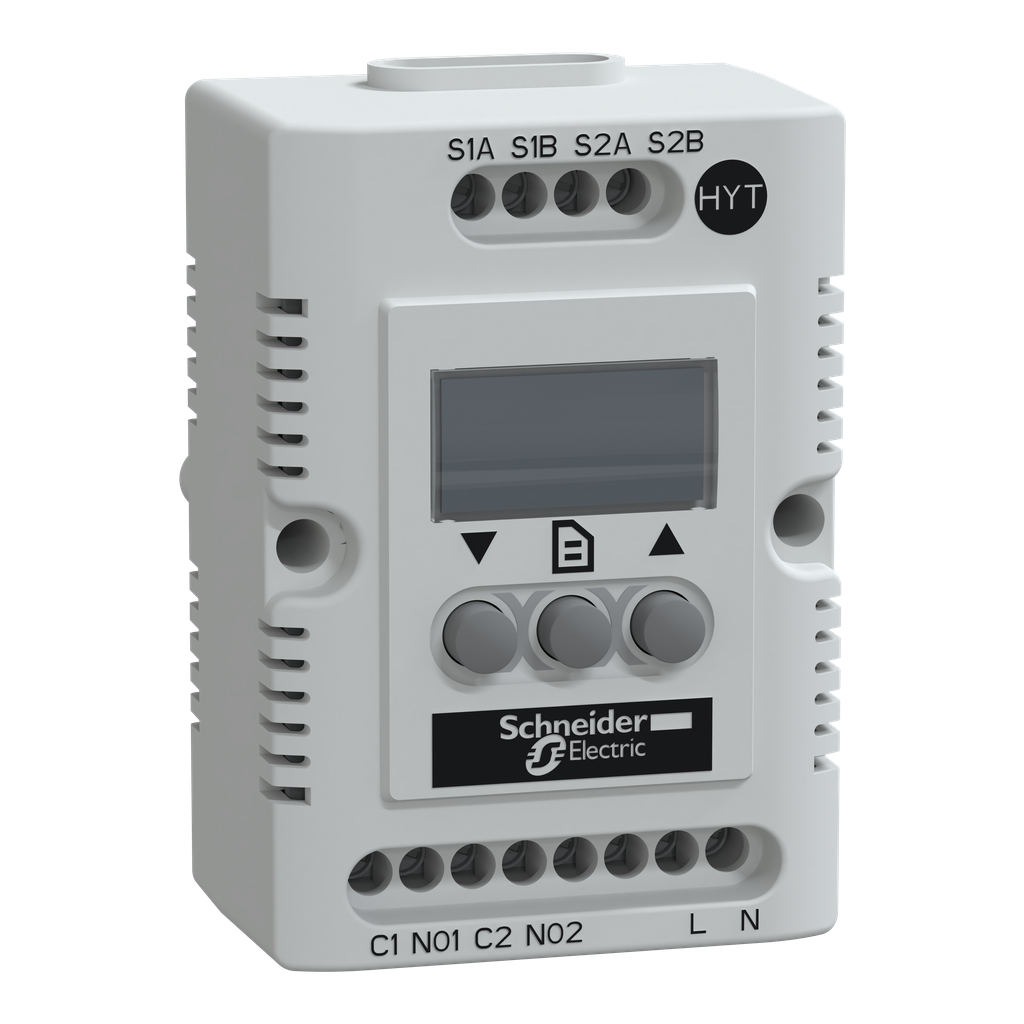

NSYCCOHYT120VID - Climasys CC - electronic hygrotherm - 95 to 135V - temp -40 to 80 C - Hr 20 to 80%

NSYCCOHYT120VID

Add to Quote Catalogue

Information Displayed	temperature in °F relative humidity temperature in °C
Product Or Component Type	electronic hygrotherm
Product Name	ClimaSys CC
Range	ClimaSys
Humidity Setting Range	20-80 %
Temperature Setting Range	-40-80 °C
Display Type	OLED screen
Warranty	18 months
Product Certifications	UR
Maximum Switching Capacity	4 A 120 V AC
Hysteresis	2 K programmed value
Ambient Air Temperature For Operation	-40-80 °C
Number Of Outputs	2 ventilation/heating function
Material	PC
Depth	external 44 mm
Mounting Location	35 mm DIN rail cross rails on mounting plate Spacial upright
Input Voltage	90...140 V AC
Electrical Connection	8 connectors 2.5 mm²
Hysteresis	3 %
Flame Retardance	self-extinguishing conforming to UL94 (material V0)
Mounting Mode	by screws clipped
Color	Light gray
Width	external 56 mm
Height	external 85 mm
Sensor Type	optional NTC external sensor
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2103012EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant
Lead Time	Usually Ships within 4 Weeks
