NSYCCOHY230VID - Climasys CC - electronic hygrostat - 200â€¦240 V - Hr 20â€¦80% - OLED screen

NSYCCOHY230VID

Climasys CC - electronic hygrostat - 200â€¦240 V - Hr 20â€¦80% - OLED screen

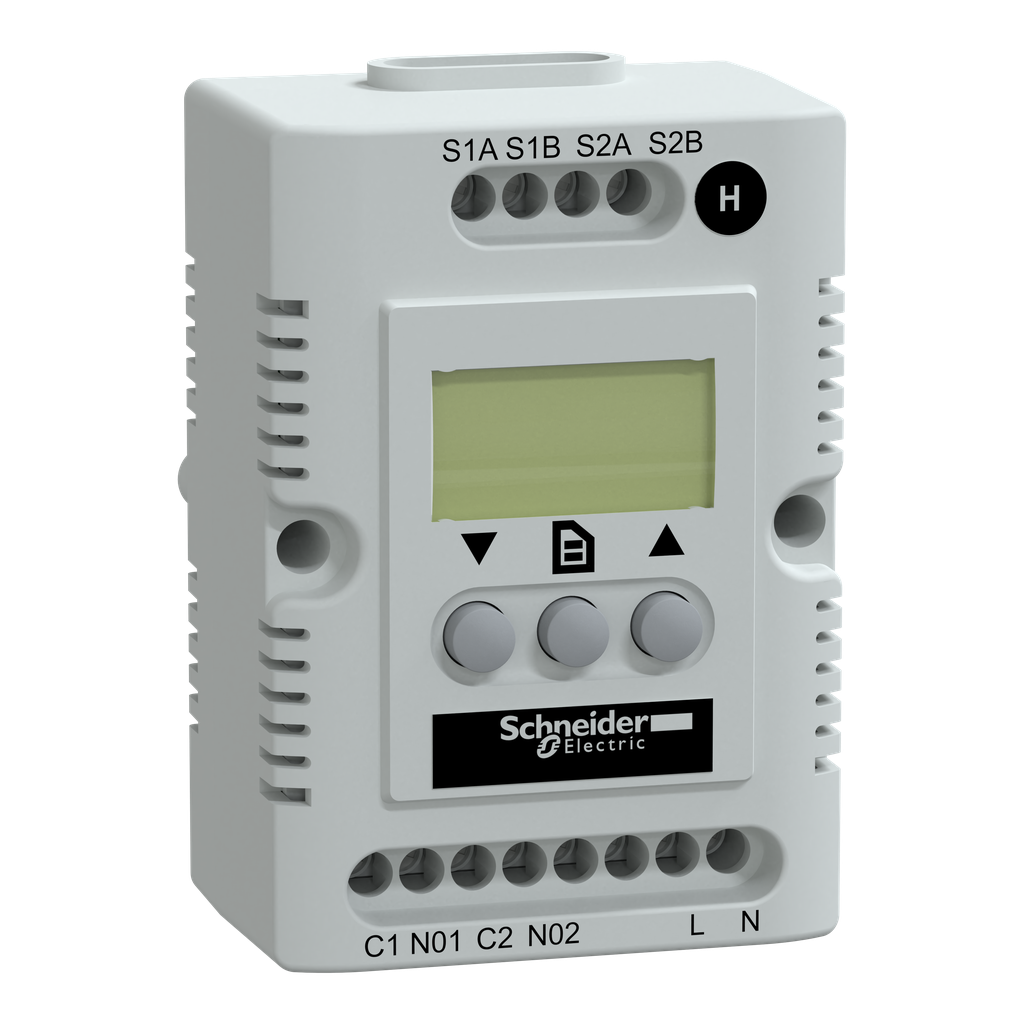

Climasys CC electronic hygrostat with OLED screen. H is 85 x W is 56 x D is 44 mm. Displays relative humidity. 6 terminals 2.5 mm² electric connection. 2 outputs heating function. Input voltage is 200 to 240V. Humidity Range is 20…80%. Hysteresis 3 %. Polycarbonate made, Self-extinguishing conforming to UL94 (material V0). Light grey. Mounting location is on mounting plate, 35 mm DIN rail, Spacial upright or Cross rails.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2103012EN
Sustainable Offer Status	Green Premium product
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Product Certifications	UR
Maximum Switching Capacity	4 A 230 V AC
Ambient Air Temperature For Operation	-40-80 °C
Number Of Outputs	2 heating function
Material	PC
Depth	external : 44 mm
Mounting Location	on mounting plate cross rails 35 mm DIN rail Spacial upright
Input Voltage	200...240 V AC
Electrical Connection	6 terminals 2.5 mm²
Hysteresis	3 %
Flame Retardance	self-extinguishing conforming to UL94 (material V0)
Mounting Mode	by screws clipped
Color	Light gray
Width	external: 56 mm
Height	external: 85 mm
Country of Origin	China
Information Displayed	relative humidity
Product Or Component Type	electronic hygrostat
Product Name	ClimaSys CC
Range	ClimaSys
Humidity Setting Range	20-80 %
Display Type	OLED screen
Warranty	18 months
