Home > Schneider Electric > Universal Enclosures > Thermal Managment Systems > ClimaSys CA > NSYCAG291LPF – Outlet grille – plastic – cut out 291x291mm – ext. dim 336x316mm – IP54

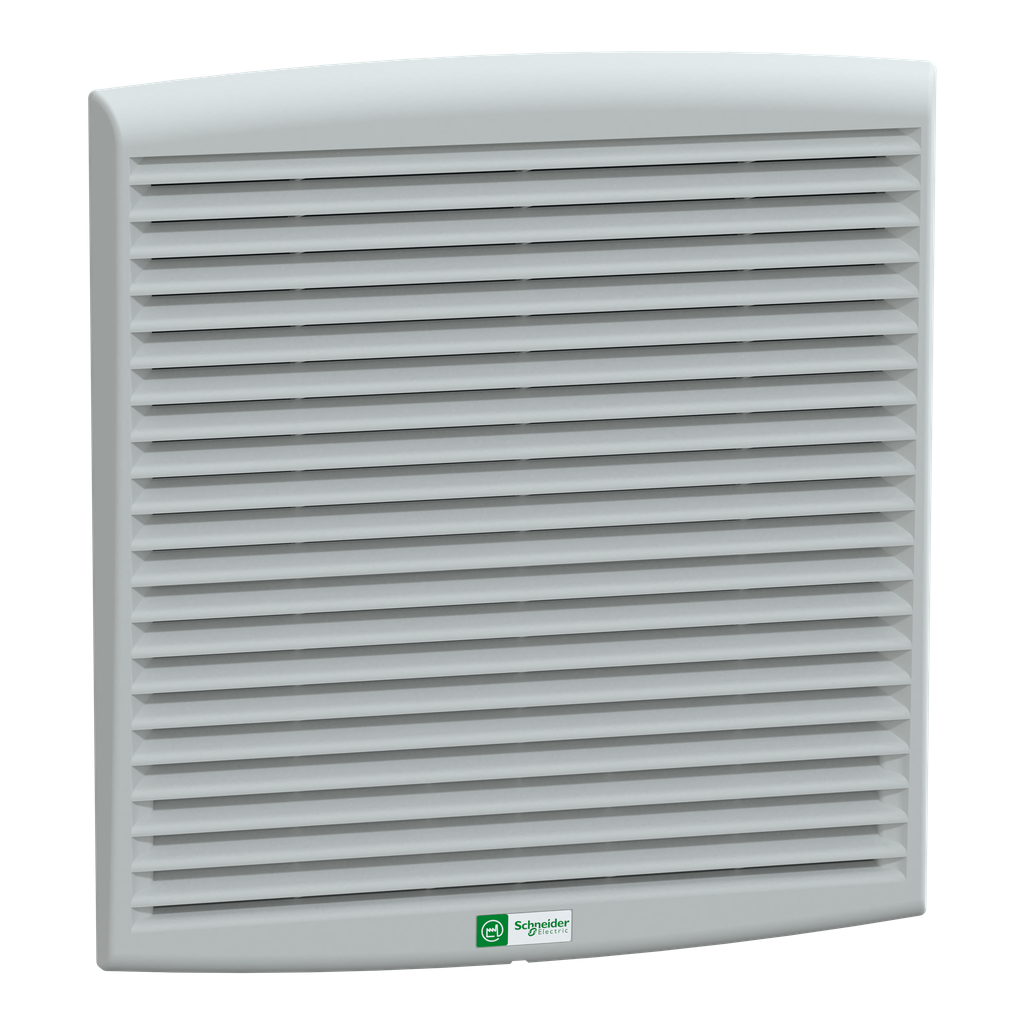

NSYCAG291LPF – Outlet grille – plastic – cut out 291x291mm – ext. dim 336x316mm – IP54
NSYCAG291LPF
Outlet grille - plastic - cut out 291x291mm - ext. dim 336x316mm - IP54

Prisma iPM outlet grille plastic. 291 x 291 mm cut-out. External is 336 x 316 mm. Thermal management accessory. Compatible with Prisma iPM M side panel. Fixing mode by clips. Air flow is 350 m3/h. Injected thermoplastic (ASA PC). Grey RAL 7035 external part. IP30, IP54 and IP31 Protection.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2012014EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
Reach Free Of Svhc Yes
China Rohs Regulation Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile N/A
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Material injected thermoplastic (ASA PC)
Depth external : 18 mm
Cut-Out Dimensions 291 x 291 mm
Width external: 316 mm
Height external: 336 mm
Color external part Gray RAL 7035)
Lead Time Usually Ships within 4 Weeks
Country of Origin United States
Range Compatibility
  • Prisma Prisma P
  • Prisma Prisma G
Fixing Mode
  • by screws
  • clipped
Accessory / Separate Part Category thermal management accessory
Product Or Component Type outlet grille
Product Name ClimaSys CA
Device Composition
  • 1 support frame
  • 1 external part
  • 1 G2 M1 synthetic standard filter
Range ClimaSys
Accessory / Separate Part Destination ClimaSys ventilation system
