NSYBRF26PLAG

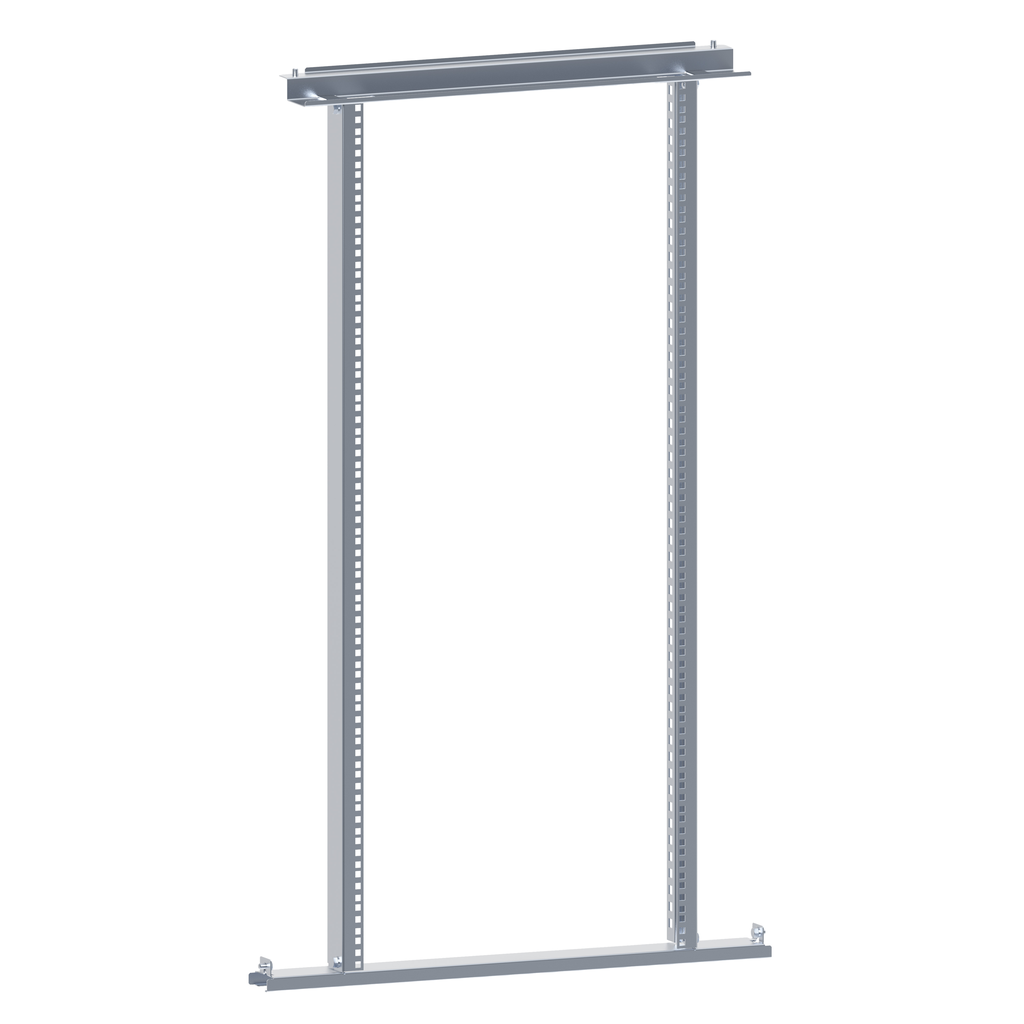

19" fixed chassis 26U forPLA enclosure H1500xW750mm
Specifications
| Country of Origin | Spain |
|---|---|
| Rack Type | fixed |
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | 19" rack |
| Device Composition |
|
| Range | Thalassa |
| Mounting Location | front of enclosure |
| Quantity Per Set | set of 1 |
| Number Of Units 19" | 26 |
| Device Application | multi-purpose |
| Fixing Mode | by fixing element |
| Surface Finish | epoxy-polyester powder |
| Thickness | 2 mm |
| Lock Type | lock 5 mm double bar |
| Permanent Permissible Load | 3 kg per unit |
| Height | nominal: 1500 mm |
| Material | sheet steel |
| Color | Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110921EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
