NSYBP2210

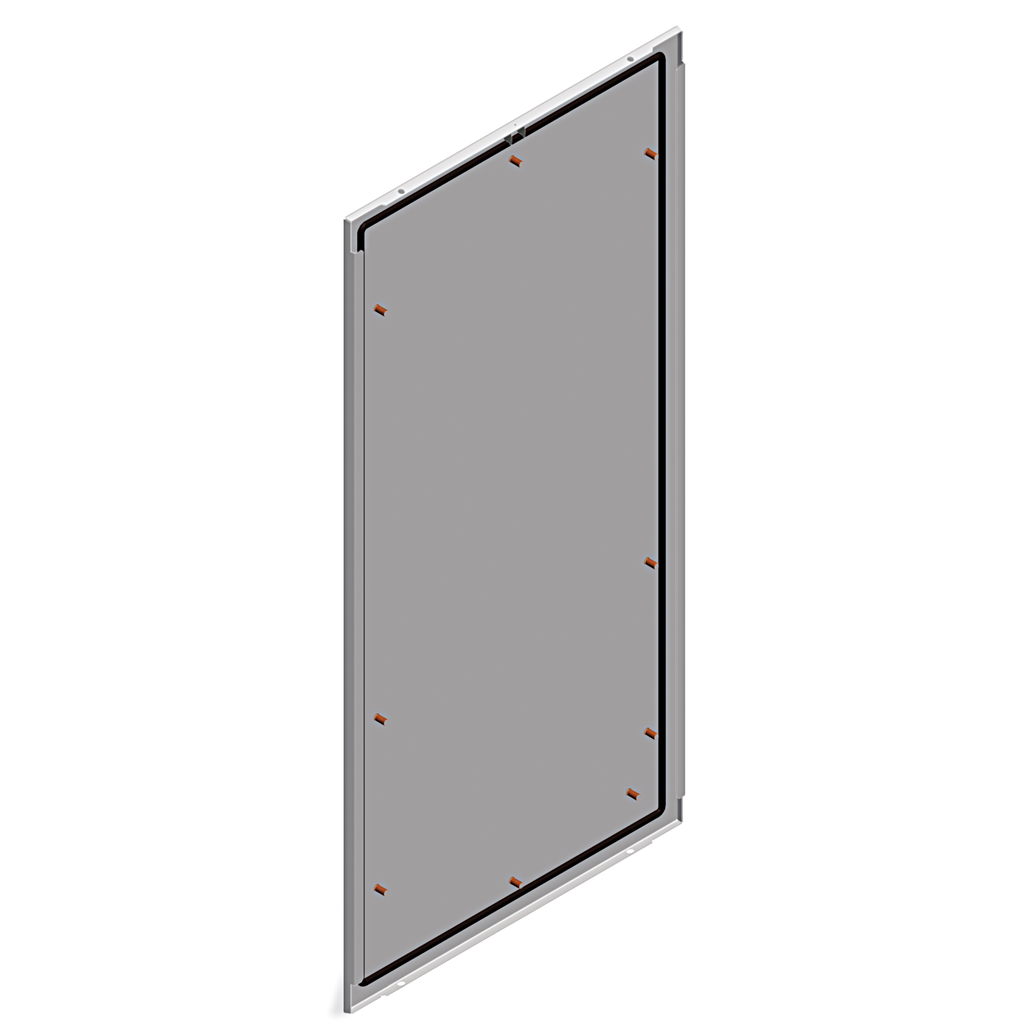

Spacial SF rear panel external fixing - 2200x1000 mm
Spacial SF Rear panel external fixing. 2199 x 1000 mm. External fixing system using captive screws (fixing elements). Steel made. Epoxy-polyester powder surface finish. Grey RAL 7035.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Spain |
|---|---|
| Enclosure Nominal Dimensions | - |
| Accessory / Separate Part Category | enclosure accessory |
| Product Or Component Type | rear panel |
| Range | PanelSeT |
| Mounting Location | rear of enclosure |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Range Compatibility | PanelSeT PanelSeT SF |
| Surface Finish | epoxy-polyester powder |
| Device Composition |
|
| Fixing Mode | by screws captive - from the outside of enclosure |
| Width | nominal: 1000 mm |
| Height | nominal: 2200 mm |
| Material | steel |
| Color | Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
