NSYAMRD20357SB

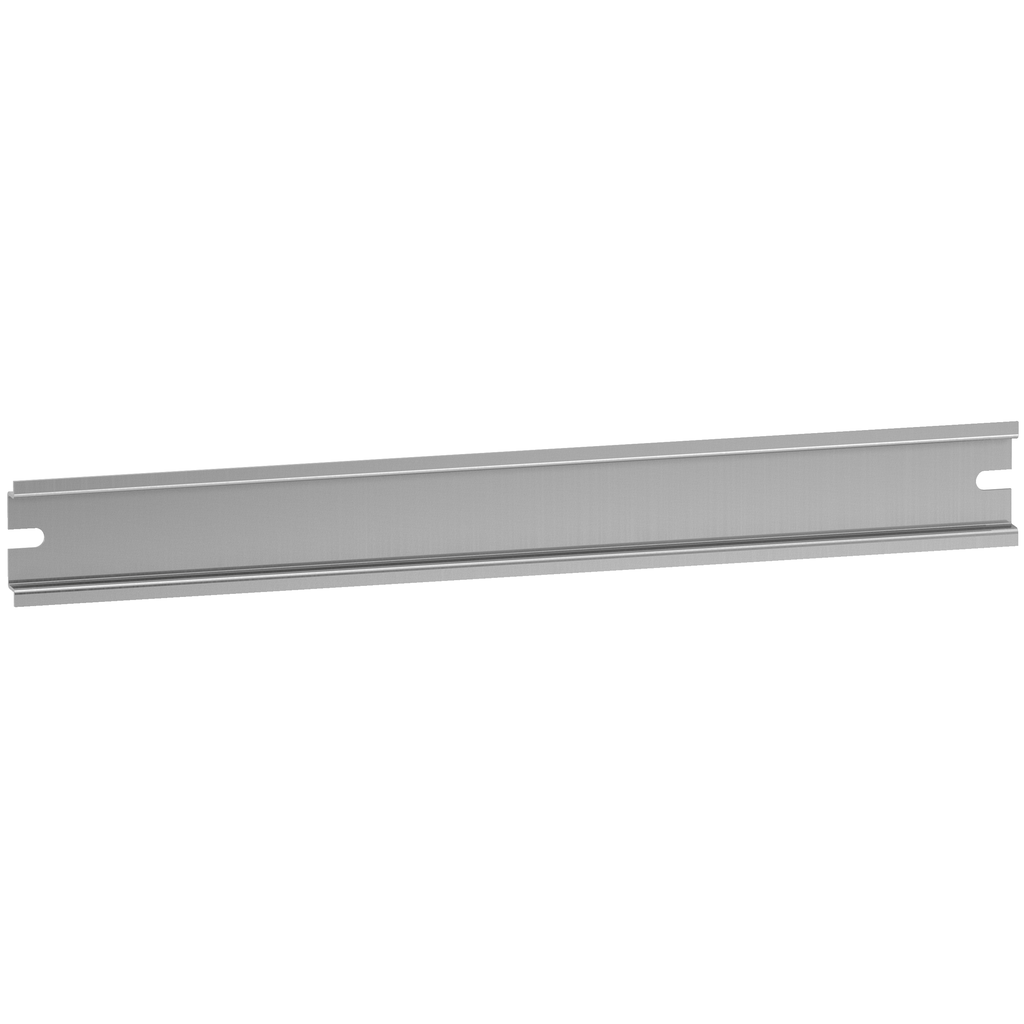

Symmetrical mounting rail H35D7.5mm - L 200mm for PanelSeT SBM
Spacial SBM symmetrical mounting rail for enclosure. 34 x 7,5 x 200 mm. DIN type of rail, with Self-tapping screw for mounting support. 1 rail composition. Comes in set of 10. Steel construction, Zinc coated surface finish.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304014 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Italy |
| Weight | 0.062 kg |
| Enclosure Nominal Dimensions | - |
| Mounting Support | self-tapping screw |
| Range Compatibility | PanelSeT PanelSeT SBM |
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | rail |
| Device Composition | 1 rail |
| Range | PanelSeT |
| Type Of Rail | symmetrical DIN |
| Quantity Per Set | set of 10 |
| Device Application | multi-purpose |
| Surface Finish | zinc coated |
| Thickness | 1 mm |
| Net Weight | 0.062 kg |
| Depth | 7.5 mm |
| Fixing Mode | by screw Ø5 mm self-tapping screws - rear of enclosure |
| Width |
|
| Height | 35 mm |
| Material | steel |
