NSYAEFPFSB

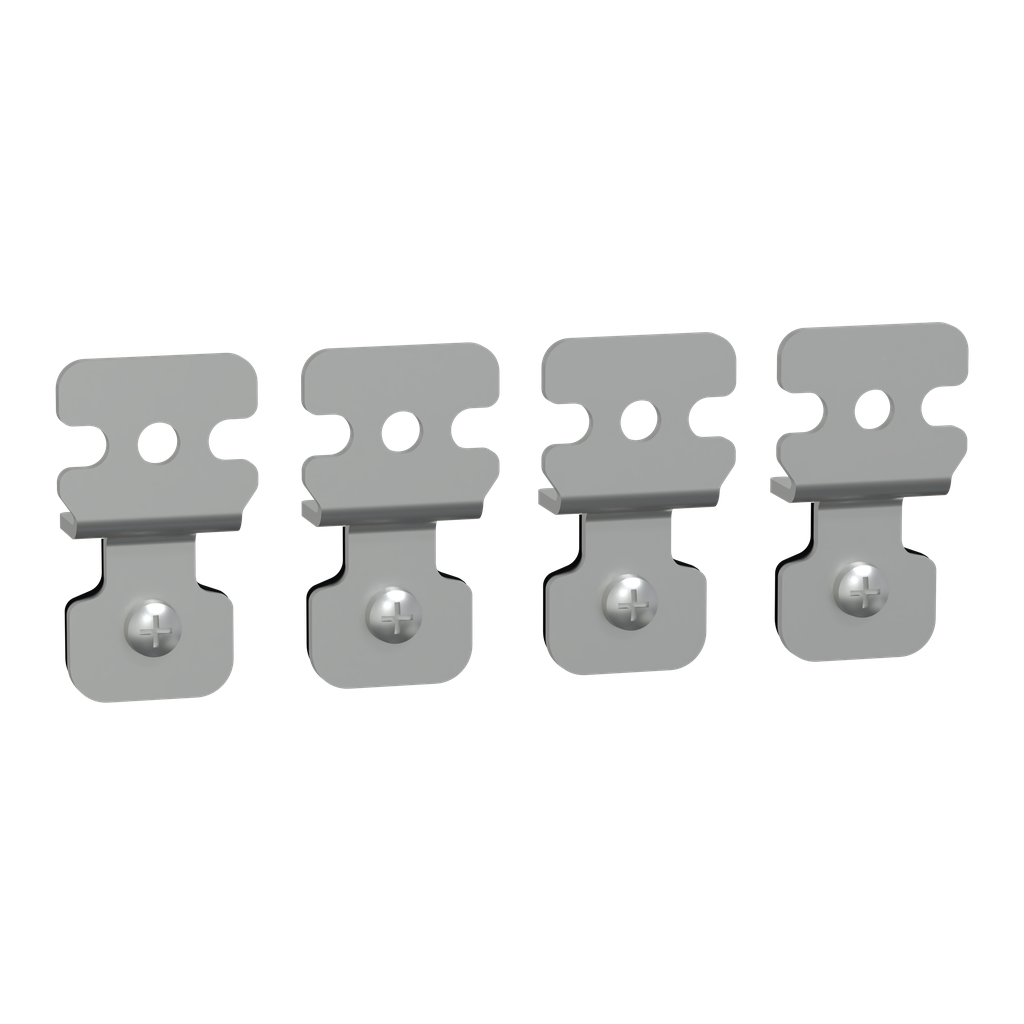

Set of 4 wall fixing lugs, made of steel. For PanelSeT SBM boxes
Spacial SBM wall fixing lugs. Height fixing center is 38.5 mm. Multi-purpose application. Mounting on rear of enclosure. Fixing by screws type M8 inside location. Permanent permissible load 70 kg horizontal/ 70 kg vertical position. Steel made, zinc coated surface finish. Set of 4.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Spain |
|---|---|
| Weight | 0.188 kg |
| Enclosure Nominal Dimensions | - |
| Range Compatibility | PanelSeT PanelSeT SBM |
| Accessory / Separate Part Category | fixing accessory |
| Product Or Component Type | wall fixing support |
| Device Composition | fixing elements |
| Range | PanelSeT |
| Mounting Location | rear of enclosure |
| Quantity Per Set | set of 4 |
| Device Application | multi-purpose |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304014 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Surface Finish | zinc coated |
| Net Weight | 0.188 kg |
| Depth | wall-enclosure separation : 12 mm |
| Fixing Mode | screwed M6 - inside |
| Permanent Permissible Load |
|
| Width | fixing center: 22 mm |
| Height | fixing center: 20 mm |
| Material | steel |
Documents
- Spacial SBM Fixings Lugs - PHA6060901-00 (pdf)
- User manual - Spacial SBM Box - S1B9729001-02 (pdf)
- Spec Sheet
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures Catalog - 9993CT0901R08_16+Body+(Web) (pdf)
