NSYAEFAHLBSC

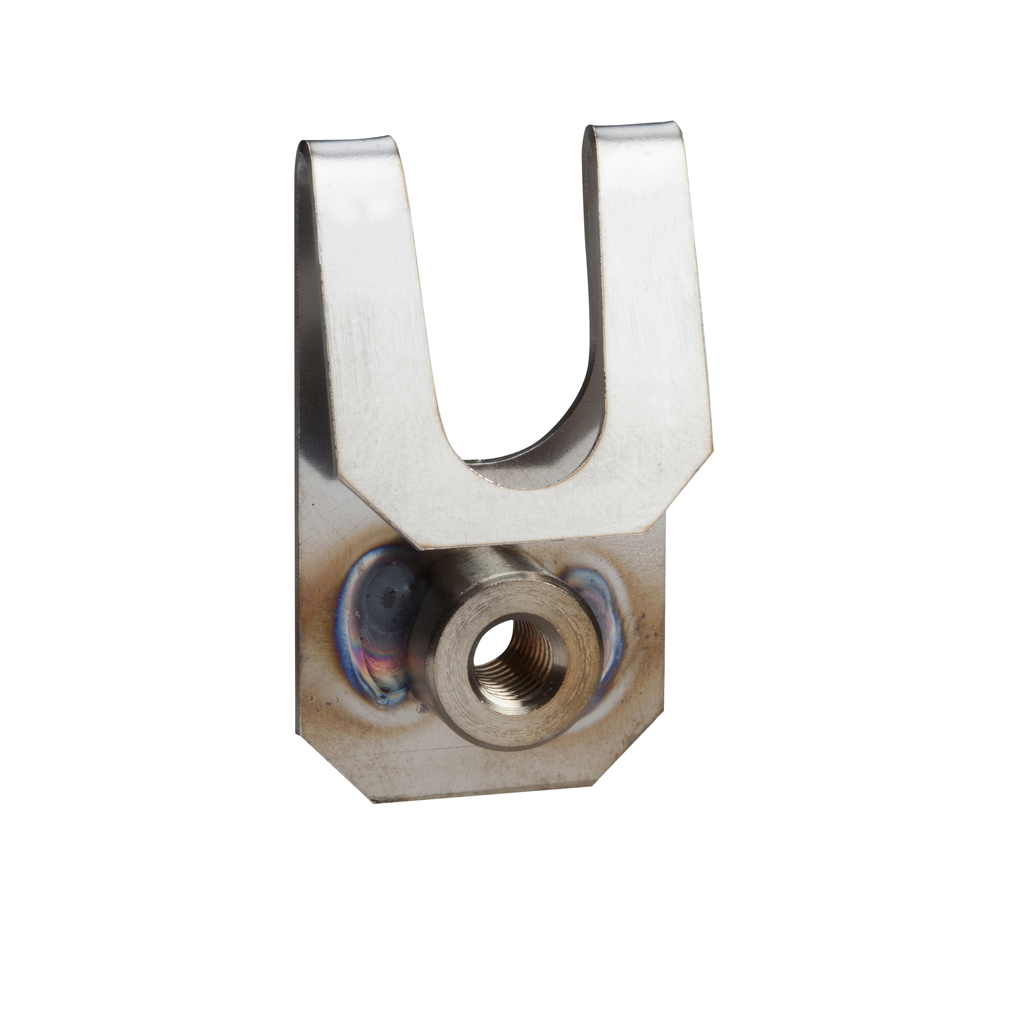

Kit for heavy load. Kit composed with 2 brackets. Maximum load 400 kg
Specifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Net Weight | 0.1 kg |
| Fixing Mode | screwed M8 - on standard lug |
| Permanent Permissible Load | 400 kg vertical position |
| Height | 45 mm |
| Material | steel |
| Country of Origin | Spain |
| Weight | 0.1 kg |
| Enclosure Nominal Dimensions | - |
| Mounting Support | on standard lug |
| Range Compatibility |
|
| Accessory / Separate Part Category | fixing accessory |
| Product Or Component Type | heavy load wall fixing support |
| Device Composition | 2 reinforcement piece |
| Range | PanelSeT |
| Mounting Location | to be mounted before installing the mounting plate in top position |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Warranty | 18 months |
