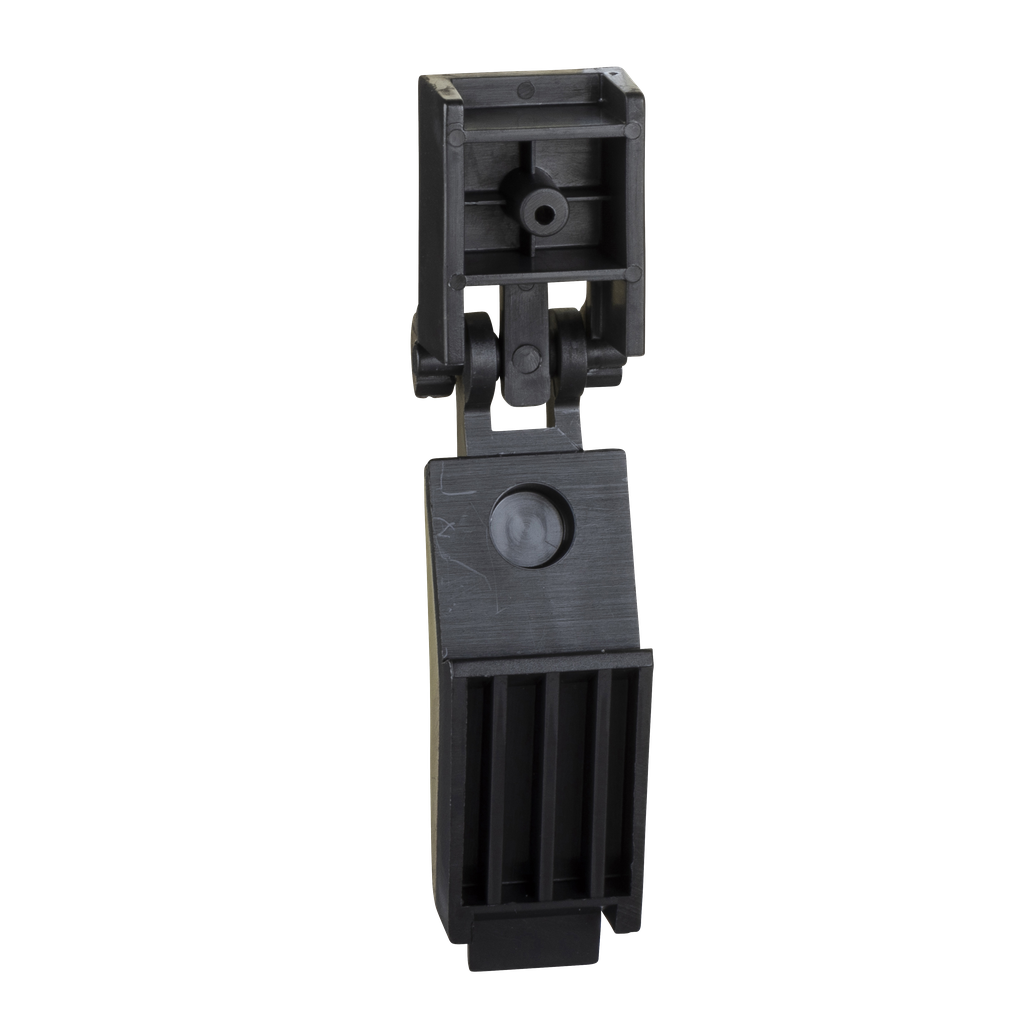

NSYAEDRS3DPA6
Door retainer system for PanelSeT S3D encl., Cannot be mounted on encl. H>400
Specifications
| Country of Origin | France |
|---|---|
| Weight | 0.013 kg |
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Product Or Component Type | door retainer |
| Device Composition | 1 x retainer |
| Range | PanelSeT |
| Mounting Location | on door reinforcement frame |
| Device Application | multi-purpose |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
| Net Weight | 0.013 kg |
| Fixing Mode | clipped - on door reinforcement frame |
| Operating Angle | 120 ° |
| Material | polyamide 6 |
| Opening Mechanism | holding system |
| Color | Black |
| Adjustment | at the required height on door reinforcement frame |
