NSYADR200

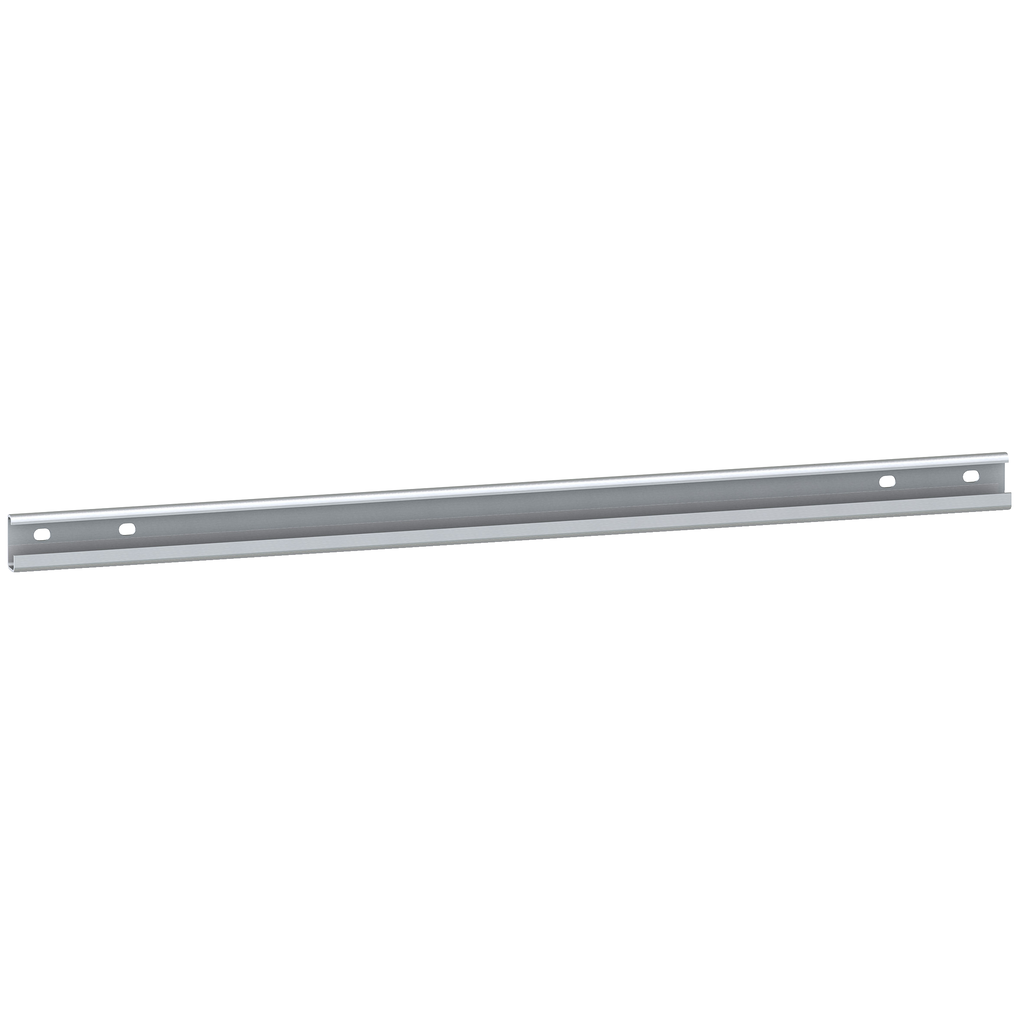

One asymmetric mounting rail 32x15 L 2000mm, Order by Multiples of 10 units
Specifications
| Country of Origin | Spain |
|---|---|
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | rail |
| Device Composition | 1 rail |
| Range | PanelSeT |
| Type Of Rail | asymmetrical DIN rail |
| Quantity Per Set | set of 10 |
| Device Application | multi-purpose |
| Adjustment |
|
| Surface Finish | not perforated |
| Thickness | 1.5 mm |
| Fixing Mode | by fixing element - structure of enclosure |
| Length | 2000 mm |
| Width | nominal: 32 mm |
| Height | nominal: 15 mm |
| Material | galvanised steel |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
