NSY2SP166

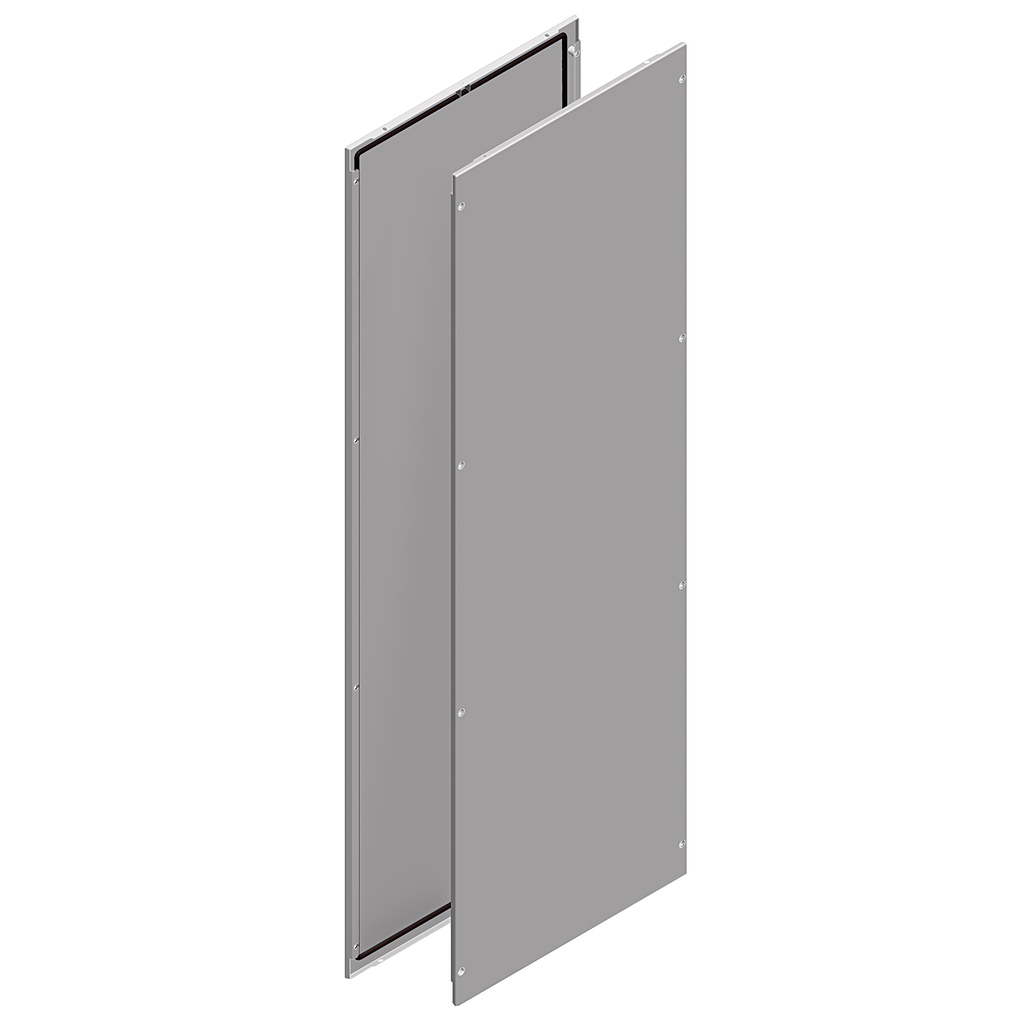

Spacial SF external fixing side panels - 1600x600 mm
Spacial SF external fixing side panels. 1599 x 600 mm. Multi-purpose application. Enclosure Accessory. Mounting on sides. Fixing mode by screws type captive, from the outside of enclosure. Steel, epoxy-polyester powder surface. Grey RAL 7035. 2 side panels and fixing elements included.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Spain |
|---|---|
| Enclosure Nominal Dimensions | - |
| Accessory / Separate Part Category | enclosure accessory |
| Product Or Component Type | side panel |
| Range | Spacial |
| Mounting Location | sides of enclosure |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Range Compatibility | Spacial Spacial SF |
| Surface Finish | epoxy-polyester powder |
| Device Composition |
|
| Fixing Mode | by screws captive - from the outside of enclosure |
| Width | nominal: 600 mm |
| Height | nominal: 1600 mm |
| Material | steel |
| Color | Gray RAL 7035) |
| Warranty | 18 months |
Documents
- Spacial SF (assembled supply) and main accessories - Instruction Sheet - 7312750001-14_web (pdf)
- Spec Sheet
- Universal Enclosures: Section 24 - Digest 179 (2024) - Universal-Enclosures-Digest-Catalog-0100CT2401-SEC-24 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Digest Catalog 28: Universal Enclosures - 0100CT1901_SEC-28 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures Catalog - 9993CT0901R08_16+Body+(Web) (pdf)
