NQSFL4

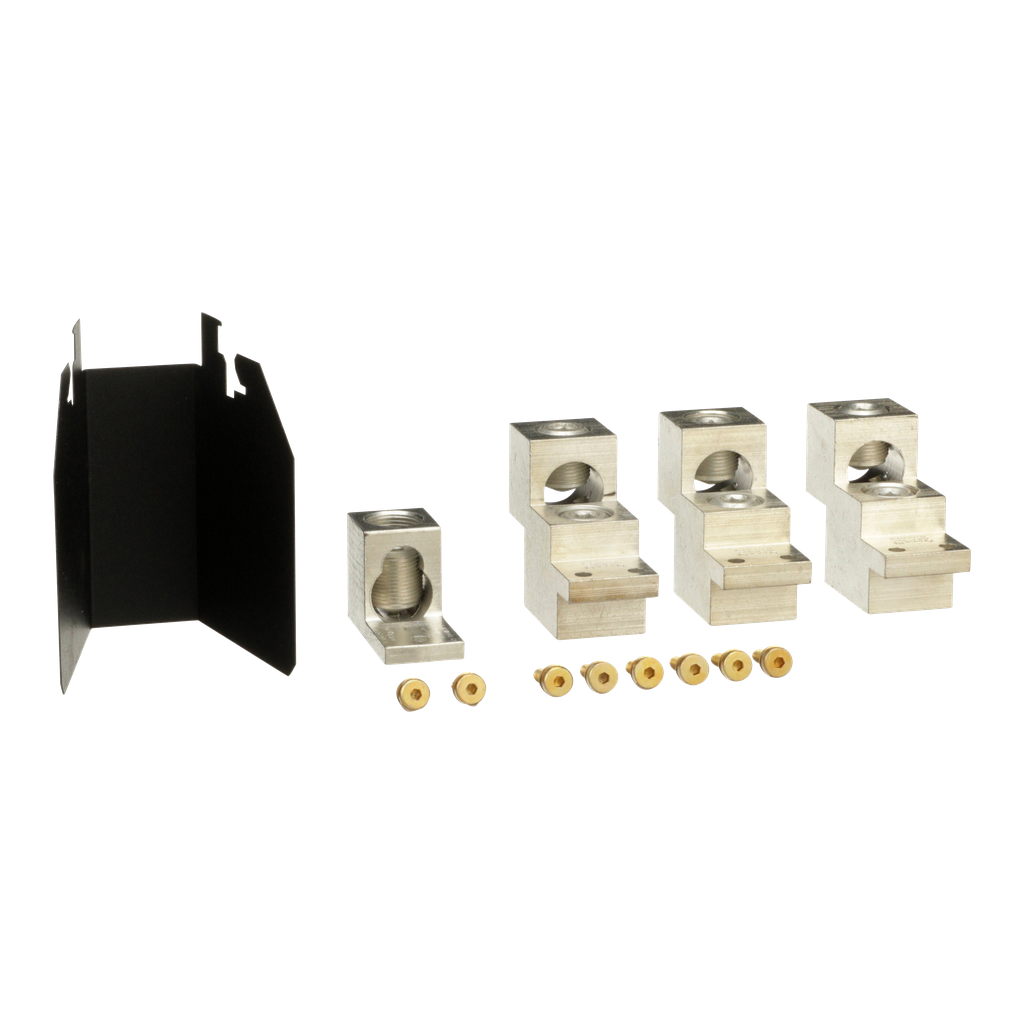

NQ Panelboard, sub feed lug kit, 400 A
NQ Panelboards provide a broad range of solutions available from distributor stock to address electrical contractor's need. NQ Panelboards have modular construction to accept field installable accessories and conversion kits. This panelboard accessory is a lug kit used for sub feed systems. This kit is rated at 400 A. Kit is UL component recognized and CSA certified by UL.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | CSA |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1404010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Tightening Torque | 6.8-7.3 N.m (AWG 1/0...750 kcmil) |
| Net Weight | 10.89 kg |
| Line Rated Current | 400-400 A |
| Country of Origin | Mexico |
| Weight | 10.89 kg |
| Product Or Component Type | sub-feed lug |
Documents
- 400 A Sub-Feed Lug Kit Installation onto an NQ Panelboard Installation Instructions - 80043-745-01 (pdf)
- NQ, NF, I-Line and QMB Panelboard Products - NQ+NF+and+I+line+and+QMB+Panels+final+-English+ (pdf)
- Spec Sheet
- Panelboards: Section 9 - Digest 179 (2024) - Panelboards-Lighting-Digest-Catalog-0100CT2401-SEC-09 (pdf)
- Digest Catalog 09: Panelboards - 0100CT1901_SEC-09 (pdf)
- Square D NQ Circuit Breaker Panelboards Catalog - 1640CT0801 (pdf)
