Panelboard accessory, NQ, subfeed breaker kit 400A, dual, H/J Frame

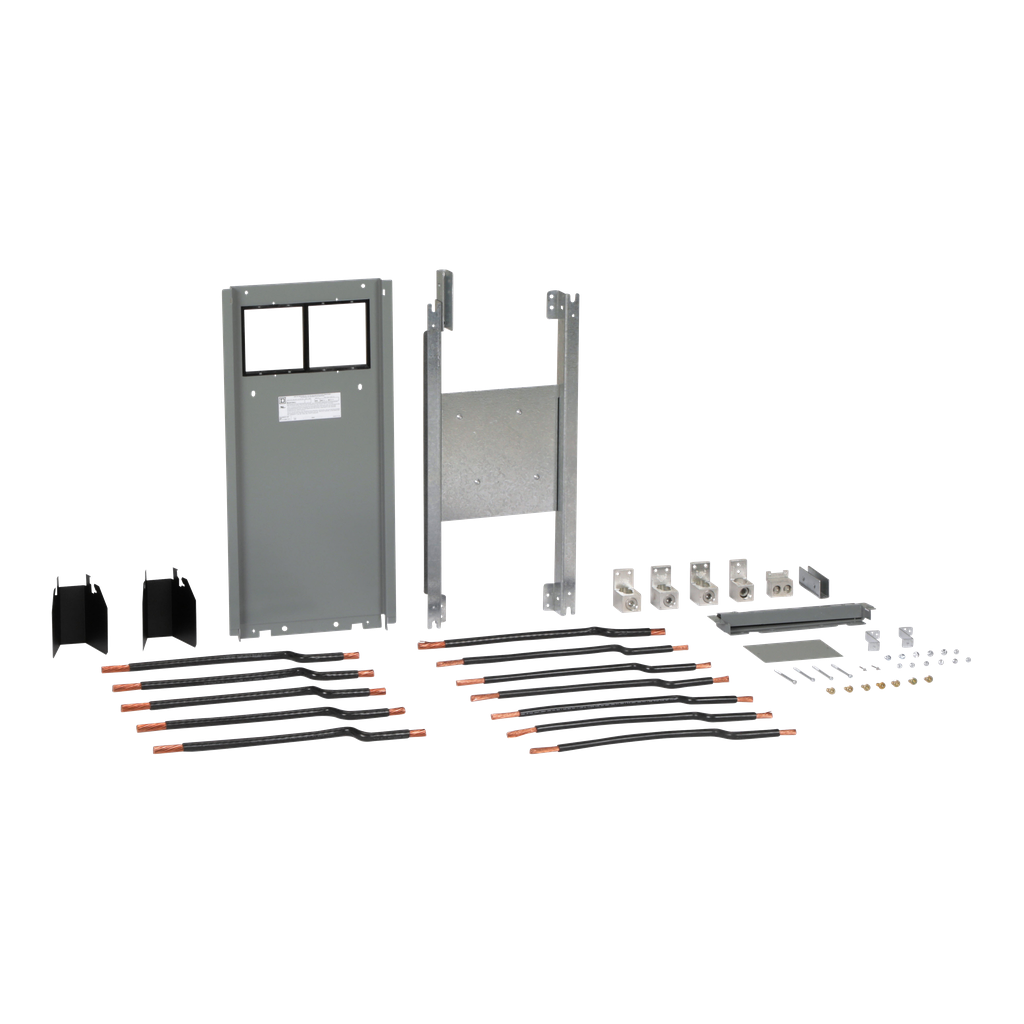

This dual subfeed circuit breaker and adapter kit is an accessory of the Schneider Electric™ NQ 240VAC lighting and appliance panelboards, allowing greater power routing flexibility. The kit provides the option of easily connecting circuit breakers downstream of a main lug or main circuit breaker panelboard. The kit includes a subfeed circuit breaker deadfront cover, support brackets, mounting pan assembly, rail splice, closing plate, neutral and load lugs, lug barriers, branch neutral lug insulator, main lug wires, and tapping screws. The structure accepts 2 or 3 pole breakers and can fit one or two PowerPact H- or J-Frame molded case circuit breakers rated up to 225A. The kit is compliant with CULus standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | CSA |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1404010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Tightening Torque | 6.8-7.3 N.m (AWG 1/0...750 kcmil) |
| Net Weight | 9.58 kg |
| Line Rated Current | 400-400 A |
| Country of Origin | United States |
| Weight | 9.58 kg |
| Product Or Component Type | installation kit |
