NQMB2Q
Panelboard accessory, NQ, main breaker kit, 225A, Q Frame

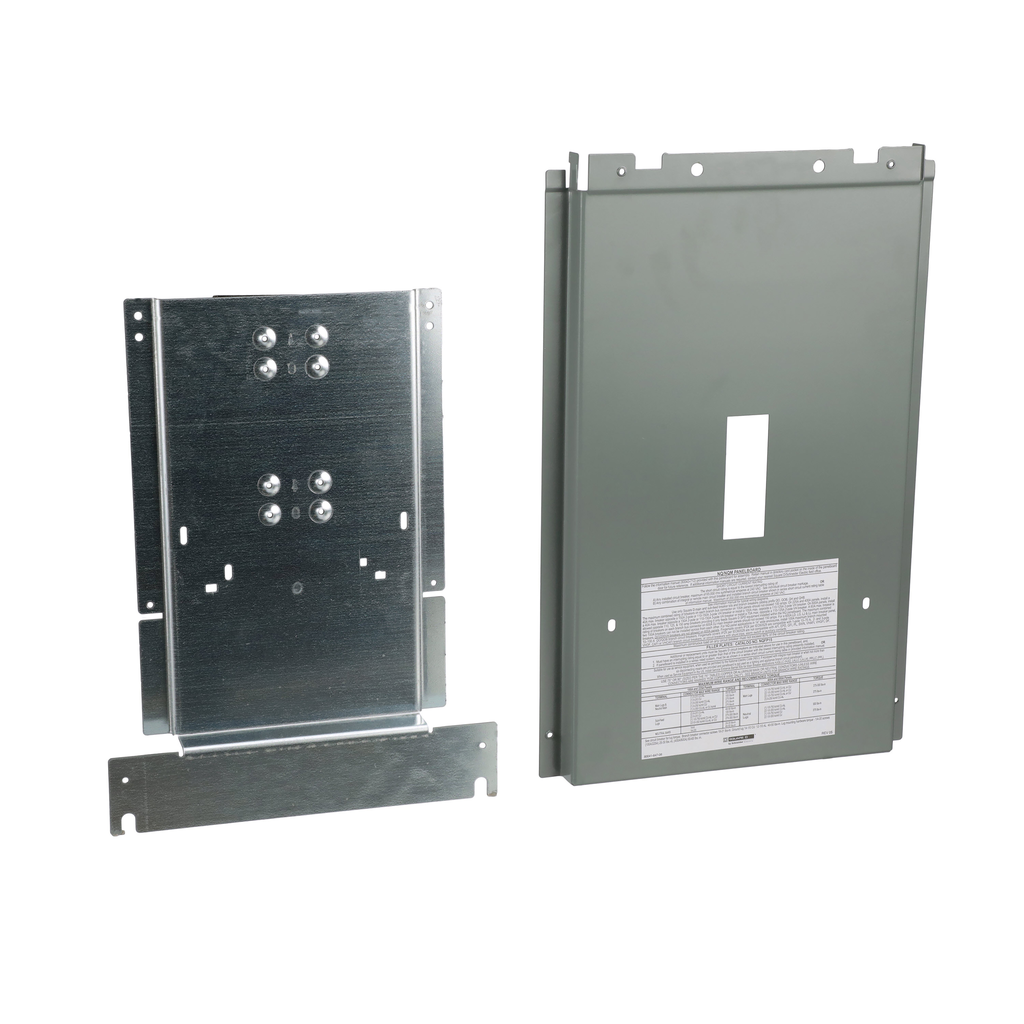

NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboards are convertible from main lug to main breaker. This kit is used to install a 225A Q Frame circuit breaker. The kit includes a mounting pan, four cables, deadfront brackets and cover, and the Q Frame circuit breaker. The kit complies with UL standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | CSA |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1404010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Tightening Torque | 31-31 N.m |
| Product Destination | QB/QD/QJ/QL circuit breaker 225-225 A |
| Number Of Spaces |
|
| Country of Origin | Mexico |
| Circuit Breaker Type | QB |
| Accessory / Separate Part Category | installation accessory |
| Product Or Component Type | installation kit |
| Total Number Of Wires | 3 |
| Provided Equipment | connector 6 |
Documents
- Q-Frame Main Circuit Breaker (225 A Max.) and Adapter Kit Installation Instructions - 80043-722-02 (pdf)
- Spec Sheet
- Panelboards: Section 9 - Digest 179 (2024) - Panelboards-Lighting-Digest-Catalog-0100CT2401-SEC-09 (pdf)
- Digest Catalog 09: Panelboards - 0100CT1901_SEC-09 (pdf)
- Square D NQ Circuit Breaker Panelboards Catalog - 1640CT0801 (pdf)
