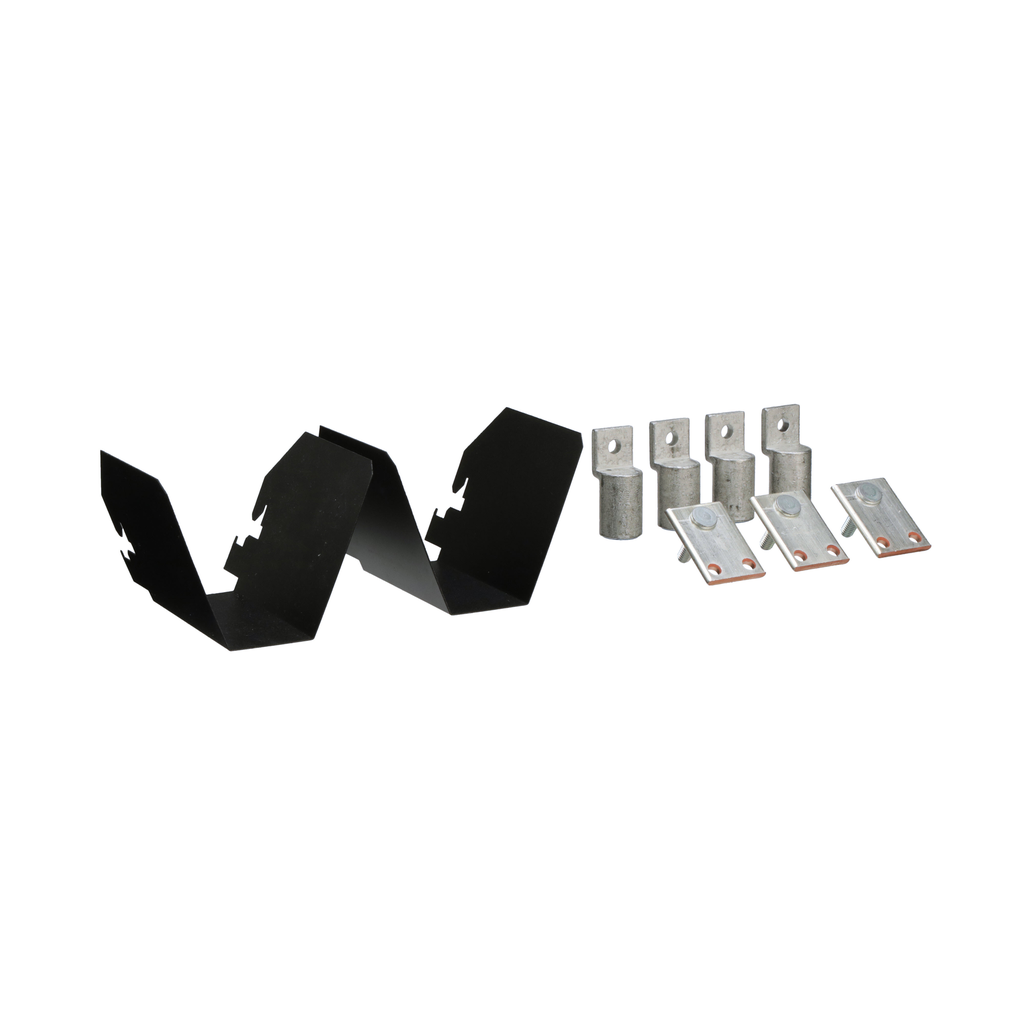

Panelboard accessory, NQ, lug kit, compression, 225A, aluminum
NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboard interiors are field convertible to top or bottom feed. NQ Panelboards are convertible from main lug to main breaker. NQ Panelboards provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. This panelboard accessory is a compression lug kit. This compression lug kit is rated at 225A and is aluminum. This lug will accept 250 kcmil to 350 kcmil wire. This compression lug kit is CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | CSA |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1404010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Tightening Torque | 9.0-19.8 N.m (AWG 6...350 kcmil) |
| Material | aluminium |
| Net Weight | 2.07 kg |
| Line Rated Current | 225-225 A |
| Awg Gauge | 250...350 kcmil |
| Rated Voltage | 240-240 V AC |
| Country of Origin | United States |
| Weight | 2.07 kg |
| Product Or Component Type | compression lug |
