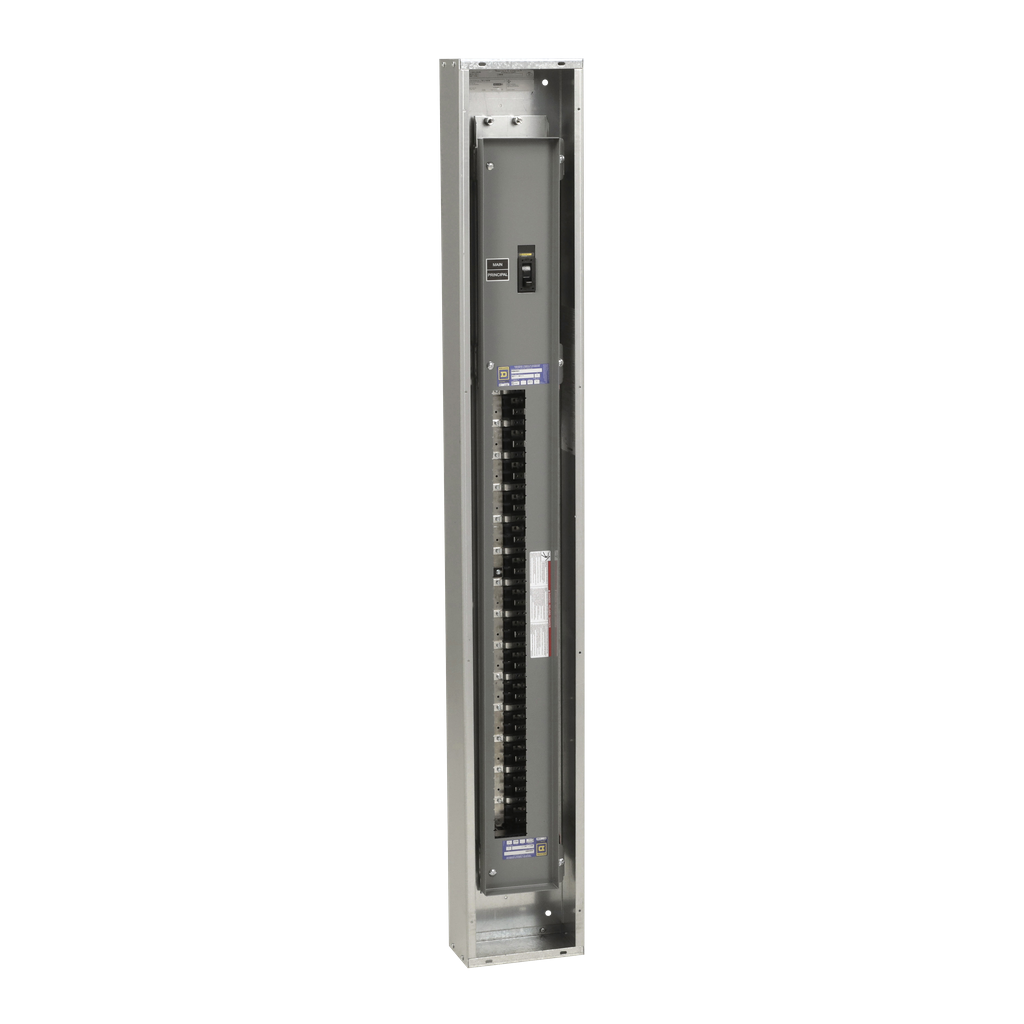

Panelboard interior, NQ, main breaker, 225A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC, column width
NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboard interiors are field convertible to top or bottom feed. NQ Panelboards are convertible from main lug to main breaker. NQ Panelboards provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. This main breaker interior provides protection for your commercial and industrial applications. The main breaker lugs are rated at 225A, 120/240 VAC 3 phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 42 spaces and has a copper bus bar. Interior is for QOB, QOBVH and QHB branch circuit breakers. This NQ panelboard interior is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Standards |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1404010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Phase | 3 phase 4 wires |
| Tightening Torque |
|
| [Iu] Rated Interrupted Current |
|
| Number Of Spaces | 42 |
| Enclosure Nominal Height | 62 in |
| Net Weight | 3.175 kg |
| Enclosure Nominal Depth | 5 in NEMA Type 1 |
| Line Rated Current | 225 A |
| Enclosure Nominal Width | 8.625 in |
| [Ue] Rated Operational Voltage |
|
| Country of Origin | Mexico |
| Width | 8.625 in |
| Height | 62 in |
| Weight | 3.175 kg |
| Circuit Breaker Type |
|
| Material | copper |
| Load Center Type | main breaker |
