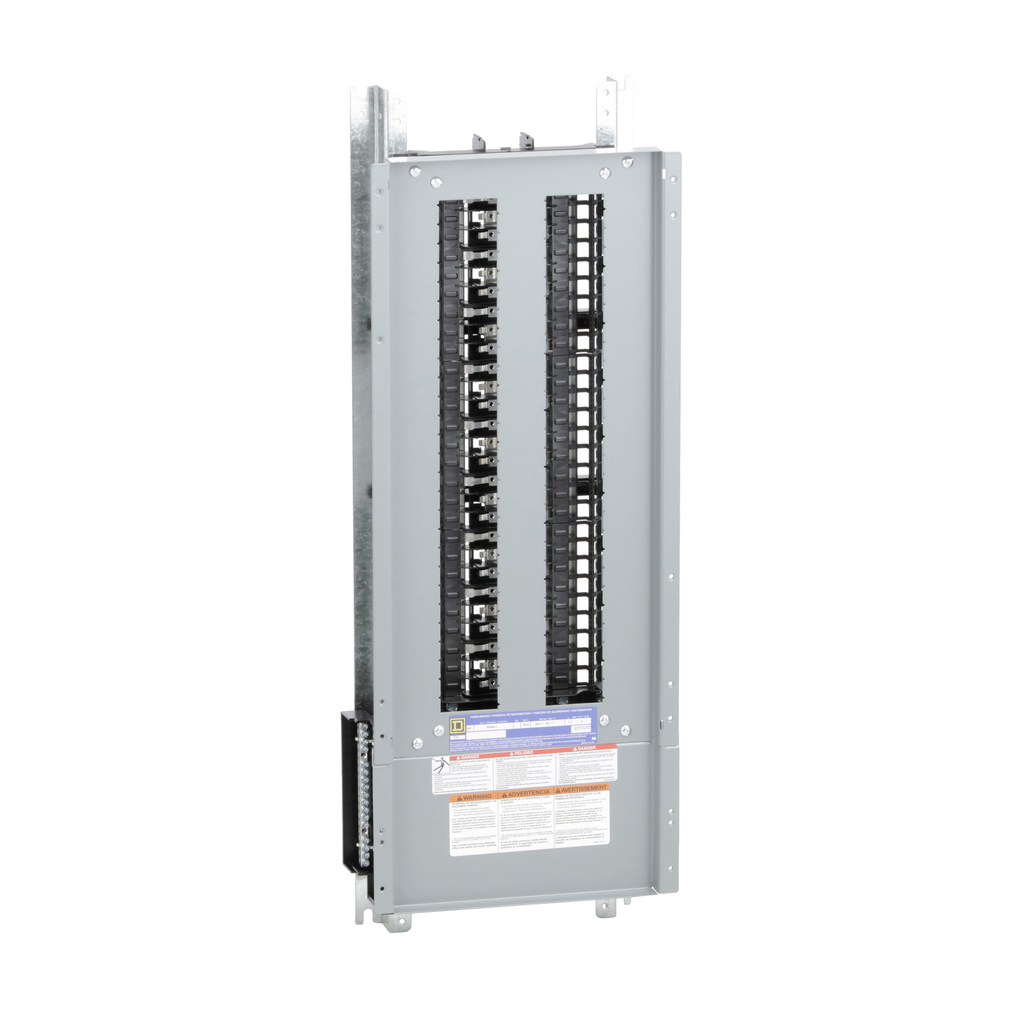

NQ454L2 - Panelboard interior, NQ, main lugs, 225A, Al bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC

NQ454L2

Panelboard interior, NQ, main lugs, 225A, Al bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC

NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboards provide 200% rated neutrals for non-linear loads. NQ Panelboards are convertible from main lug to main breaker. This NQ Panelboard interior has a main lug and is rated at 225 A and 3 phase. With 4 wire system with 54 circuits and aluminum busbar, these interiors provide protection for your commercial and industrial applications. NQ Panelboard interiors are field convertible to top or bottom feed. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Standards	UL CSA
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1404019EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	N/A
Eu Rohs Directive	Compliant
Height	33.00 in
Phase	3 phase 4 wires
Connections - Terminals	lug line AWG 6...350 kcmil aluminium lug neutral AWG 6...350 kcmil aluminium
Tightening Torque	4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0) 11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0) 31.07-31.07 N.m 13.30-177.3 mm² (AWG 6...350 kcmil) 31.07-31.07 N.m 13.30-126.7 mm² (AWG 6...250 kcmil) 31.07-31.07 N.m 107.2-152 mm² (AWG 4...300 kcmil)
[Iu] Rated Interrupted Current	10 kA 22 kA 65 kA
Number Of Spaces	54
Enclosure Nominal Height	38 in
Enclosure Nominal Depth	5.75 in NEMA 1 6.5 in NEMA 3R/5/12
Line Rated Current	225 A
Width	10.44 in
Enclosure Nominal Width	20 in
[Ue] Rated Operational Voltage	240 V AC 48 V DC
Country of Origin	United States
Width	20 in
Height	38 in
Circuit Breaker Type	QOB QOB-VH QHB
Product Or Component Type	interiors
Material	aluminium
Load Center Type	main lugs

Panelboard interior, NQ, main lugs, 225A, Al bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
