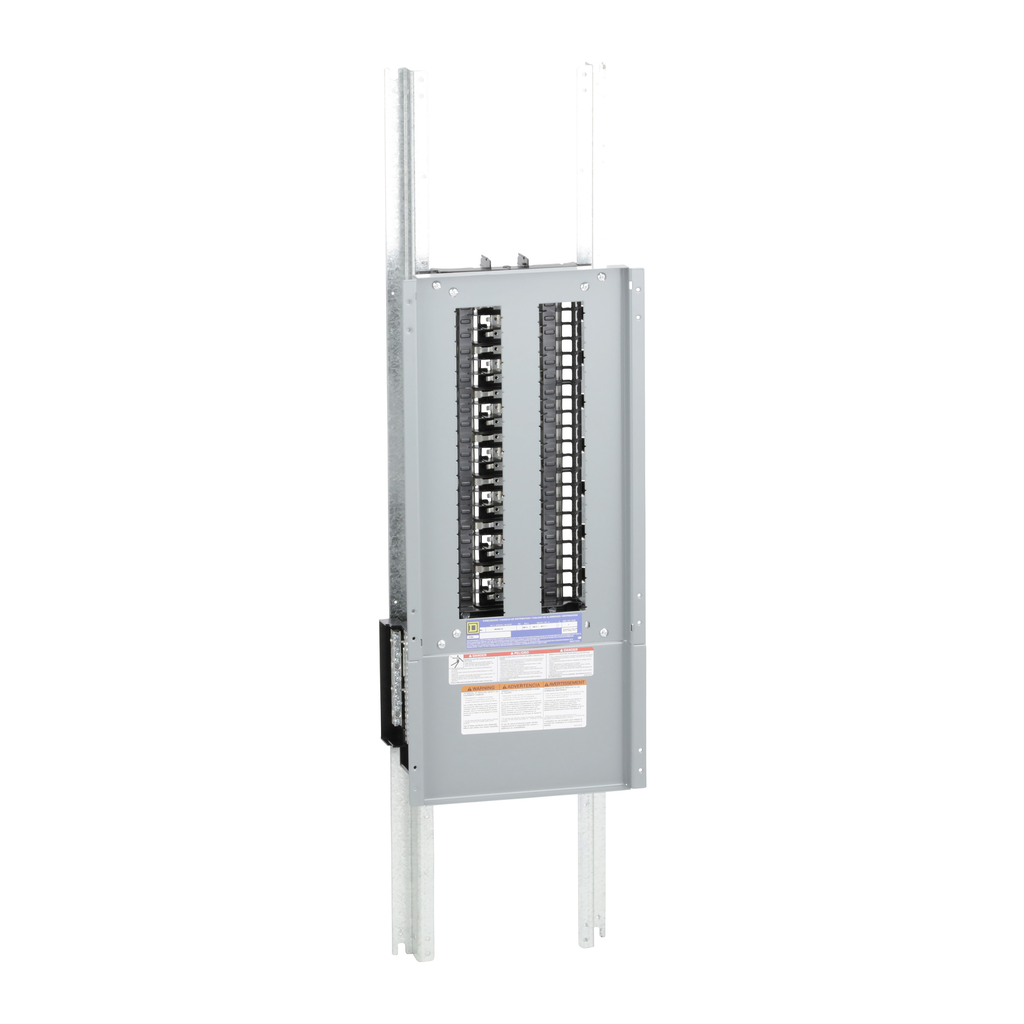

NQ442L4C - Panelboard interior, NQ, main lugs, 400A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC

NQ442L4C

Panelboard interior, NQ, main lugs, 400A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC

This Schneider Electric OsiSense electronic pressure switch has a 4 digit 7-segment display, hysteresis switching mode. It has a pressure rating of -1 bar. It has a supply voltage of 24Vdc and 2 x solid state outputs (pnp). 0High accuracy for more stable control on your critical processes. Simple reading of current value and threshold with clear LED display. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Standards	CSA UL
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1404010EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Height	45 in
Phase	3 phase 4 wires
Connections - Terminals	lug line AWG 1/0...750 kcmil aluminium lug neutral AWG 1/0...750 kcmil aluminium
Tightening Torque	31.07-33.90 N.m 53.48-380 mm² (AWG 1/0...750 kcmil) 31.07-33.90 N.m 53.48-177.3 mm² (AWG 1/0...350 kcmil) 62.14-62.14 N.m 53.48-380 mm² (AWG 1/0...750 kcmil) 62.14-62.14 N.m 53.48-152 mm² (AWG 1/0...300 kcmil) 42.37-42.37 N.m 53.48-380 mm² (AWG 1/0...750 kcmil) 42.37-42.37 N.m 53.48-152 mm² (AWG 1/0...300 kcmil)
[Iu] Rated Interrupted Current	10 kA 22 kA 65 kA
Number Of Spaces	42
Enclosure Nominal Height	50 in
Net Weight	12.09 kg
Enclosure Nominal Depth	5.75 in NEMA 1 6.5 in NEMA 3R/5/12
Line Rated Current	400 A
Width	10.44 in
Enclosure Nominal Width	20 in
[Ue] Rated Operational Voltage	240 V AC 48 V DC
Country of Origin	United States
Width	20 in
Height	50 in
Weight	12.09 kg
Circuit Breaker Type	QOB QOB-VH QHB
Product Or Component Type	interiors
Material	copper
Load Center Type	main lugs

Panelboard interior, NQ, main lugs, 400A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
