NFALV2

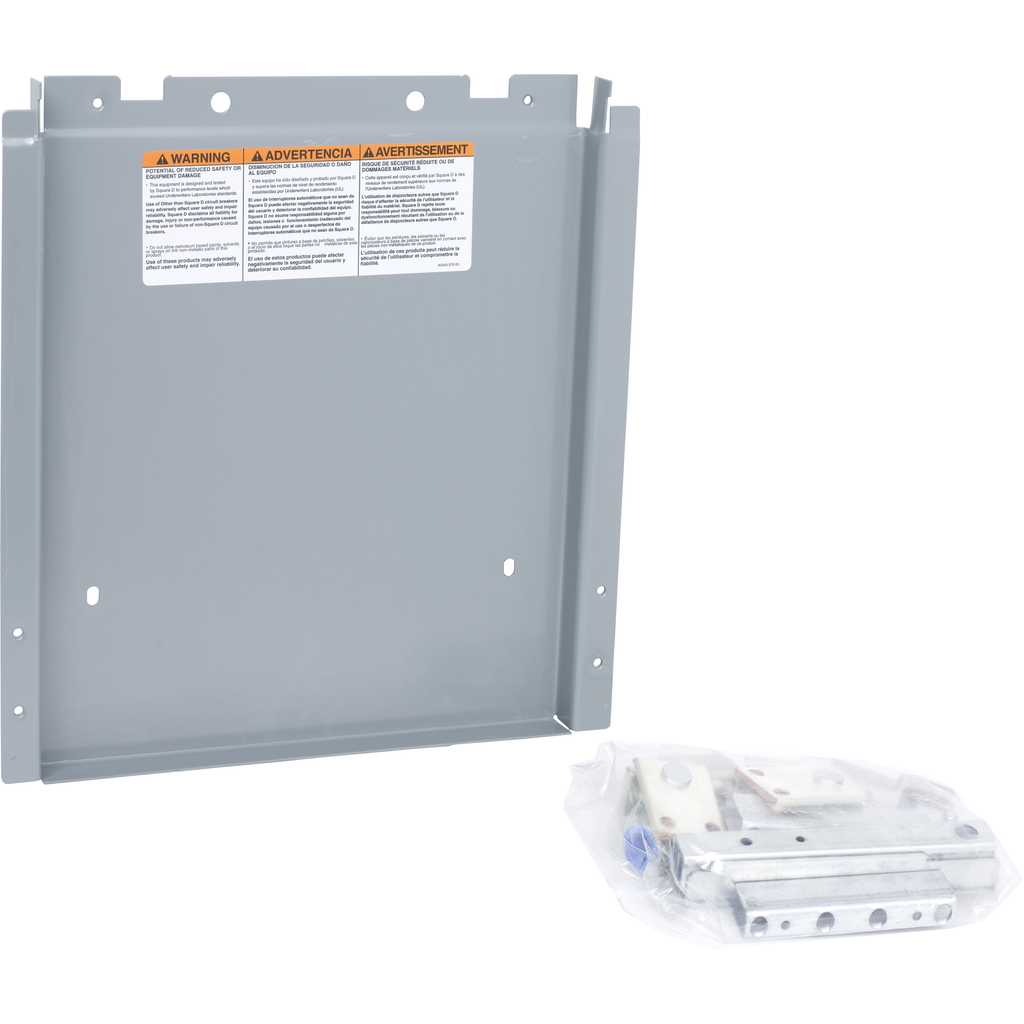

Panelboard accessory, NF, lug kit, compression, 250A, aluminum
NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards have modular construction to accept field installable accessories and conversion kits. This compression lug kit is for the main lugs of the NF interior. These aluminum compression lugs are rated at 250A. Each compression lug will accept one 250 kcmil to 350 kcmil wire.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Tightening Torque | 9.0-19.8 N.m 126.7-177.3 mm² (250...350 kcmil) |
| Material | aluminium |
| Line Rated Current | 250-250 A |
| Awg Gauge | 250...350 kcmil 1 aluminium/copper |
| Country of Origin | United States |
| Product Or Component Type | compression lug |
| Quantity Per Set | set of 1 |
| Provided Equipment |
|
| Warranty | 18 months |
Documents
- NF/NFOM Panelboards Installation Instructions and User Guide (80043-741) - 80043-741-03 (pdf)
- NF Panelboard Crimp Main Lug Kit - Installation Instructions - 80043-762-01 (pdf)
- NQ, NF, I-Line and QMB Panelboard Products - NQ+NF+and+I+line+and+QMB+Panels+final+-English+ (pdf)
- Spec Sheet
- Panelboards: Section 9 - Digest 179 (2024) - Panelboards-Lighting-Digest-Catalog-0100CT2401-SEC-09 (pdf)
- Square D NF Circuit Breaker Panelboards Catalog - 1670CT0701 (pdf)
- Digest Catalog 09: Panelboards - 0100CT1901_SEC-09 (pdf)
