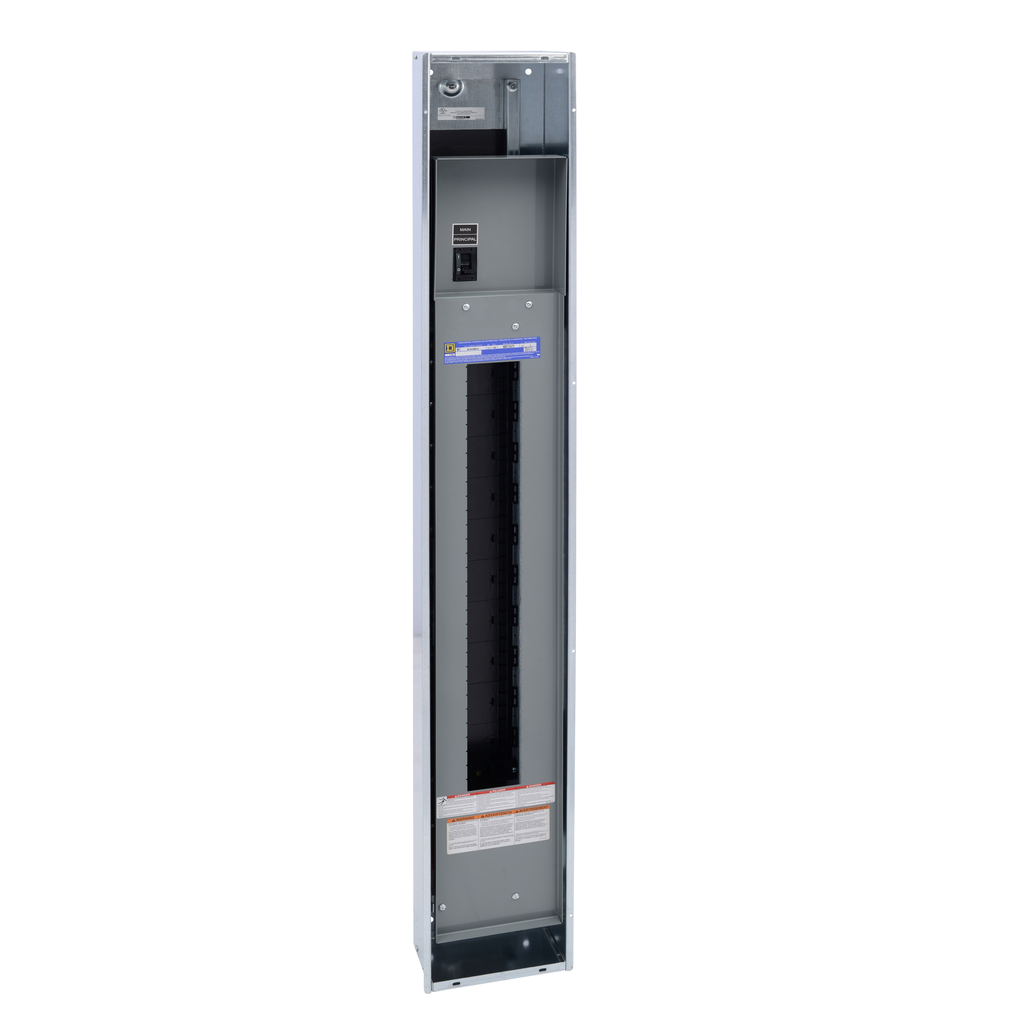

NF8442M2JDC - Panelboard interior, NF, main breaker, 225A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 480Y/277 VAC bolt on, J Frame

NF8442M2JDC

Add to Quote Catalogue

Standards	CSA UL
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1404020EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	N/A
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Height	71 in
Phase	3 phase 4 wires
Tightening Torque	4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0) 11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0) 31.07-31.07 N.m 13.30-177.3 mm² (AWG 6...350 kcmil) 31.07-31.07 N.m 13.30-126.7 mm² (AWG 6...250 kcmil) 31.07-31.07 N.m 107.2-152 mm² (AWG 4...300 kcmil)
[Iu] Rated Interrupted Current	65 kA
Number Of Spaces	42
Enclosure Nominal Height	85 in
Enclosure Nominal Depth	5.65 in NEMA 1
Line Rated Current	225 A
Width	10.44 in
Enclosure Nominal Width	8.625 in
[Ue] Rated Operational Voltage	600Y/347 V AC
Country of Origin	United States
Width	8.625 in
Height	85 in
Circuit Breaker Type	EDB/EDG/EDJ
Material	copper
Load Center Type	main breaker
