MPSF12
MP Meter Pak, meter center, flange kit, 2 position meter centers, 125 A

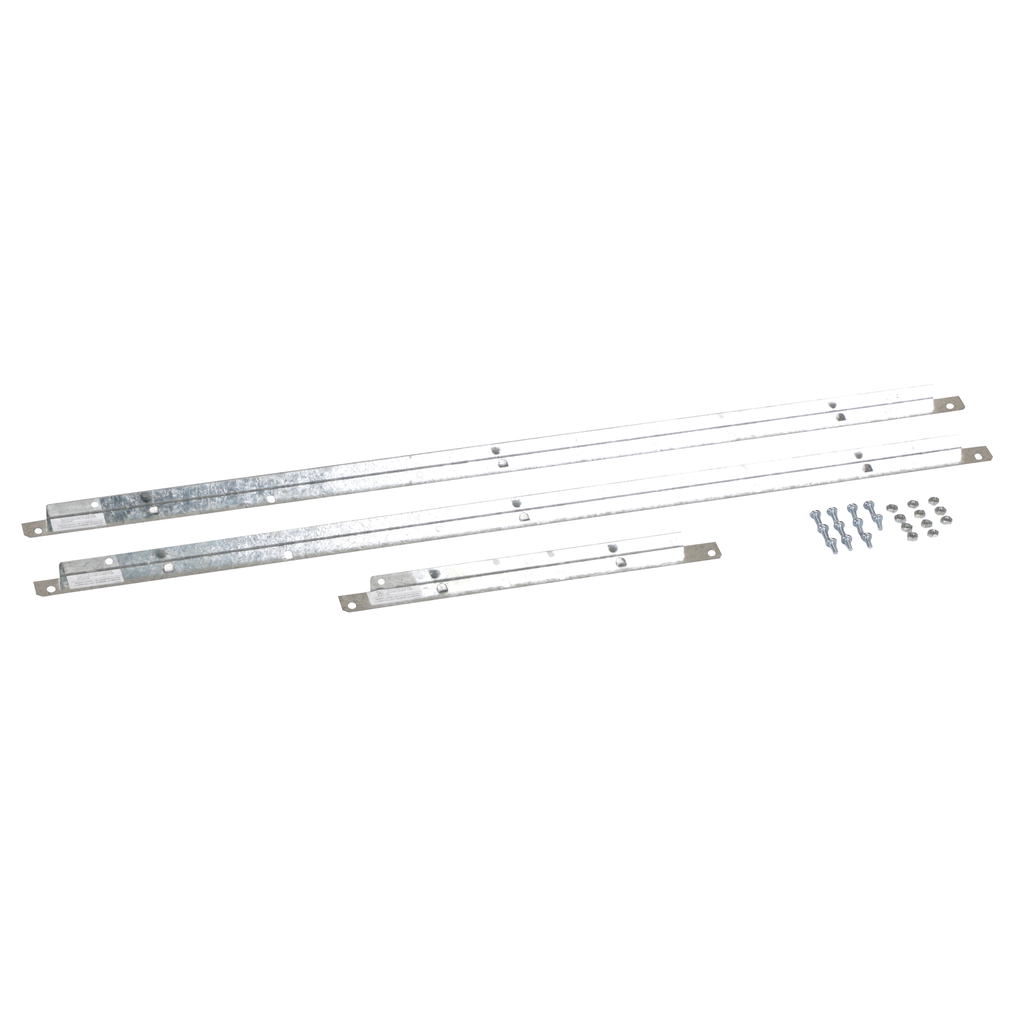

MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter center accessory is a semi flush flange kit for 125 A 2 position meter centers. Used with MP22125, MPH22125 or MPR22125.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Mexico |
|---|---|
| Width | 43.2 in |
| Height | 3.6 in |
| Weight | 46 lbs |
| Range Of Product | Meter-Pak |
| Product Certifications | UL Listed |
| Height | 3.6 in |
| Device Mounting | surface |
| Net Weight | 46 lb(US) |
| Enclosure Material | steel |
| Width | 43.2 in |
| Depth | 9.2 in |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
Documents
- Spec Sheet
- Meter-Pak Wireway to Meter-Pak Devices Installation Instructions - 73298-753-01 (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- Changes to the 2020 National Electrical Code eGuide Brochure - 998-21037672_GMA-US_NEC+2020+eGuide (pdf)
- Metering Equipment: Section 2 - Digest 179 (2024) - Metering-Equipment-Digest-Catalog-0100CT2401-SEC-02 (pdf)
- Square D MP Meter-Pak Meter Centers Catalog - 4141CT0701 (pdf)
- Square D EZ Meter-Pak Meter Centers Catalog - 4100CT0701 (pdf)
- Digest Catalog 02: Metering Equipment - 0100CT1901_SEC-02 (pdf)
