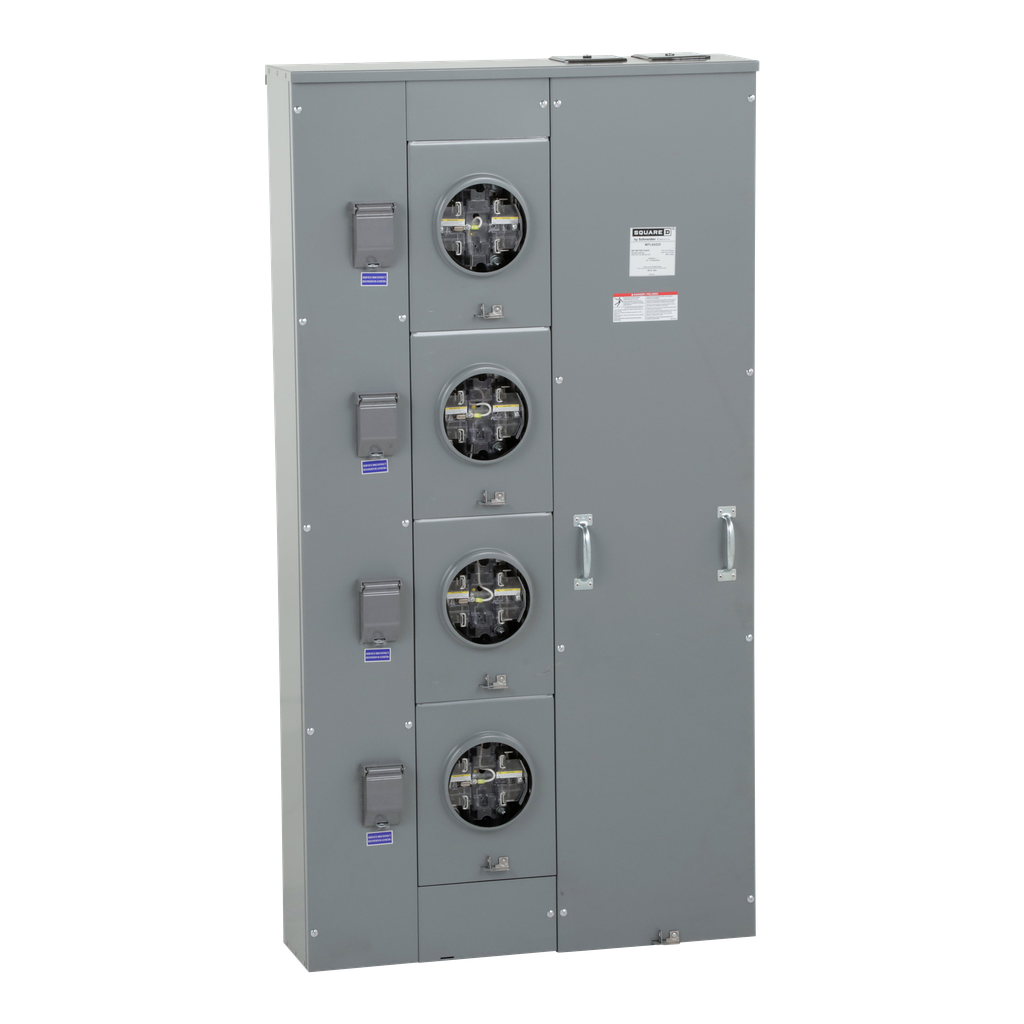

Meter center, MP Meter-Pak, 4 sockets, lever bypass, jaw release, 5 jaws, 600A bus, 225A max breaker rating, ringless
MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations are available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPL meter center has four ringless meter sockets with lever bypass and a 5 jaw socket. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 600 A. The maximum tenant main lugs amperage is 225 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 67.37 inches tall, 35.37 inches wide and 9.62 inches deep. This MPL meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MPL meter center unit is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Product Certifications | UL Listed |
| Service Feed Location |
|
| Height | 67.37 in |
| Range Of Product | Meter-Pak |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Bypass Type | lever bypass |
| Bus Rated Current | 600 A |
| Phase | 1 phase |
| Main Rated Current |
|
| Nema Degree Of Protection | NEMA 3R |
| Product Mounting | surface |
| Material | aluminium: busbar |
| Enclosure Material | steel |
| Awg Gauge |
|
| Width | 35.37 in |
| Wiring Configuration | 3-wire |
| Depth | 9.62 in |
| Country of Origin | United States |
| Width | 35.37 in |
| Height | 67.37 in |
| Main Type | Main Lugs |
| Meter Socket Rated Current | 225 A |
| Number Of Meter Sockets | 4 |
| Product Or Component Type | Meter Center |
| Number Of Jaws | 5 |
| Meter Socket Type | ringless |
| Warranty | 18 months |
