MP33125

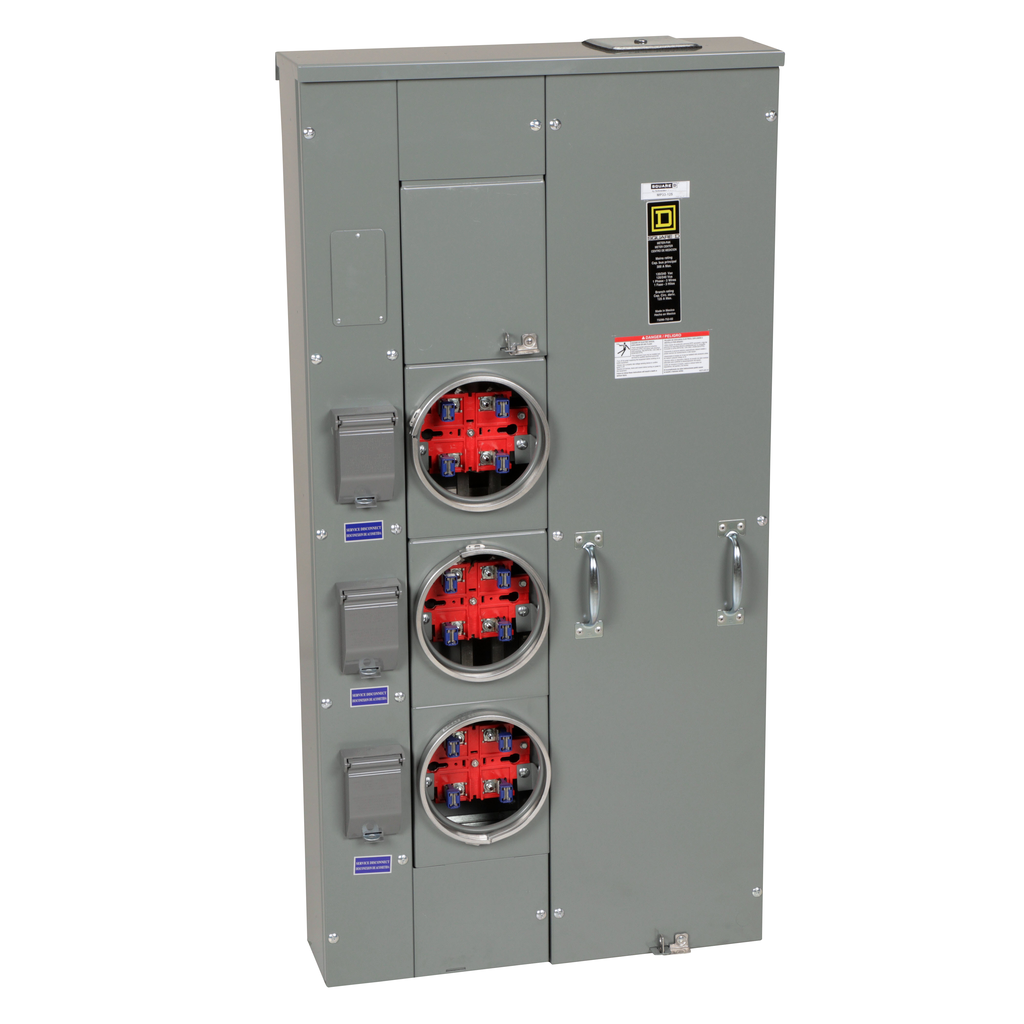

Meter center, MP Meter-Pak, 3 sockets, no bypass, 4 jaws, 300A bus, 125A max breaker rating, ringed
Square D brand MP Meter Pak meter centers offer a wide range of multi metering applications. UL Listed NEMA Type 3R construction meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures. This creates lighter and more compact branch enclosures. This MP meter pak is rated at 125 A with 3 positions. It has a 300 A main bus. This system is ring type.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Service Feed Location |
|
| Height | 48.12 in |
| Range Of Product | Meter-Pak |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Bypass Type | no bypass |
| Bus Rated Current | 300 A |
| Phase | 1 phase |
| Main Rated Current | 300 A |
| Nema Degree Of Protection | NEMA 3R |
| Product Mounting | surface |
| Material | aluminium: busbar |
| Enclosure Material | steel |
| Awg Gauge |
|
| Width | 24.34 in |
| Wiring Configuration | 3-wire |
| Depth | 7.28 in |
| Country of Origin | Mexico |
| Width | 24.34 in |
| Height | 48.12 in |
| Main Type | Main Lugs |
| Meter Socket Rated Current | 125 A |
| Number Of Meter Sockets | 3 |
| Product Or Component Type | Meter Center |
| Number Of Jaws | 4 |
| Meter Socket Type | ringed |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
