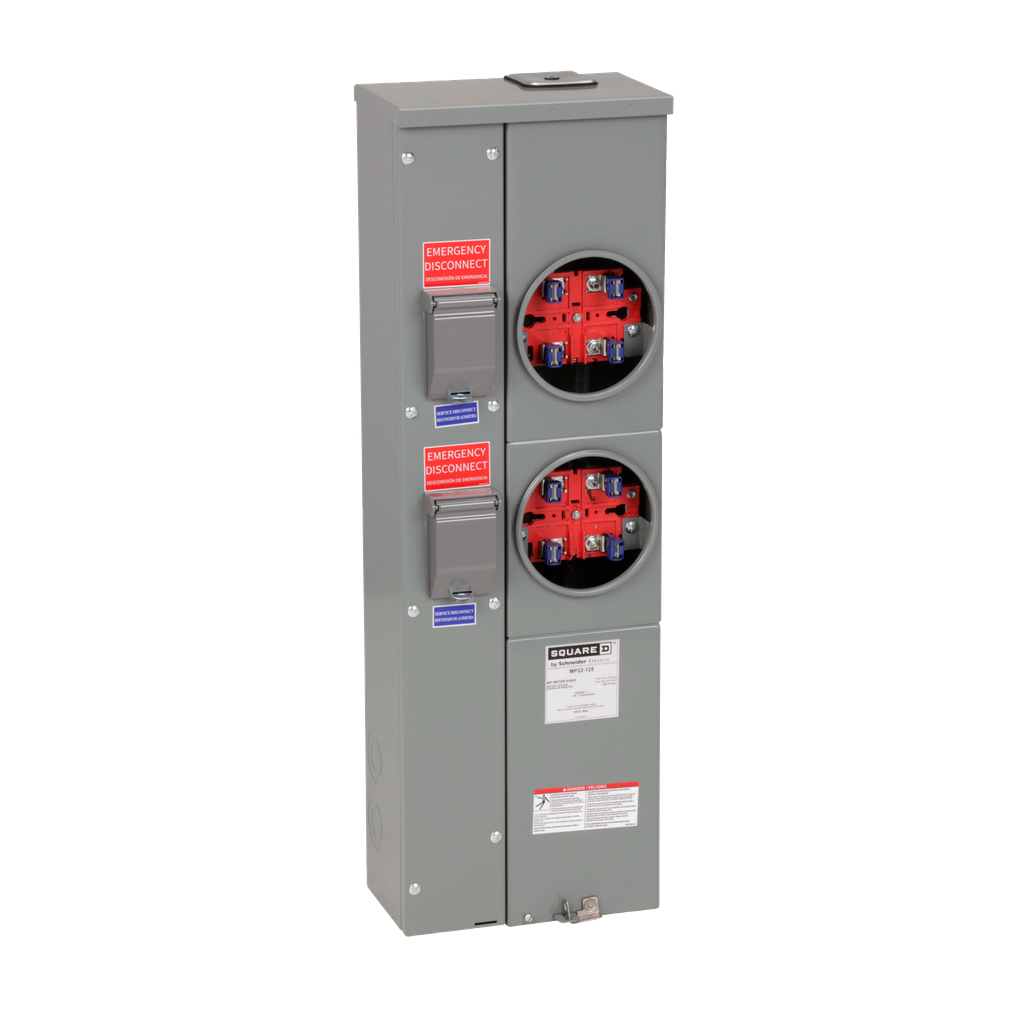

MP22125 – Meter center, MP Meter-Pak, 2 sockets, no bypass, 4 jaws, 200A bus, 125A max breaker rating, ringed
MP22125
Meter center, MP Meter-Pak, 2 sockets, no bypass, 4 jaws, 200A bus, 125A max breaker rating, ringed

Square D brand MP Meter Pak meter centers offer a wide range of multi metering applications. UL Listed NEMA Type 3R construction meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures. This creates lighter and more compact branch enclosures. This MP meter pak is rated at 125 A with 2 positions. It has a 200 A main bus. This system is ring type.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2012009
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation X
Circularity Profile N/A
Eu Rohs Directive Compliant
Country of Origin United States
Width 12.28 in
Height 37.50 in
Main Type Main Lugs
Meter Socket Rated Current 125 A
Number Of Meter Sockets 2
Product Or Component Type Meter Center
Number Of Jaws 4
Meter Socket Type ringed
Product Certifications UL Listed
Service Feed Location
  • UG
  • OH
Height 37.50 in
Range Of Product Meter-Pak
[Ue] Rated Operational Voltage 120/240 V AC
Bypass Type no bypass
Bus Rated Current 200 A
Phase 1 phase
Main Rated Current 200 A
Nema Degree Of Protection NEMA 3R
Product Mounting surface
Material aluminium: busbar
Enclosure Material steel
Awg Gauge
  • AWG 4...250 kcmil 1 aluminium
  • AWG 4...250 kcmil 1 copper
Width 12.28 in
Wiring Configuration 3-wire
Depth 7.28 in
Warranty 18 months
