MMSK2

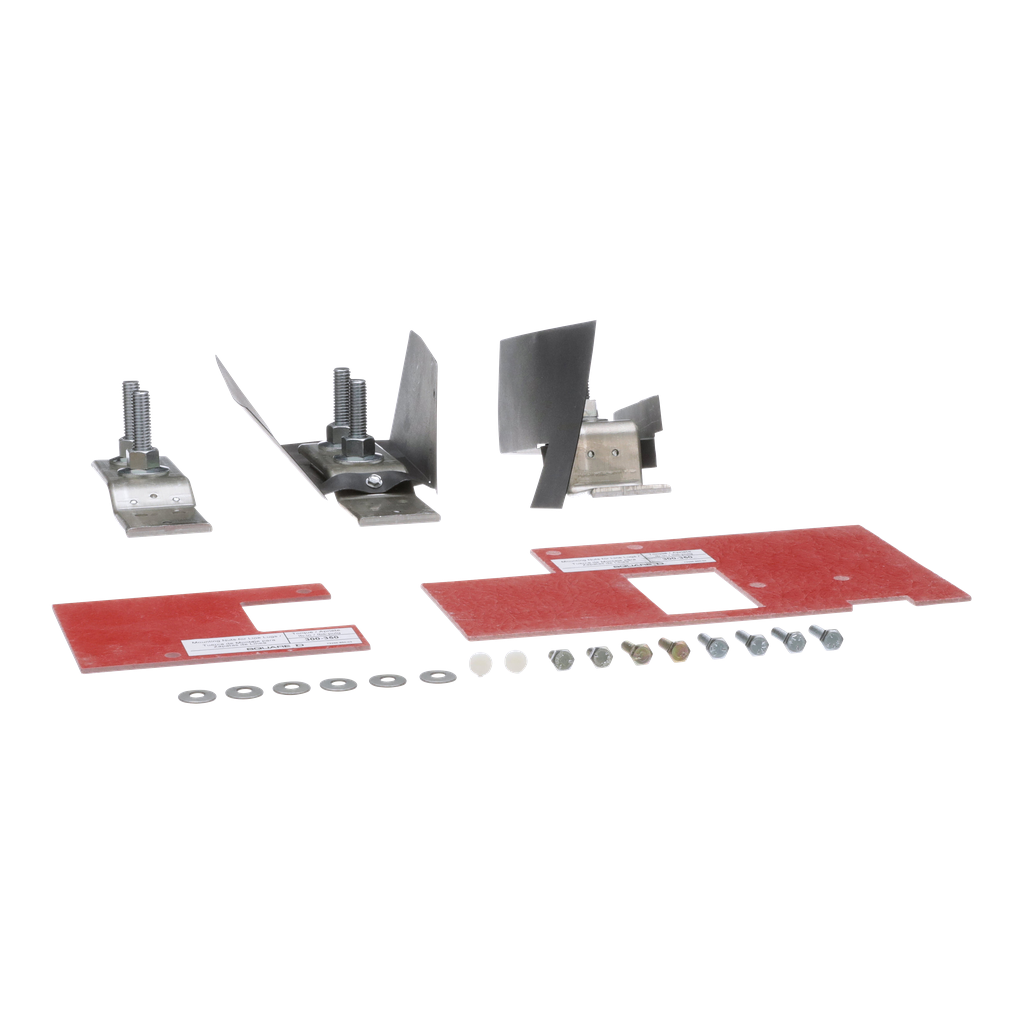

MP Meter Pak, landing pads for lugs kit, three pad per kit
MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. This kit is for 3 through 6 position, 125 A and 200 A MP meter devices. This MP accessory consists of three landing pads for lugs. Each pad is rated 600 A maximum. These landing pads are UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 7.5 in |
| Product Destination | lug |
| Quantity Per Set | set of 3 |
| Depth | 5 in |
| Country of Origin | United States |
| Height | 7.5 in |
| Range Of Product | MP meter-pak |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | pad kit |
Documents
- Metering Equipment: Section 2 - Digest 179 (2024) - Metering-Equipment-Digest-Catalog-0100CT2401-SEC-02 (pdf)
- Square D MP Meter-Pak Meter Centers Catalog - 4141CT0701 (pdf)
- Square D EZ Meter-Pak Meter Centers Catalog - 4100CT0701 (pdf)
- Digest Catalog 02: Metering Equipment - 0100CT1901_SEC-02 (pdf)
- Spec Sheet
- Lug Landing Pads - 73296-707-02 (pdf)
