MH80WP

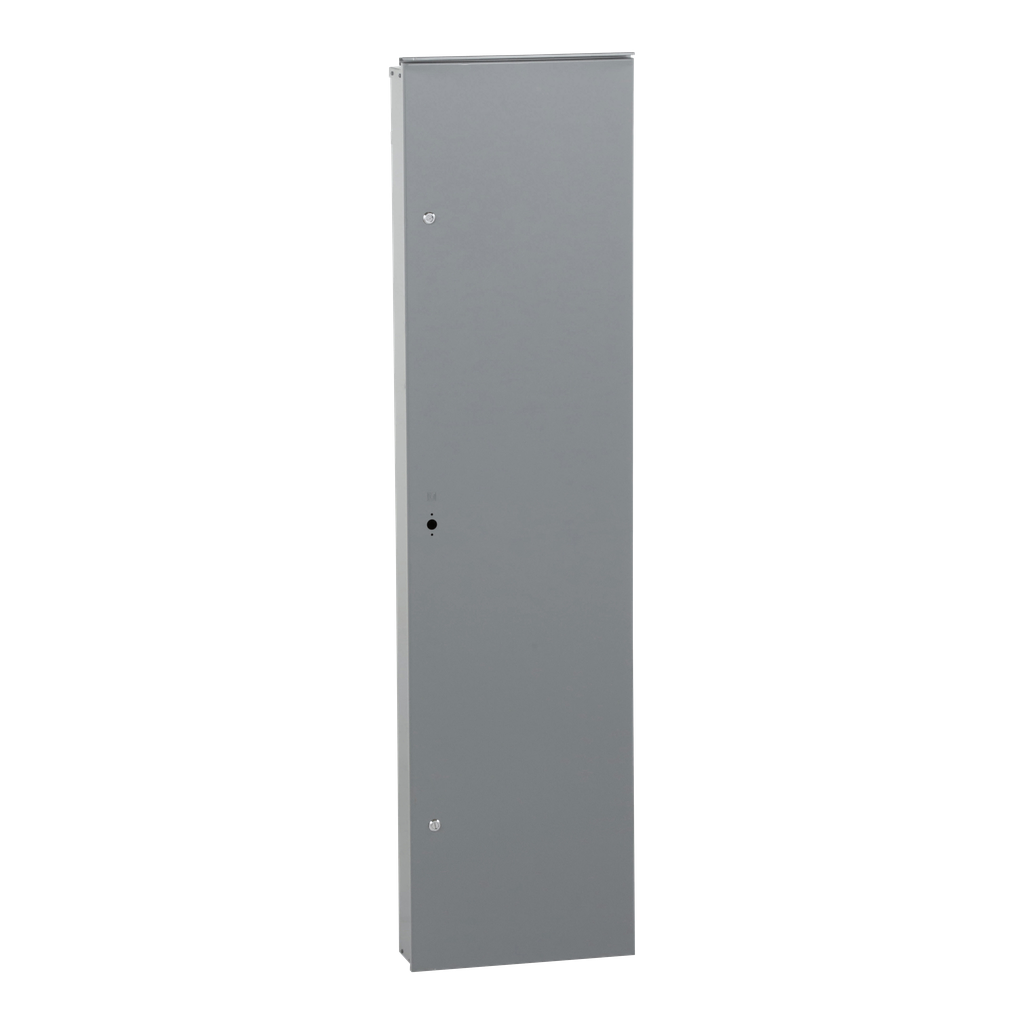

Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 80in H x 6.5in D
NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ and NF Panelboards provide 200% rated neutrals for nonlinear loads. NQ and NF Panelboards are convertible from main lug to main breaker. NQ and NF Panelboards have many different options for your enclosure box. This enclosure box is rated as a type 3R/5/12. The dimensions for this box are 20 x 80 x 6.50 in. NQ and NF Panelboard interiors are field convertible to top or bottom feed. NQ and NF Panelboards are suitable for use as service equipment. Panelboard enclosure box is UL listed and CSA certified by UL.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | cULus |
|---|---|
| Nema Degree Of Protection | NEMA 3R/5/12 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1404010EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 2032 mm |
| Device Mounting | surface |
| Enclosure Material | steel |
| Width | 508 mm |
| Depth | 165 mm |
| Country of Origin | Mexico |
| Width | 508 mm |
| Height | 2032 mm |
| Product Or Component Type | enclosure |
Documents
- NF/NFOM Panelboards Installation Instructions and User Guide (80043-741) - 80043-741-03 (pdf)
- MH Weatherproof Enclosure Installation Instructions - 80043-771-01 (pdf)
- NQ, NF, I-Line and QMB Panelboard Products - NQ+NF+and+I+line+and+QMB+Panels+final+-English+ (pdf)
- Spec Sheet
- Panelboards: Section 9 - Digest 179 (2024) - Panelboards-Lighting-Digest-Catalog-0100CT2401-SEC-09 (pdf)
- Square D NF Circuit Breaker Panelboards Catalog - 1670CT0701 (pdf)
- Digest Catalog 09: Panelboards - 0100CT1901_SEC-09 (pdf)
- Square D NQ Circuit Breaker Panelboards Catalog - 1640CT0801 (pdf)
