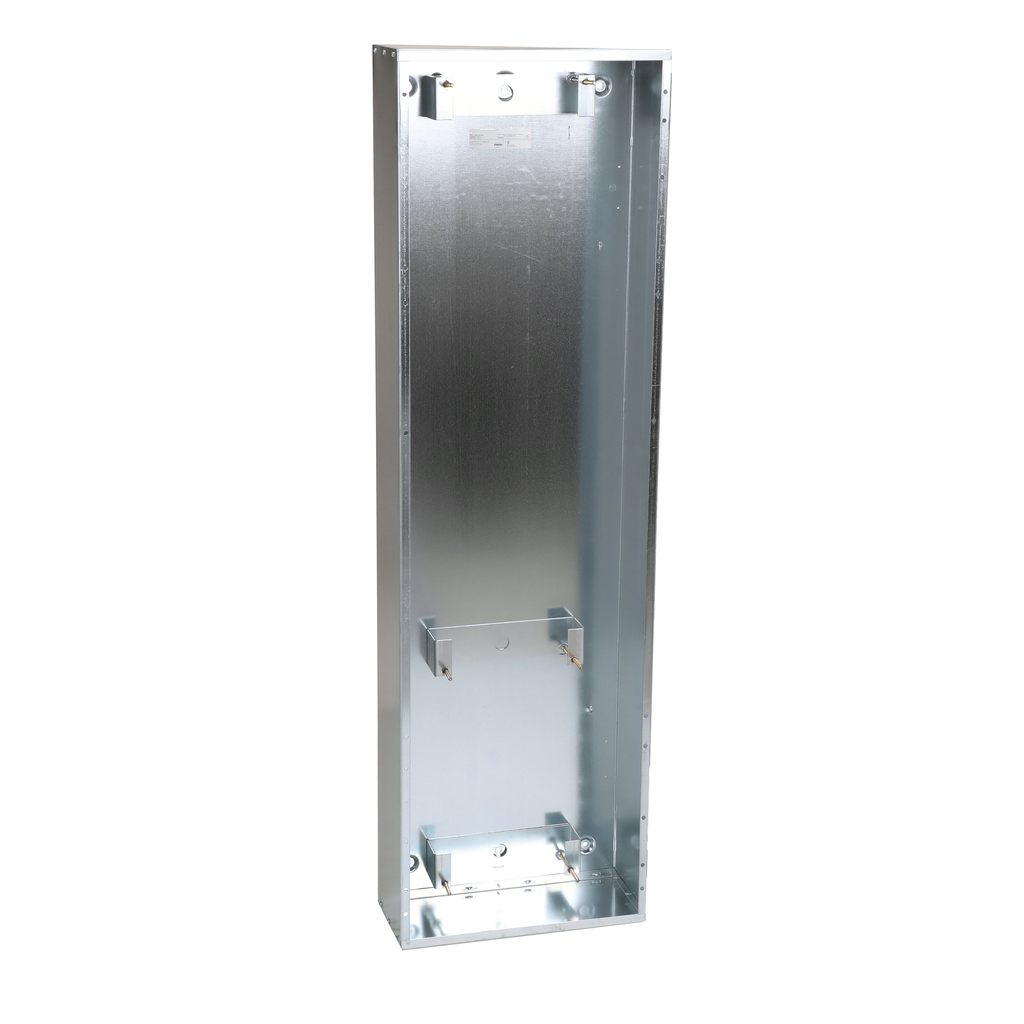

Enclosure box, NQ and NF panelboards, NEMA 1, 20in W x 68in H x 8.75in D
NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ and NF Panelboards provide 200% rated neutrals for nonlinear loads. NQ and NF Panelboards are convertible from main lug to main breaker. NQ and NF Panelboards have many different options for your enclosure box. This enclosure box is rated as a type 1 with blank end walls. The dimensions for this box are 20 x 68 x 8.75 in. NQ and NF Panelboard interiors are field convertible to top or bottom feed. NQ and NF Panelboards are suitable for use as service equipment. Panelboard enclosure box is UL listed and CSA certified by UL.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Width | 20 in |
| Height | 68 in |
| Product Or Component Type | enclosure |
| Height | 68 in |
| Enclosure Material | steel |
| Width | 20 in |
| Depth | 8.75 in |
| Product Certifications | cULus |
| Nema Degree Of Protection | NEMA 1 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
Documents
- NF/NFOM Panelboards Installation Instructions and User Guide (80043-741) - 80043-741-03 (pdf)
- MH Weatherproof Enclosure Installation Instructions - 80043-455-04 (pdf)
- Spec Sheet
- Panelboards: Section 9 - Digest 179 (2024) - Panelboards-Lighting-Digest-Catalog-0100CT2401-SEC-09 (pdf)
- Square D NF Circuit Breaker Panelboards Catalog - 1670CT0701 (pdf)
- Digest Catalog 09: Panelboards - 0100CT1901_SEC-09 (pdf)
