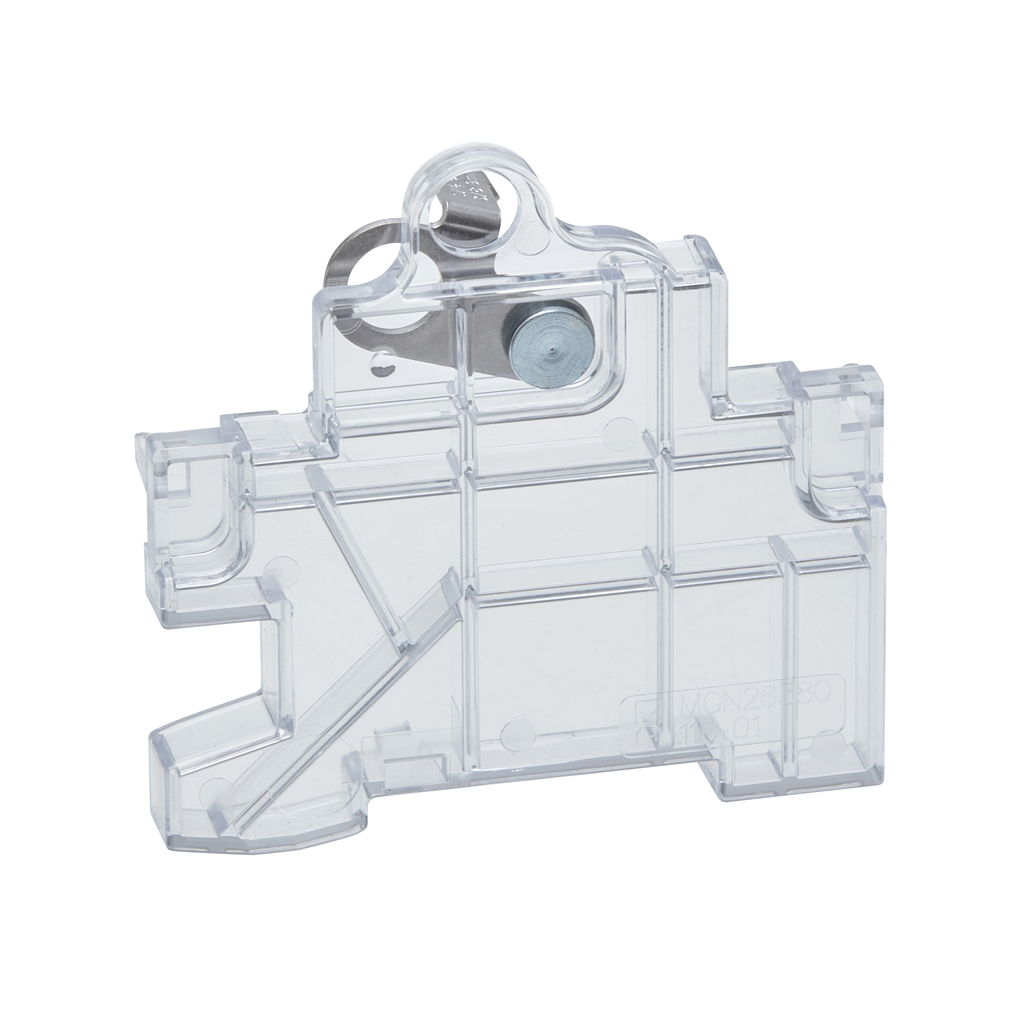

MGN26380
left padlocking device, Multi9
This Multi9 accessory is a padlocking device. It is dedicated to Multi9 C60 circuit breaker in order to padlock it in open position. It is left-hand mounting on it, directly attached to it, and cannot be lost by consequence. This product is suitable with IEC/EN 60947-2 standard compliant disconnection.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Width | 85.2 mm |
| Height | 87.2 mm |
| Weight | 0.034 kg |
| Accessory / Separate Part Category | locking accessory |
| Quantity Per Set | set of 1 |
| Product Or Component Type | padlocking device |
| Range | Multi9 |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Free Of Svhc | Yes |
| Height | 87.2 mm |
| Keylock Destination | toggle |
| Locking Options Description | fixed |
| Width | 85.2 mm |
| Key Locking Position | on the left |
| Depth | 22.2 mm |
| Net Weight | 0.034 kg |
| Warranty | 18 months |
Documents
- Multi9 - Catalog 16 july 2024 - Multistandard protection for OEM applications - LVCATM9OEM_EN+(web) (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
- Spec Sheet
- multistandard protection for oem applications brochure multi9 - 999-19877142_Multi9_Brochure_2022 (pdf)
