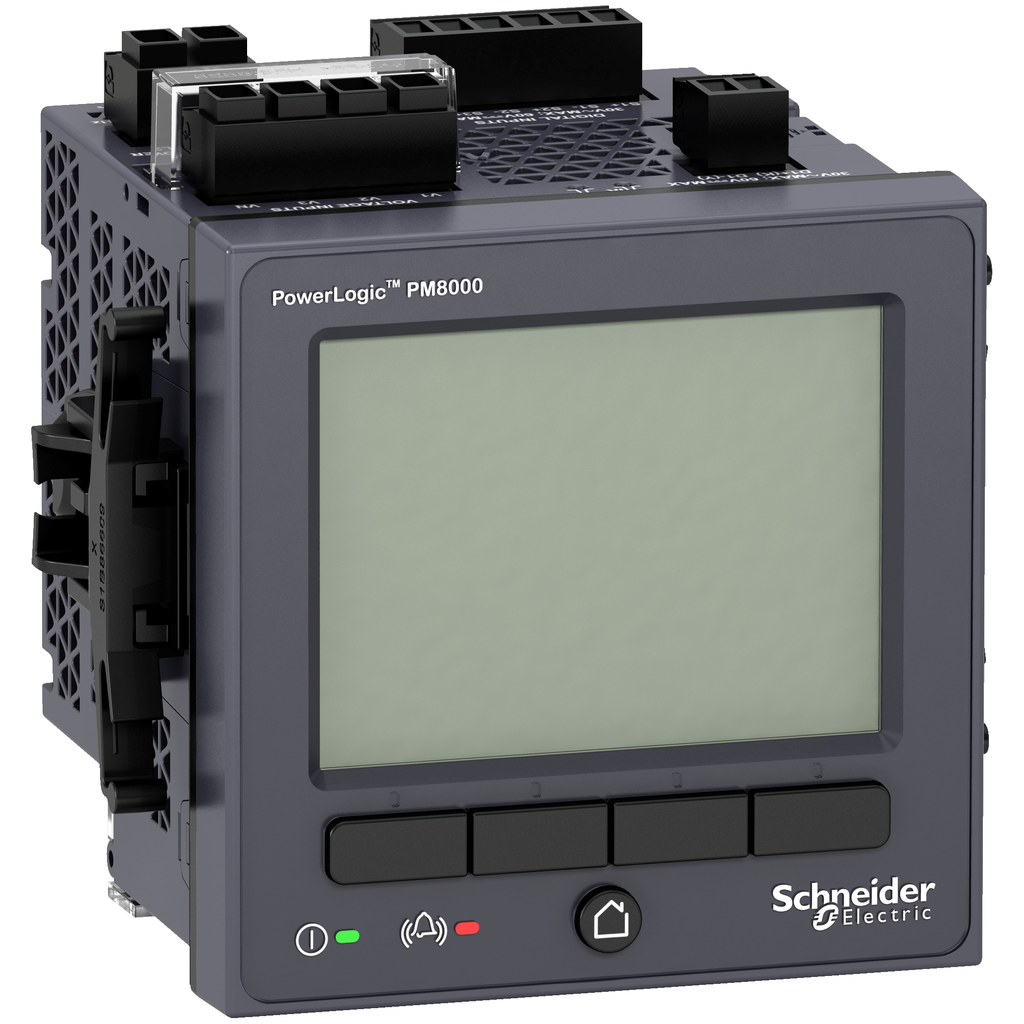

METSEPM8140 - Power quality meter, PowerLogic PM8000, Essential, integrated display, 64MB, 128s/c

METSEPM8140

Power quality meter, PowerLogic PM8000, Essential, integrated display, 64MB, 128s/c

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	-25-70 °C
Electromagnetic Compatibility	electrostatic discharge conforming to IEC 61000-4-2 radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 electrical fast transient/burst immunity test conforming to IEC 61000-4-4 surge immunity test conforming to IEC 61000-4-5 conducted RF disturbances conforming to IEC 61000-4-6 magnetic field at power frequency conforming to IEC 61000-4-8 voltage dips and interruptions immunity test conforming to IEC 61000-4-11 immunity to impulse waves conforming to IEC 61000-4-12 conducted and radiated emissions conforming to EN 55022 conducted and radiated emissions conforming to EN 55011 conducted and radiated emissions conforming to FCC part 15 conducted and radiated emissions conforming to ICES-003 conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579 surge withstand conforming to IEEE C37.90.1
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	5-95 %
Ip Degree Of Protection	IP54 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529
Operating Altitude	9842.52 ft (3000 m)
Communication Network Type	IPv6 (internet protocol)
Network Frequency	50 Hz 60 Hz
Communication Port Support	ETHERNET screw terminal block RS485
Power Quality Analysis	EN 50160 2010 compliance report IEEE 519 2014 compliance report up to the 63rd harmonic harmonic distortion waveform capture voltage sag and swell detection programmablity (logic and math functions) IEC 62586 power quality monitoring
Height	96 mm
Measurement Voltage	57-400 V AC 42...69 Hz between phase and neutral 100-690 V AC 42...69 Hz between phases
Sampling Rate	128 samples/cycle
Standards	IEC 61557-12 IEC 62052-11 IEC 62053-24 IEC 62053-22 IEEE 1588 IEC 62586-2 IEC 61326-1
Memory Capacity	64 MB
Number Of Outputs	1 pulse
Product Certifications	CE cULus N998
Type Of Measurement	current voltage total frequency active and reactive power total apparent power total power factor total active and reactive power per phase, rms apparent power per phase, rms power factor per phase, rms
Communication Port Protocol	Modbus RTU 115 kbauds - 2-wire ION 115 kbauds - 2-wire DNP3 IEC 61850 Modbus TCP/IP Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s RSTP 801.1d 2004
Frequency Measurement Range	42-69 Hz
Communication Service	SMTP e-mail notification RSTP support NTP time synchronization DHCP PTP time synchronization
Power Consumption In Va	16 VA 230 V AC
Display Resolution	320 x 240 pixels QVGA
Number Of Inputs	3 digital 30 V AC 3 digital 60 V DC
Net Weight	581 g
Depth	77.5 mm
Measurement Current	50-10000 mA
Information Displayed	voltage current frequency power energy consumption harmonic distortion
[Us] Rated Supply Voltage	90...415 V AC 45...65 Hz +/- 10 % 110...415 V DC +/- 10 %
Mounting Mode	flush-mounted
Measurement Accuracy	current +/- 0.1 % voltage +/- 0.1 % active energy +/- 0.2 %
Mounting Support	framework
Poles Description	3P + N 3P 1P + N
Data Recording	min/max of instantaneous values waveform logs sequence of event recording time stamping alarm logs trending/forecasting sag and swell logs harmonics logs GPS synchronisation data logs event logs 10 data recorders
Line Rated Current	1 A 5 A 10 A
Cybersecurity	enable/disable communication ports password protection Syslog protocol support robust security logs port hardening
Isolation Voltage	III400-690 V conforming to IEC 61010-1:ed. 3 III400-690 V conforming to EN 61010-1:ed. 3 III347-600 V conforming to UL 61010-1:ed. 3 III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Analogue Input Type	voltage (impedance 5 MOhm) current (impedance 0.3 mOhm)
Web Services	customizable home page file upload/download via FTP file upload/download via SFTP web server alarm notification by e-mail viewing of captured waveform (FTP) viewing of captured waveform (web) HTTPS server
Width	96 mm
Display Type	colour TFT LCD
Device Application	power monitoring WAGES metering
Accuracy Class	class 0.2S active energy IEC 62053-22 class 0.2 active energy ANSI C12.20 class 0.2 active power IEC 61557-12 class 0.5S reactive energy IEC 62053-24 class 0.5 power factor IEC 61557-12 class 0.2 voltage IEC 61557-12 class 0.2 current IEC 61557-12
Installation Category	III
Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1406023EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1406023EN
Eu Rohs Directive	Compliant with Exemptions
Width	96 mm
Height	96 mm
Weight	581 g
Variant	essential
Product Or Component Type	power meter
Product Name	PowerLogic PM8000
Range	PowerLogic
Device Short Name	PM8140
